GF91.25-P-2001SXA Dynamic Filling/Emptying of Air In the Air Cushions In the Multicontour Seat, Function

GF91.25-P-2001SXA Dynamic Filling/Emptying Of Air In The Air Cushions In The Multicontour Seat, Function
- with CODE (406) Rear multicontour seat up to Model Year 8

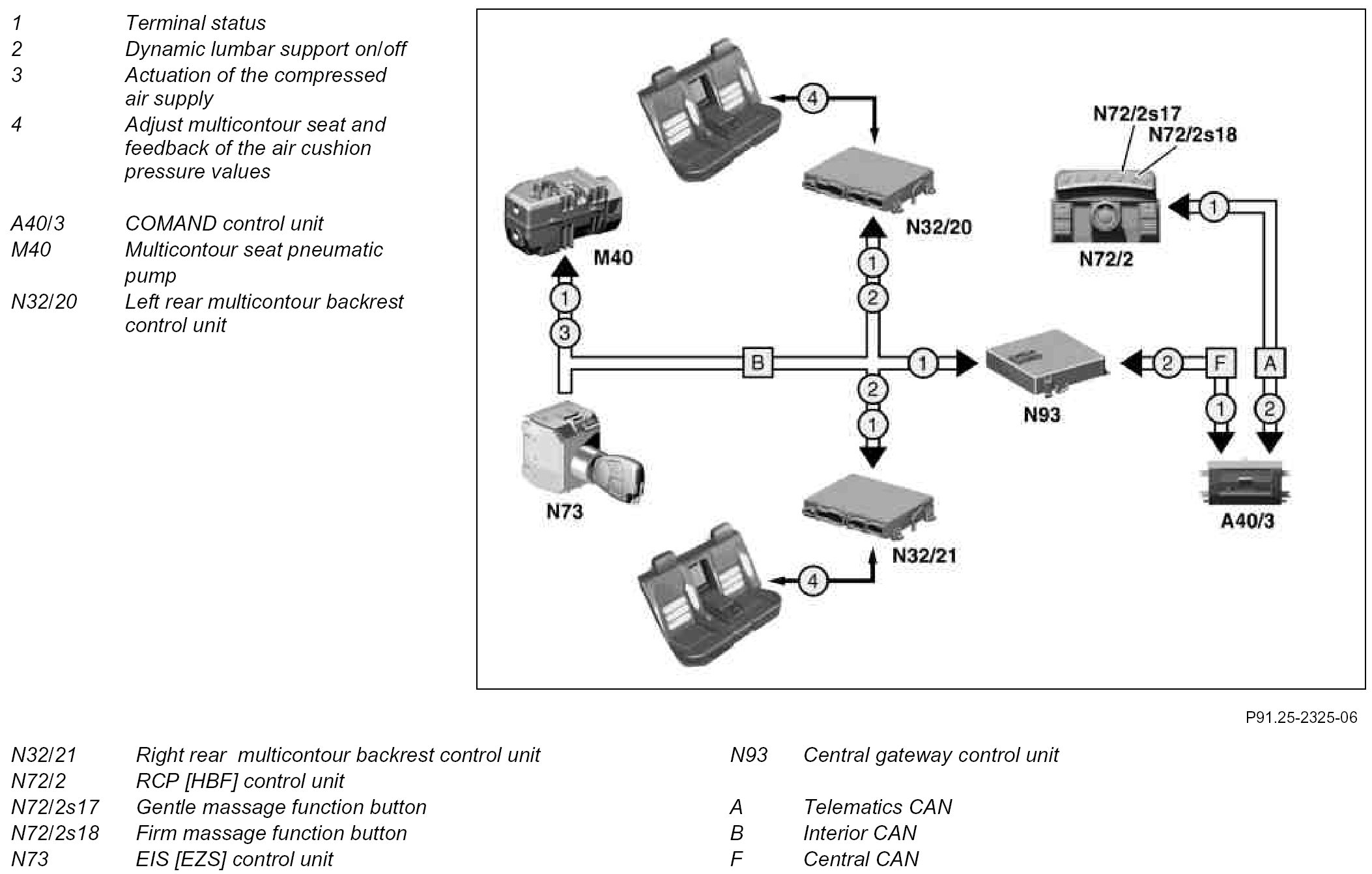

Component Identification:

Function requirements:
^ C. 15R On

Function
In order to prevent tensions in the back during long trips, the multicontour seats (MCS) are equipped with a function for dynamic filling/purging of the air cushions (massage).

There is a choice of two massage variants:
^ gentle massage
^ firm massage

By pressing the gentle massage function button or the firm massage function button in the RCP [HBF] control unit, the massage function is controlled via the particular rear multicontour backrest control unit.
