GF91.29-P-0004-03SX Electric Seat Adjustment (ESA (ESV)), Block Diagram
GF91.29-P-0004-03SX Electric Seat Adjustment (ESA (ESV)), Block Diagram

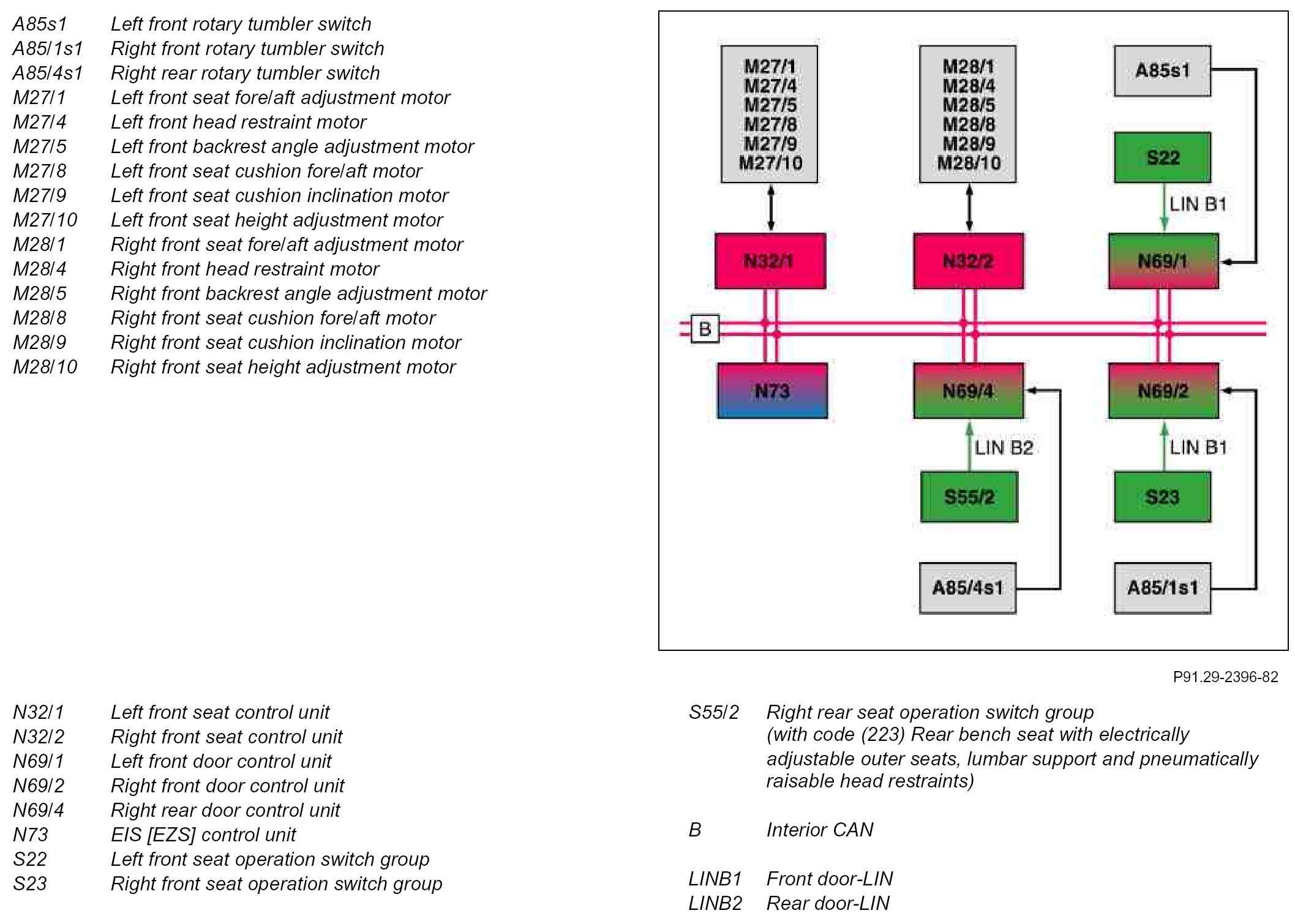

GF91.29-P-0004-03SX Electric Seat Adjustment (ESA [ESV]), Block Diagram
Component Identification:
