GF91.29-P-2004SXA Store Seat Position, Function

GF91.29-P-2004SXA Store Seat Position, Function
- with CODE (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints
- with CODE (276) Memory in rear

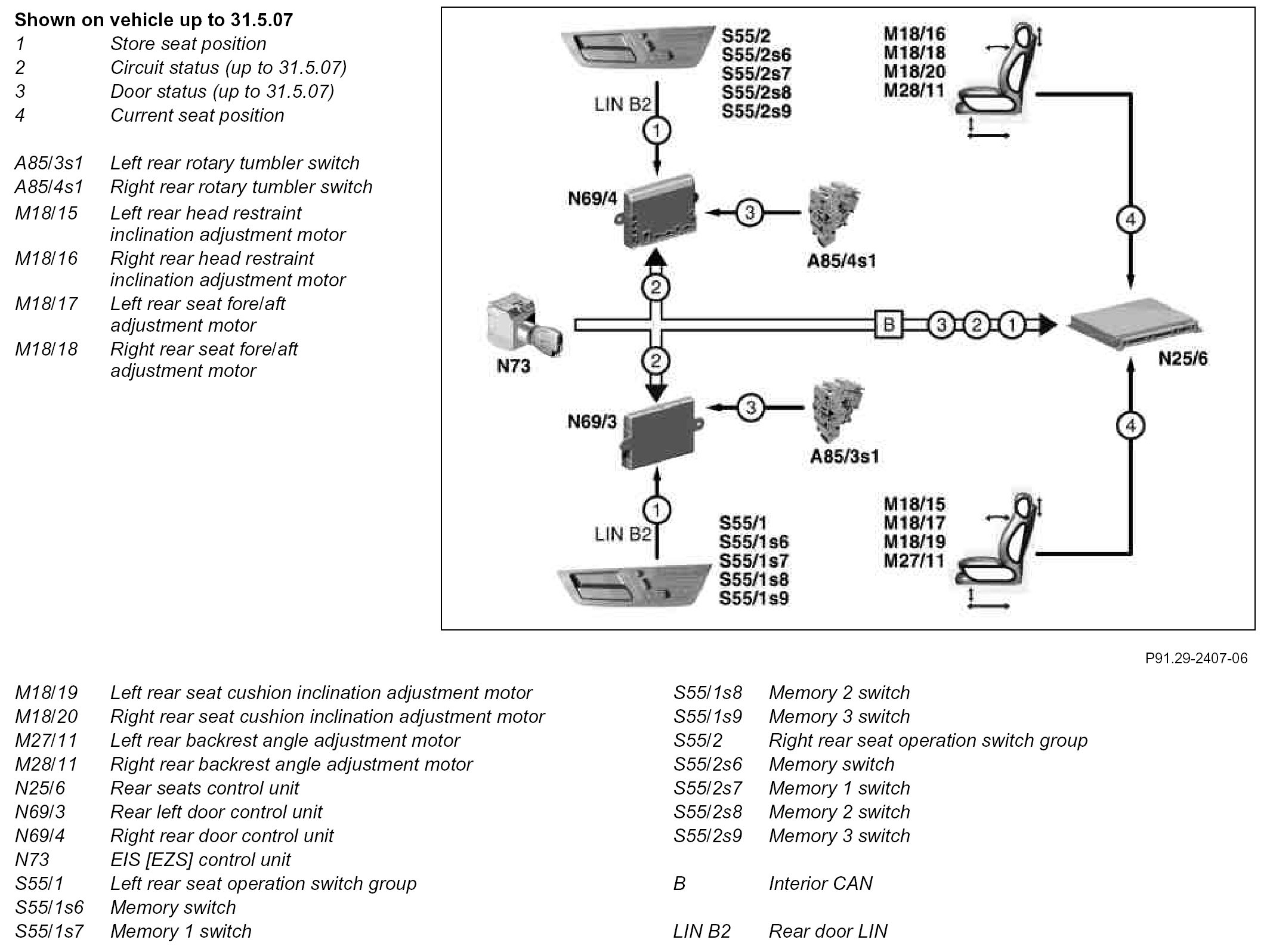

Component Identification:

Function requirements
^ Circuit 15R On or respective door open (up to 31.5.07)

Function
Three seat adjustments each can be stored for left and right.

There are two means of storing the positions:
^ Press and hold the memory switch and parallel to this operate memory 1, 2 or 3 switch briefly or
^ Press the memory switch for at least 40 ms and briefly press the memory 1, 2 or 3 switch within 3 s.

The request is read in over the rear door LIN from the respective door control unit and placed on the interior CAN. The seat adjustments are stored in the rear seats control unit.
