GF91.29-P-2015SX Adjust Front Passenger Seat, Function
GF91.29-P-2015SX Adjust Front Passenger Seat, Function
- with CODE (275) memory package (driver seat, steering column, mirrors)
- with CODE (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints
Function requirements
^ Circuit 15R On or respective vehicle door open (up to 31.5.07)
Driver-side control point

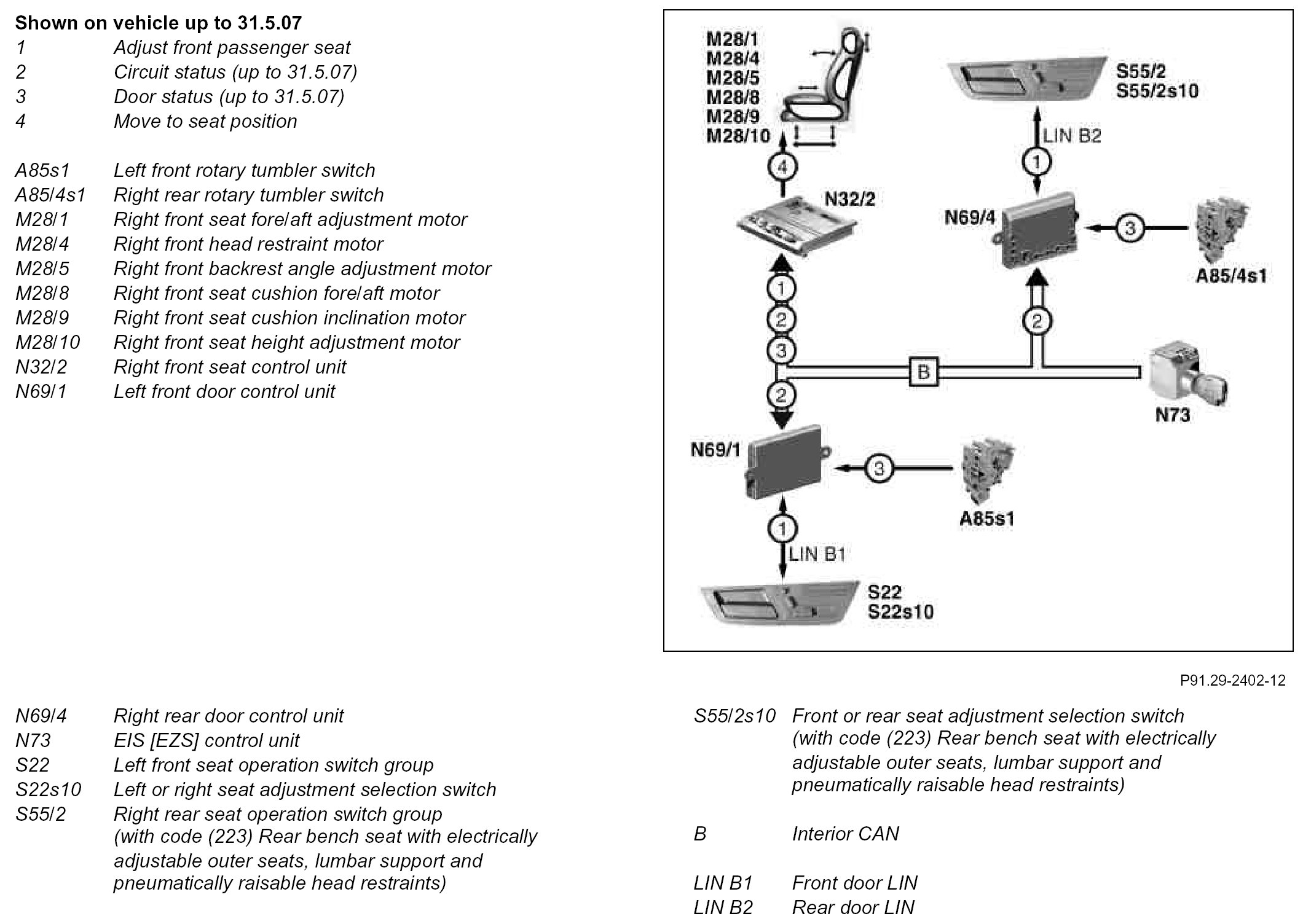

By actuating the seat adjustment selection switch in the left front seat operation switch group, the adjustment request is read in over the front door LIN by the left front door control unit and sent over the Interior CAN to the right front seat control unit. After actuating the seat adjustment selection switch, the front passenger seat adjustment is active for 10 s and this is indicated by the light emitting diode (LED) in the seat adjustment selection switch.
The following adjustment functions are possible:
^ Head restraint adjustment
^ Backrest adjustment
^ Seat height adjustment
^ Seat lengthwise adjustment
^ Seat cushion fore/aft adjustment
^ Seat cushion inclination adjustment
Rear control point (with code (223) Rear bench seat with electrically adjustable outer seats, lumbar support and pneumatically raisable head restraints)
By actuating the seat adjustment selection switch in the right rear seat operation switch group, the adjustment request is read in over the rear door LIN by the right rear door control unit and sent over the Interior CAN to the right front seat control unit. After actuating the seat adjustment selection switch, the front passenger seat adjustment is activated for 10 s and this is indicated by an LED in the seat adjustment selection switch.
The following adjustment functions are possible:
^ Head restraint adjustment
^ Backrest adjustment
^ Seat height adjustment
^ Seat lengthwise adjustment
Adjustment requests from the right front door control unit have priority over requests from the left front door control unit or right rear door control unit.
