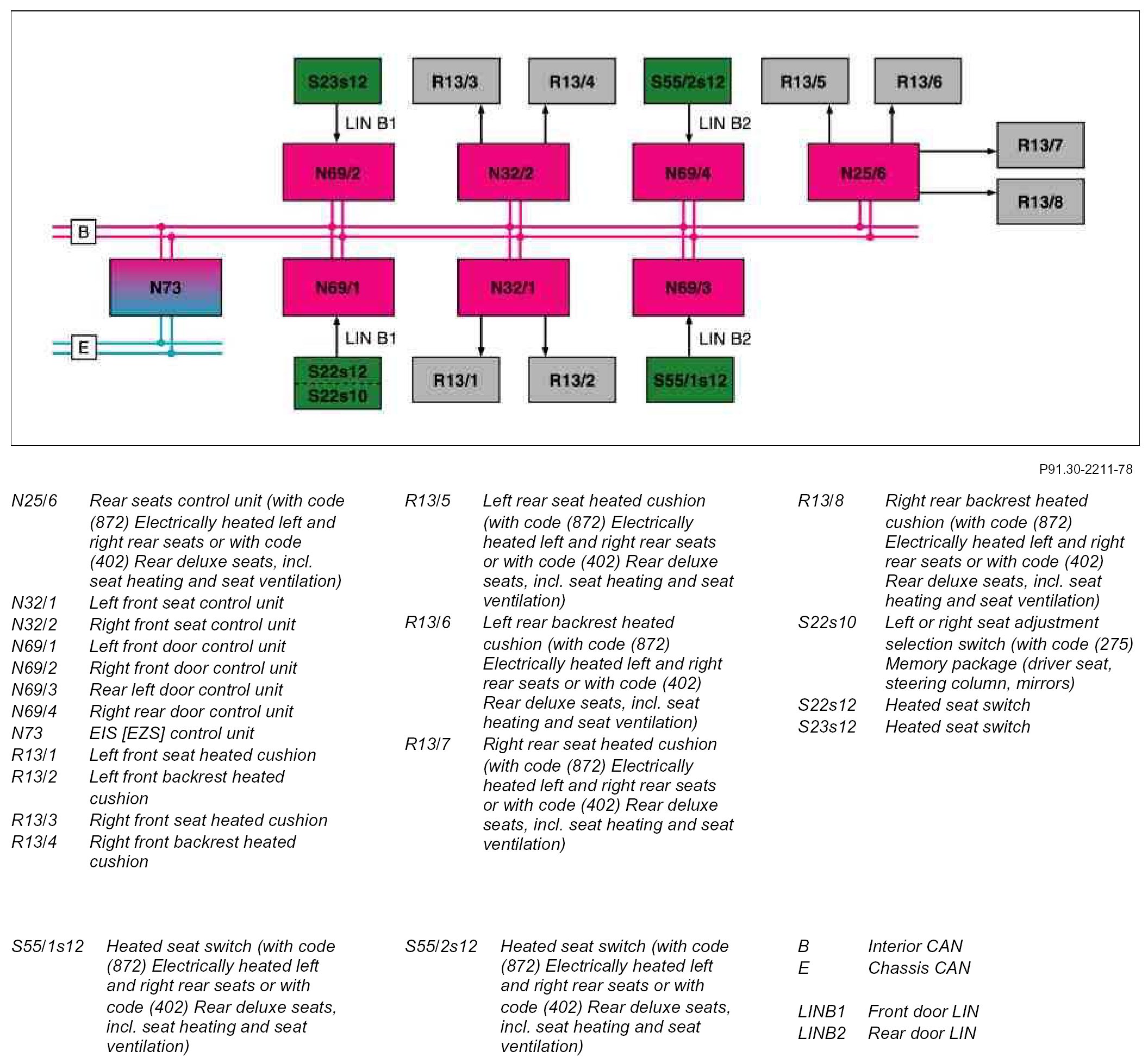

GF91.30-P-0003-03SX Heated Seats (HS) Block Diagram



GF91.30-P-0003-03SX Heated Seats (HS) Block Diagram
- with CODE (873) Heated left and right front seats
- with CODE (401) Front comfort seats, incl. seat heating and seat ventilation
- with CODE (872) Electric seat heater for left and right rear seats
- with CODE (402) Rear comfort seats, incl. seat heating and seat ventilation

Component Identification:
