GF83.50-P-3008SX Rear Air Conditioning Refrigerant Shutoff Valve, Component Description

GF83.50-P-3008SX Rear Air Conditioning Refrigerant Shutoff Valve, Component Description
- with CODE (582) Rear air conditioner

Component Identification:

Location

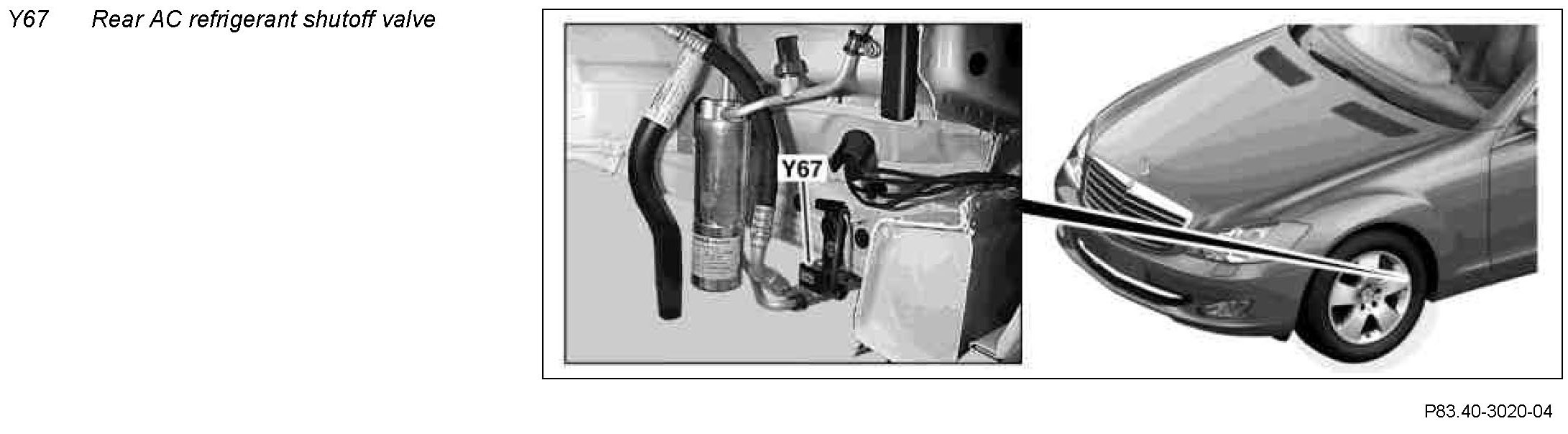

The refrigerant shutoff valve is located in the left front wheelhouse.

Task
Since only one refrigerant compressor (A9) is installed in the vehicle, the coolant flow to the rear evaporator is controlled via the refrigerant shutoff valve.

The AAC [KLA] control unit (N22/1) blocks the flow through the shutoff valve, if the rear air conditioning is switched off or before the evaporator of the rear air conditioning ices up.
