Drive Belt: Service and Repair



AR13.22-P-1202SX Remove/Install Poly V-Belt


Component Identification:

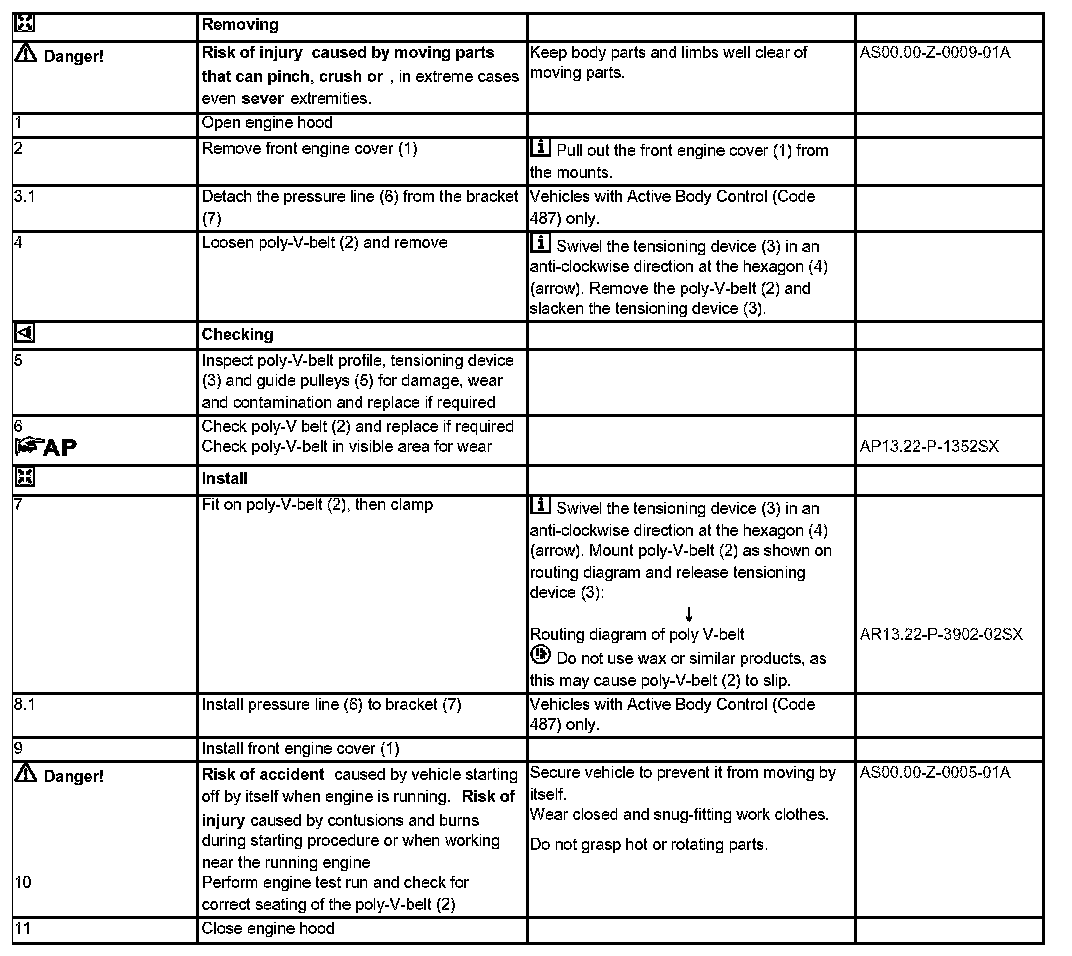

Steps 1 - 11:
