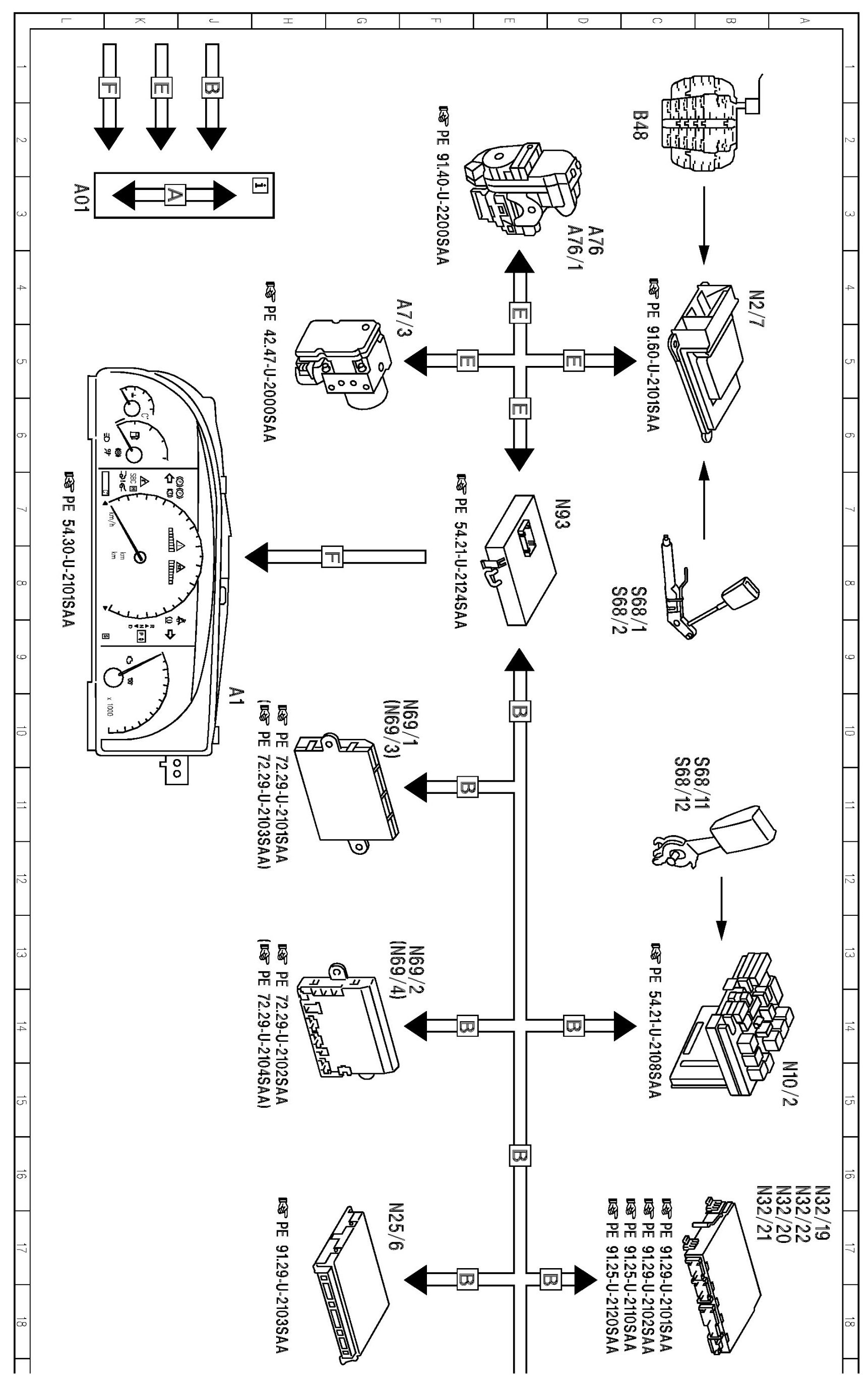

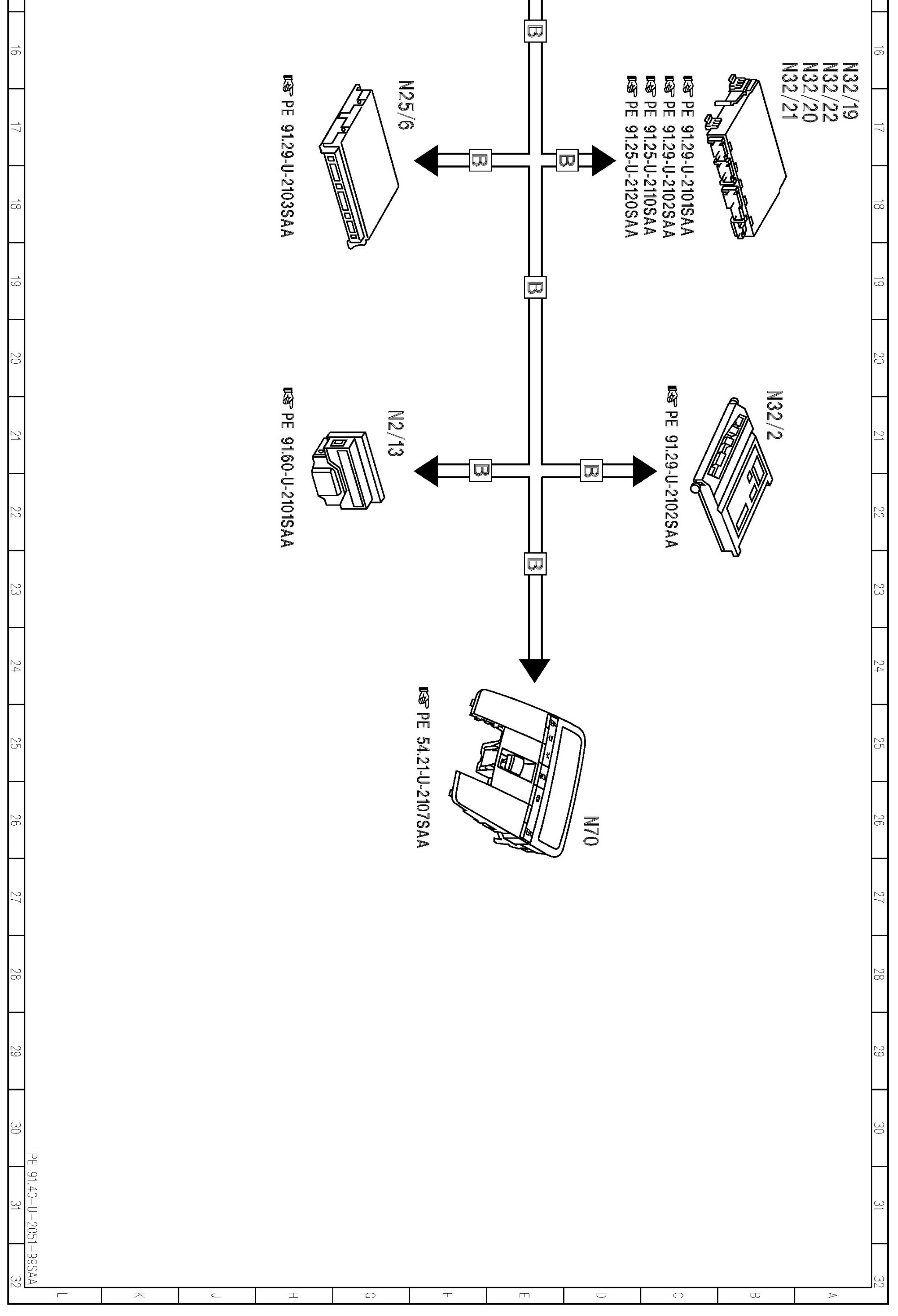

PE91.40-U-2051SAA Electrical Function Diagram For Pre-Safe System

PE91.40-U-2051SAA Electrical Function Diagram For Pre-Safe System

MODEL 221
- up to Model Year 2008















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
