A/C - Insufficient Or No Cooling

Date: September 17, 2008

Order No.: P-B-83.55/101a

Supersedes: P-B-83.55/101 dated May 14, 2007

Group: 83

Revision History

Revision Date Purpose

a 9/17/08 Warranty Information Updated

- 5/14/07 Initial issue

SUBJECT:
Model 221.171

Insufficient Cooling / Refrigerant Compressor Start-Up Malfunctioning

If you receive customer reports in the above model vehicles of Insufficient / no cooling with the air conditioning on, the refrigerant compressor may be contacting the upper section of the oil pan. This will result in no refrigerant being delivered. To resolve this issue, install shims at all three mounting points of the refrigerant compressor as outlined below:

1. Remove front and center engine compartment paneling. Refer to WIS document AR61.20-P-1105SX.

2. Remove poly V-belt. Refer to WIS document AR13.22-P-1202SX.

3. Remove three mounting bolts from the refrigerant compressor.

4. Install shims at mounting points. Install the mounting bolts and torque to 20 Nm.

Note:
Maximum total thickness of shim 2 mm. Do not install more than one shim at each mount point.

5. Install poly V-belt and verify the refrigerant compressor no longer contacts the upper section of the oil pan.

6. Reinstall front and center engine compartment paneling.

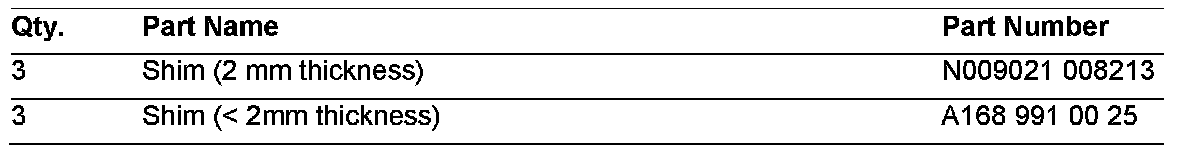

Parts Information

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on September 17, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table.
