Navigation System - Unable To View Map Screen
Date: July 17, 2006Order No.: P-B-82.85/489b
Supersedes: P-B-82.85/489a dated March 7, 2006
Group: 82
Revision History
Revision Date Purpose
b 7/17/06 Condition 1 (Step 1) and Condition 2 (Step 1) Updated/Part No. Updated
a 3/7/06 Condition 2 - Step 5 and 6 Updated
- 2/21/06 Initial issue
SUBJECT:
Model 221.171
Model Year 2007
Navigation: Unable to View Map Screen

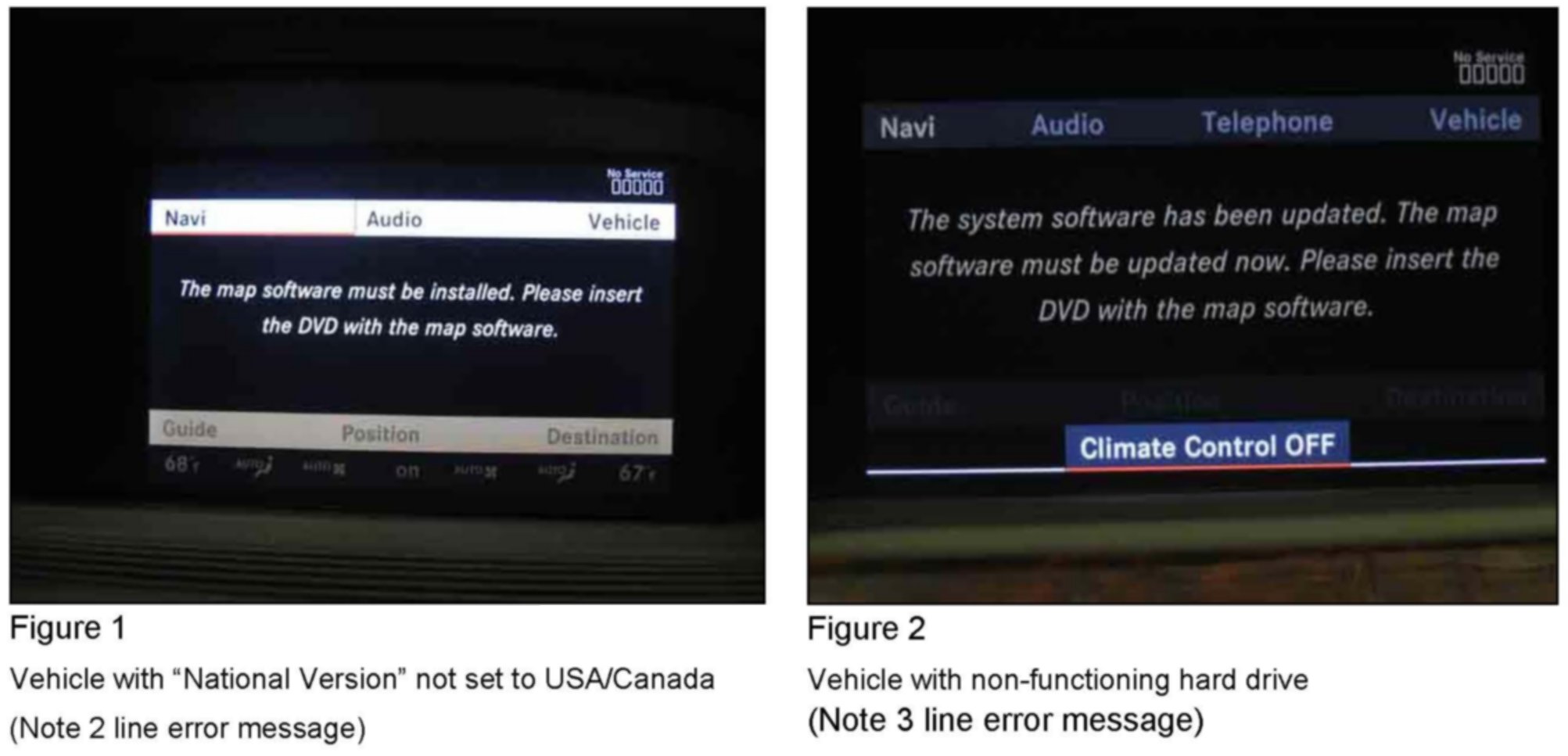

If you receive customer reports in the above model vehicle that when entering the navigation mode, there is an error message asking that a navigation DVD with map software be inserted instead, this may be caused by two separate issues. To assist in identifying the issue, go to the Navigation screen on the COMAND Head Unit and compare to Figures 1 and 2.
Condition 1 - National Version Not Set (Figure 1)
The "National Version" has not been set for COMAND Head unit installed in the vehicle.
Note:
A new head unit will exhibit this condition as well until the below procedure is performed.
1. Using Star Diagnosis 01/06 with AddOn ID 2006-01-27-0514 and AddOn ID 2006-02-13-0523 to 04/06 use the following procedure to set the version and bring up the preinstalled database on the hard drive.
Cars --> S-Class --> F3 --> 221 --> F3 --> F2 --> Control Units --> F3 --> Information and Communication --> F3 --> Audio, Video, Navigation and Telecommunication --> F3 --> COMAND --> F3 --> Control Unit Adaptations --> F3 --> Reading Coding and Change if Necessary --> F3 --> National Version --> F3 --> USA, Canada --> F5
Condition 2 - Non-Functioning Hard Drive (Figure 2)
The hard drive is non-functional in the COMAND Head Unit and the COMAND needs to be replaced.
1. Using Star Diagnosis 01/06 with AddOn ID 2006-01-27-0514 and AddOn ID 2006-02-13-0523 to 04/06 use the following procedure to variant code the head unit using the automatic takeover if possible.
Variant Coding with Automatic Takeover
Note:
Please use Automatic Takeover in Star Diagnosis if possible.
2. Use the following procedure to complete the variant coding and replacement of the COMAND Head Unit.
Cars --> S-Class --> F3 --> 221 --> F3 --> F2 --> Control Units --> F3 --> Information and Communication --> F3 --> Audio, Video, Navigation and Telecommunication --> F3 --> COMAND --> F3 --> Initial Start-up --> F3 --> Initial Start-up with automatic takeover or settings of previous control unit --> F3 --> F2 --> F3 (To read settings of existing head unit)
3. Replace head unit, per WIS document AR82.85-P-1100SX
4. Continue with SDS path: F3 (to transfer settings to new head unit) --> Hardisk:Version 01/2006(2005-12-12) --> F3 (Control module programming) --> F2 (Coding) --> F2 --> F9 (To erase fault codes) --> "Enter repair order, Name of tester, and operation number" --> F2
5. Check that the Central Gateway (CGW) is coded for the original vehicle option list:
a. Follow the path: Control Units --> Information and Communication --> Audio, video, navigation and telematics --> COMAND --> control unit adaptation --> Read coding and change if necessary --> Automatically adjust vehicle-specific and special equipment-specific codings.
Note:
This screen will display a list of coding options that are set automatically and a list of options that must be coded directly into the CGW.
b. Press F2 to restart the optical ring
c. Read and verify the coding settings which are now adopted from the CGW.
d. Exit out of SDS and disconnect from the diagnosis port
e. Power up the COMAND and use the Central COMAND Controller and check that all options are available.
6. Follow instructions "Condition 1 - National Version Not Set" for setting the national version.
Parts Information
In Case of Warranty, use the table.
