Body - Sunroof Sunshade Slides Too Easily
Date: April 27, 2009Order No.: P-B-77.20/80
Supersedes:
Group: 77
SUBJECT:
Model 221.171/176, Up to VIN A005500
Sunroof Shade Slides Open/Closed without Enough Resistance
If you receive customer reports in the above model vehicles of the sunroof shade sliding open/closed while braking or accelerating, the cause may be that the clamping force of the sliding shade is too low. To resolve, replace the sliding shoes with the parts specified below.

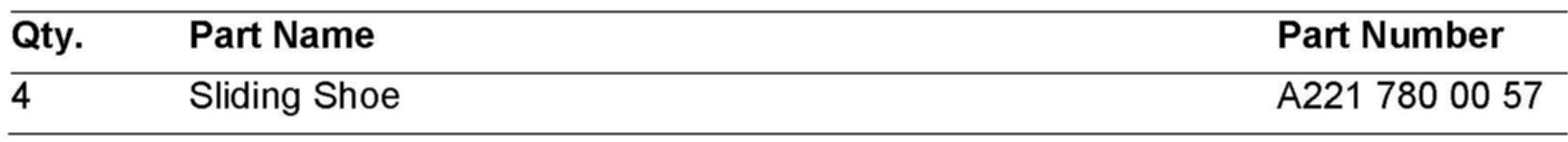

Parts Information
Note:

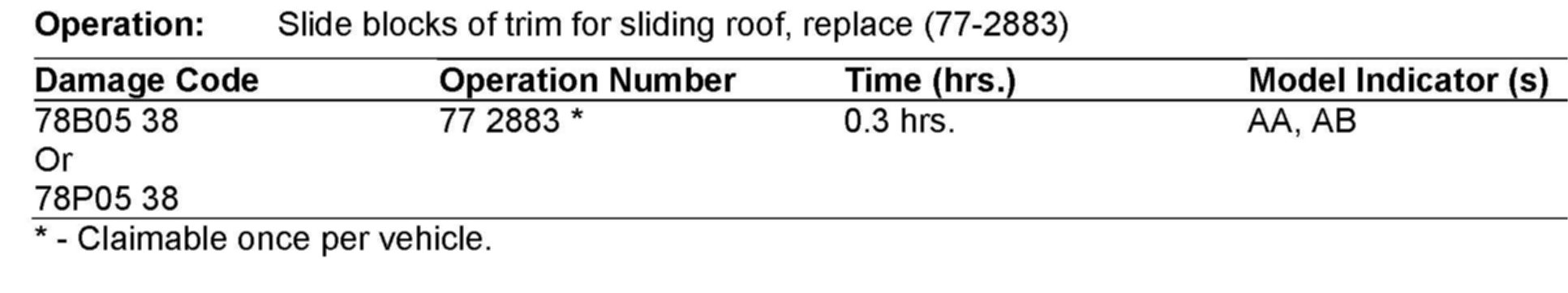

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on April 27, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.
In Case of Warranty, use the table above.
