Campaign - A/C Service Valve Replacement
Campaign No. 2006090004, September 2006FILE:
SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER
TO: ALL MERCEDES-BENZ CENTERS
SUBJECT:
MODEL 221, MODEL YEAR 2007
REPLACE AIR CONDITIONING CONDENSER SERVICE VALVE
This service campaign has been initiated because DCAG has determined that on the affected vehicles (see VIN range below) the air conditioning service valve O-ring may be porous and not to specification. Dealer will install a new air conditioning service valve.
Please review the Effective Serial Number chart located below, and if necessary, repair the subject vehicles during the vehicle's next service.
Prior to performing this Service Campaign:
- Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.
- Please review the entire Service Campaign bulletin.
Approximately 877 vehicles are affected.

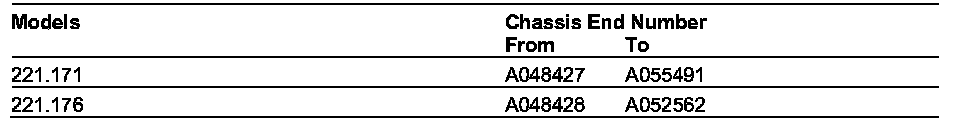

Effective Serial Number Range
NOTE:
Every vehicle in the VIN range may not be included in the campaign. VMI must always be checked before performing campaigns to verify that the campaign is required on a specific vehicle. VMI always overrides the bulletin in reference to a specific vehicle's inclusion in a particular campaign. Please also note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.
Procedure
1. Drain air conditioning; refer to WIS document AR83.30-P-1760SX.

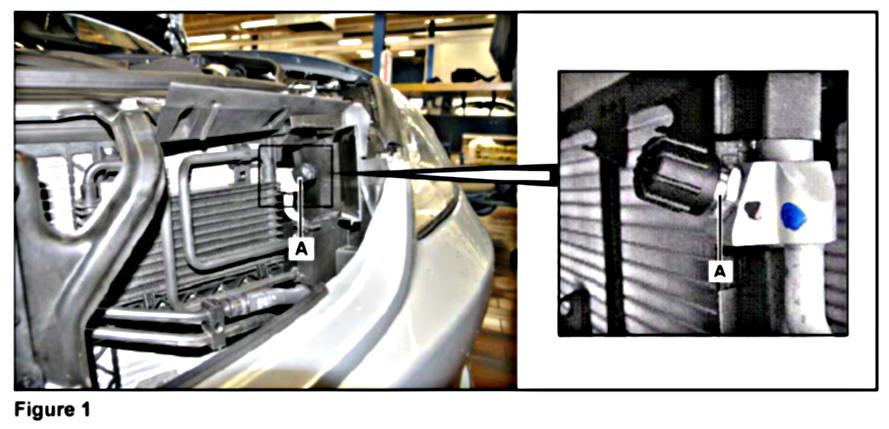

2. Replace A/C condenser service valve (A, Figure 1).
- Torque to 9 Nm.
3. Evacuate and refill air conditioning, again referring to WIS document AR83.30-P-1760SX.
Note (regarding above WIS document):
It is not necessary to replace the fluid reservoir (step 4.1 in WIS document) as part of this repair because the refrigerant circuit is only opened momentarily during the procedure.
- Verify proper system operation and check for leaks.

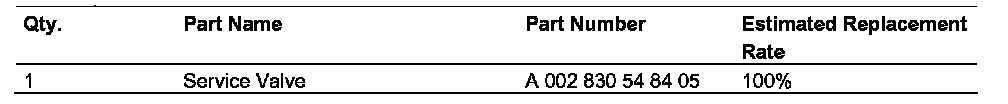

Primary Parts Information
NOTE:
THE FOLLOWING SECONDARY PART(S) IS/ARE NOT TO BE ORDERED IN EQUAL QUANTITIES AS THE PRIMARY PART(S). THEREFORE DO NOT PACKAGE OR KIT CAMPAIGN PARTS TOGETHER SINCE NOT ALL VEHICLES WILL REQUIRE THESE PARTS.

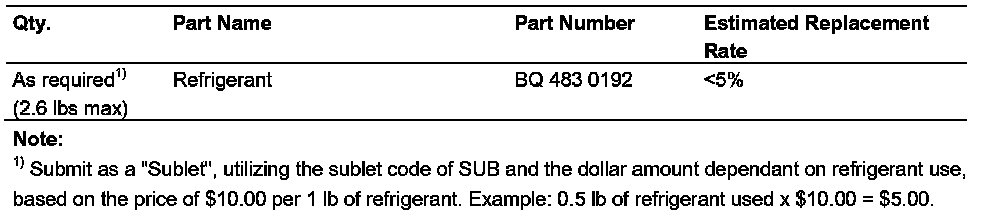

Secondary Parts Information
NOTE:
- Please be aware that only the part number(s) referenced in the Campaign Bulletin is/are approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.
- allowable labor operation should be used when submitting a warranty claim for this repair:
Warranty Information
Operation:
Service Valve for Air Conditioning Condenser, Replace (02-5372)
