Campaign - Navigation System Software Update
FILE:SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER
Campaign No. 2006080001, August 2006
TO: ALL MERCEDES-BENZ CENTERS
SUBJECT:
MODEL 221, MODEL YEAR 2007
INSTALL SOFTWARE FOR NAVIGATION SYSTEM
This Service Campaign has been initiated because DCAG has determined that certain affected vehicles (see VIN range below) may have an incorrect COMAND navigation database installed.
This could lead to faulty destination entries, as well as incorrect navigation directions and the display of incorrect street symbols on the map. Dealer will update the COMAND software on the affected vehicles.
Please review the Effective Serial Number chart, and if necessary, repair the subject vehicles during the vehicle's next service.
Prior to performing this Service Campaign:
^ Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.
^ Please review the entire Service Campaign bulletin.
Approximately 582 vehicles are affected.
Effective Serial Number Range
Note:
Every vehicle in the VIN range may not be included in the campaign. VMI must always be checked before performing campaigns to verify that the campaign is required on a specific vehicle. VMI always overrides the bulletin in reference to a specific vehicle's inclusion in a particular campaign. Please also note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.
Procedure
Prior to starting procedure ensure to:
^ Connect battery charger
^ Turn off ignition and all electrical consumers
^ Turn ignition key to second position Follow the order of steps exactly as outlined below
1. Power on head unit.
2. Press Button 1 of the DVD changer (A, Figure 1) and insert the Navigation DVD (part number A 221 827 08 59 v2.0) into the changer (B).
3. Press COMAND controller to confirm the "Disc Drive Audio Format Unknown" message.
4. Press COMAND controller to confirm the "Proceed with Update" message.
Note:
The update process takes approximately 30 minutes to complete. The technician is not required to be present during the process and may perform other tasks while the process is running. The update process run time is not included in the labor time paid under this Service Campaign.
5. Press COMAND controller to acknowledge completion of update process.
6. Ensure navigation system is functioning correctly after update.
Parts Information

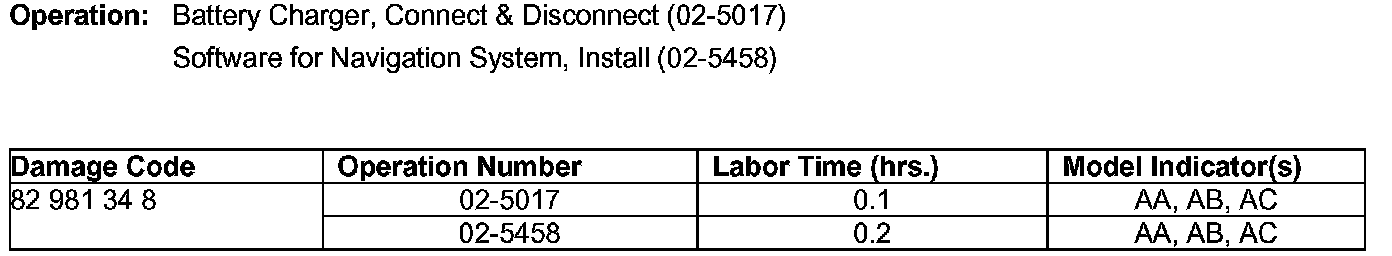

Warranty Information
^ The allowable labor operation shown should be used when submitting a warranty claim for this repair.
