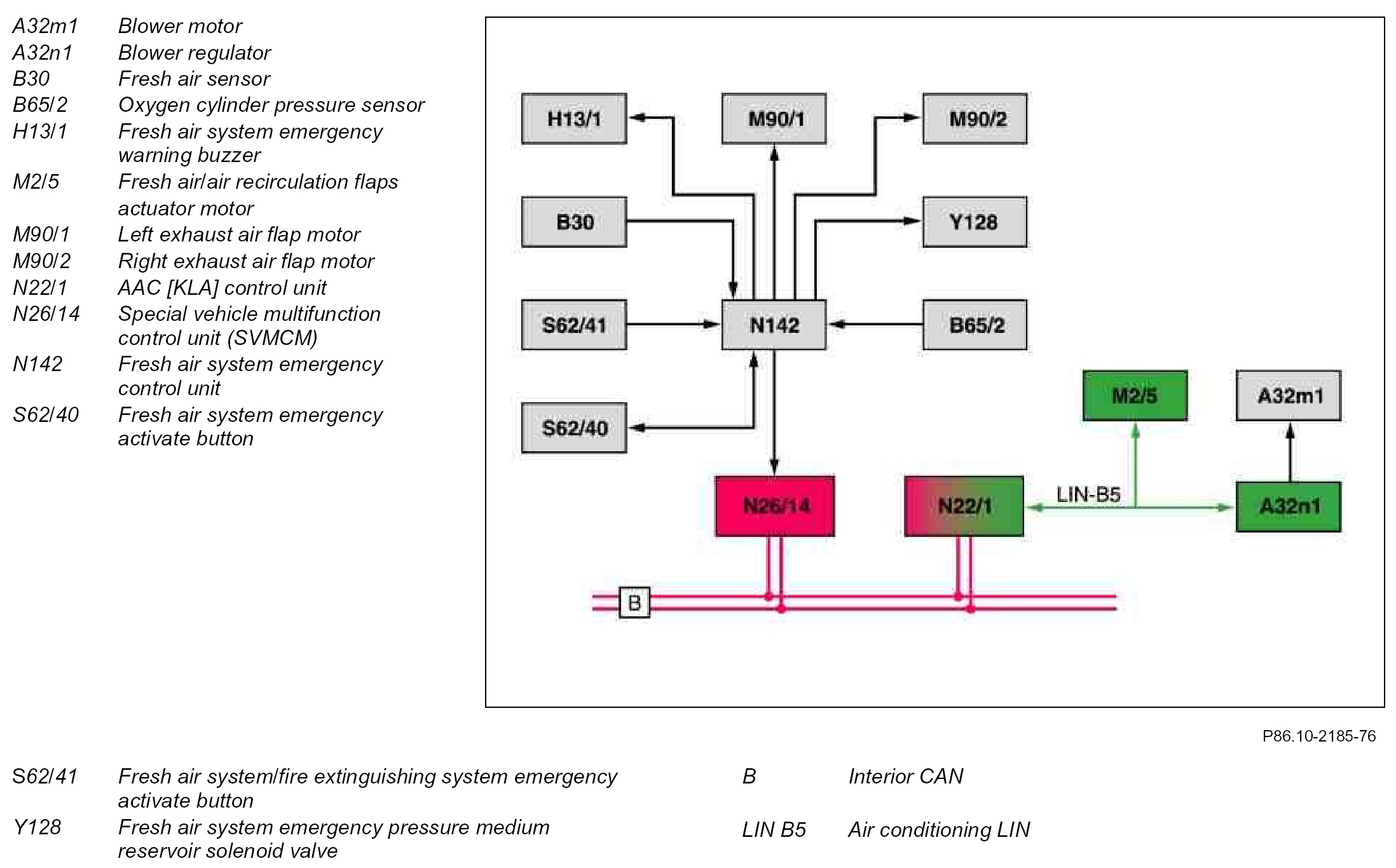

GF86.10-P-0002-02SXS Fresh Air Emergency System, Block Diagram



GF86.10-P-0002-02SXS Fresh Air Emergency System, Block Diagram
- with CODE (Z07) Top protection
- up to model year 08



Component Identification:
