GF86.10-P-2122SXS Exhaust Air Flap Motor, Component Description

GF86.10-P-2122SXS Exhaust Air Flap Motor, Component Description
- with CODE (Z07) Top protection
- up to model year 08

Component Identification:

Location

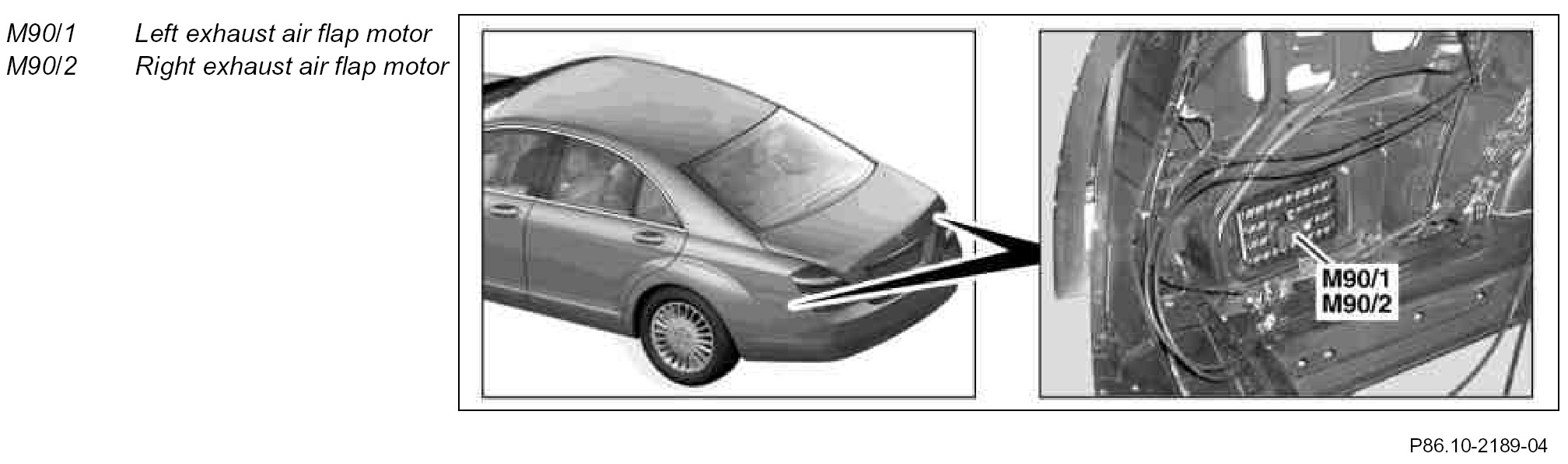

The exhaust air flap motors are located behind the paneling in the trunk on the left and right.

Task
When the fresh air emergency system is actuated, the exhaust air flap motors are actuated by the fresh air system emergency control unit via the left exhaust air flap motor polarity-reversing relay (K106) and the right exhaust air flap motor polarity-reversing relay (K106/1) and the exhaust air flaps are closed for approx. 5 minutes. N142
