Emergency Contact Module: Diagrams

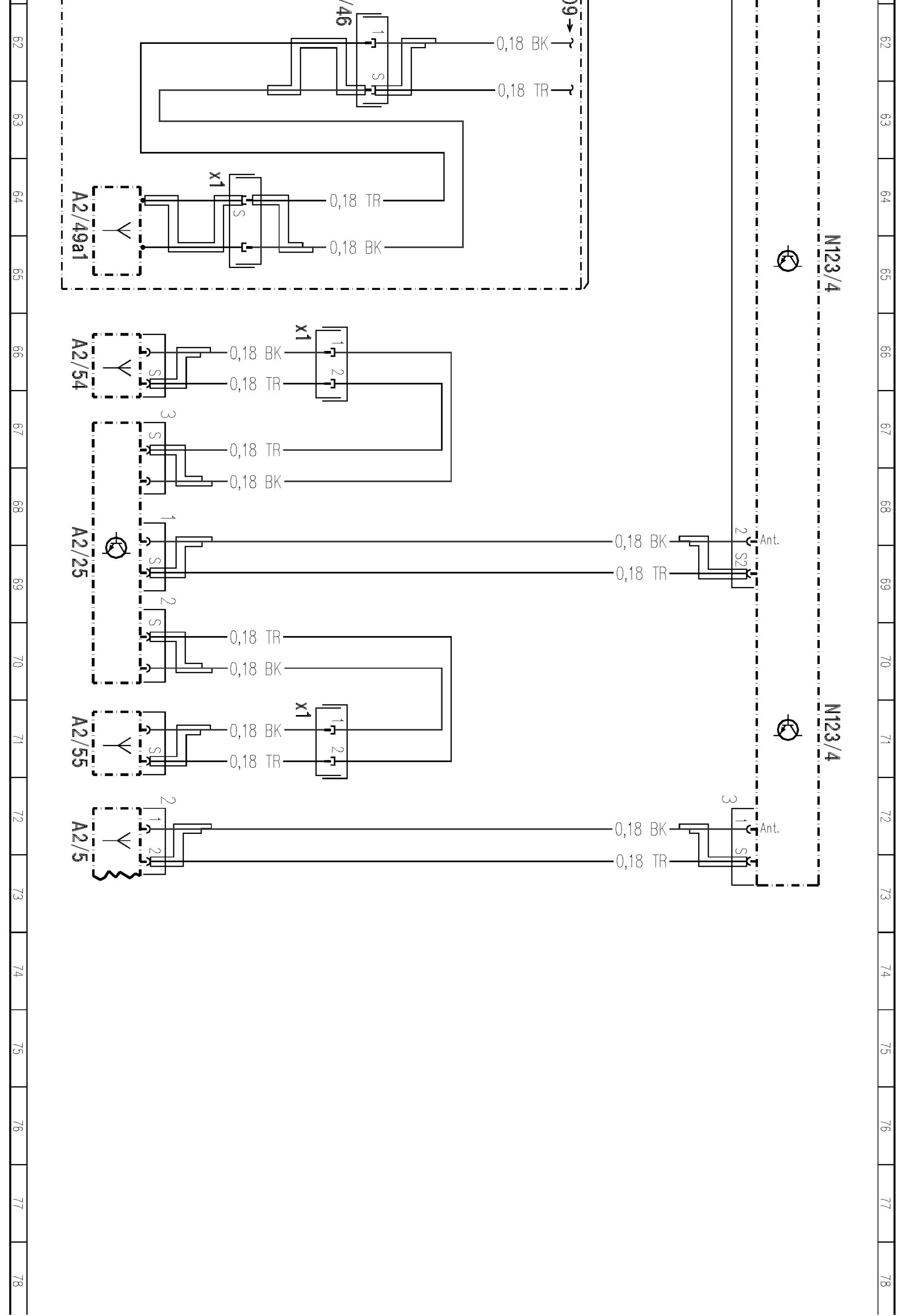

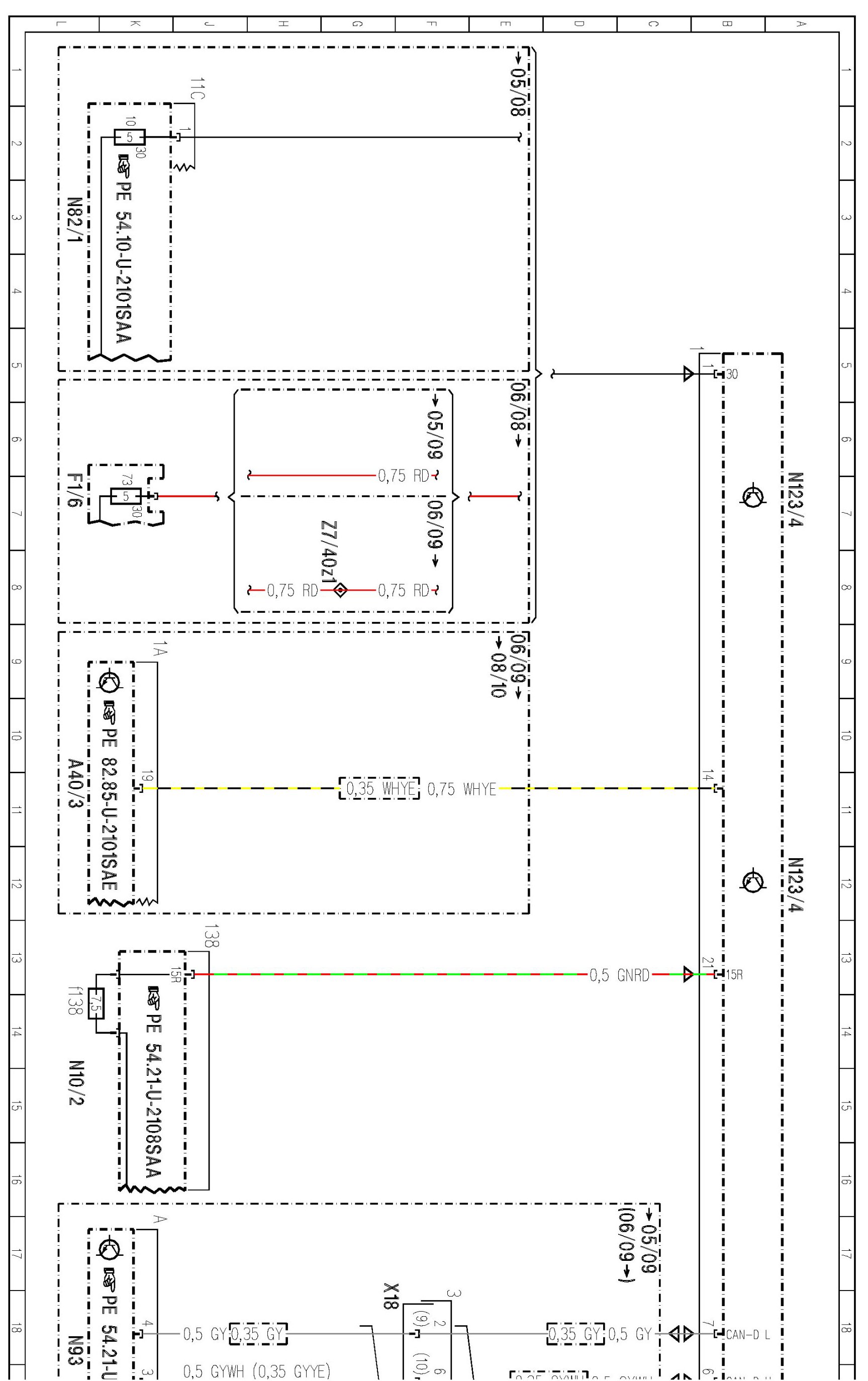

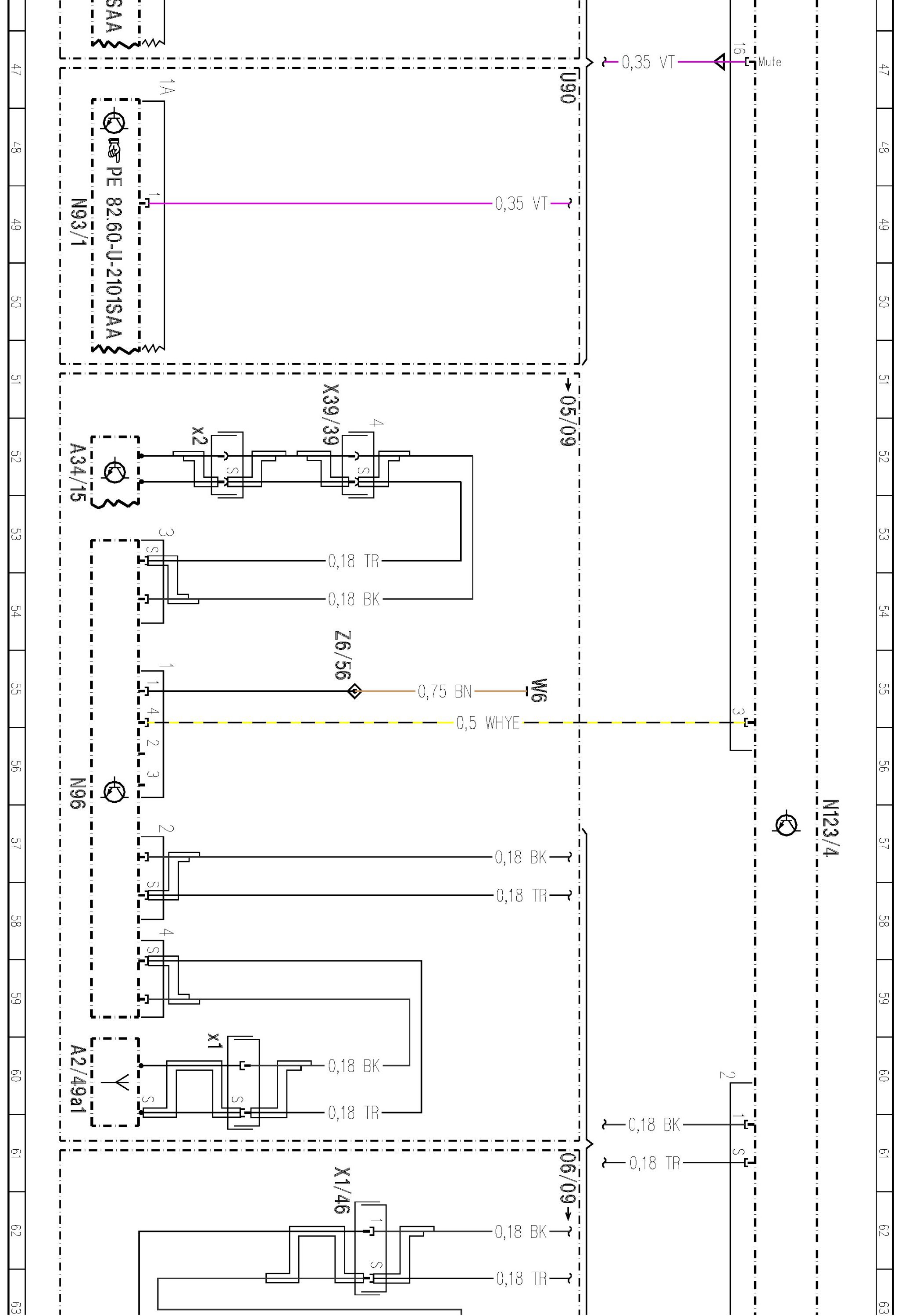

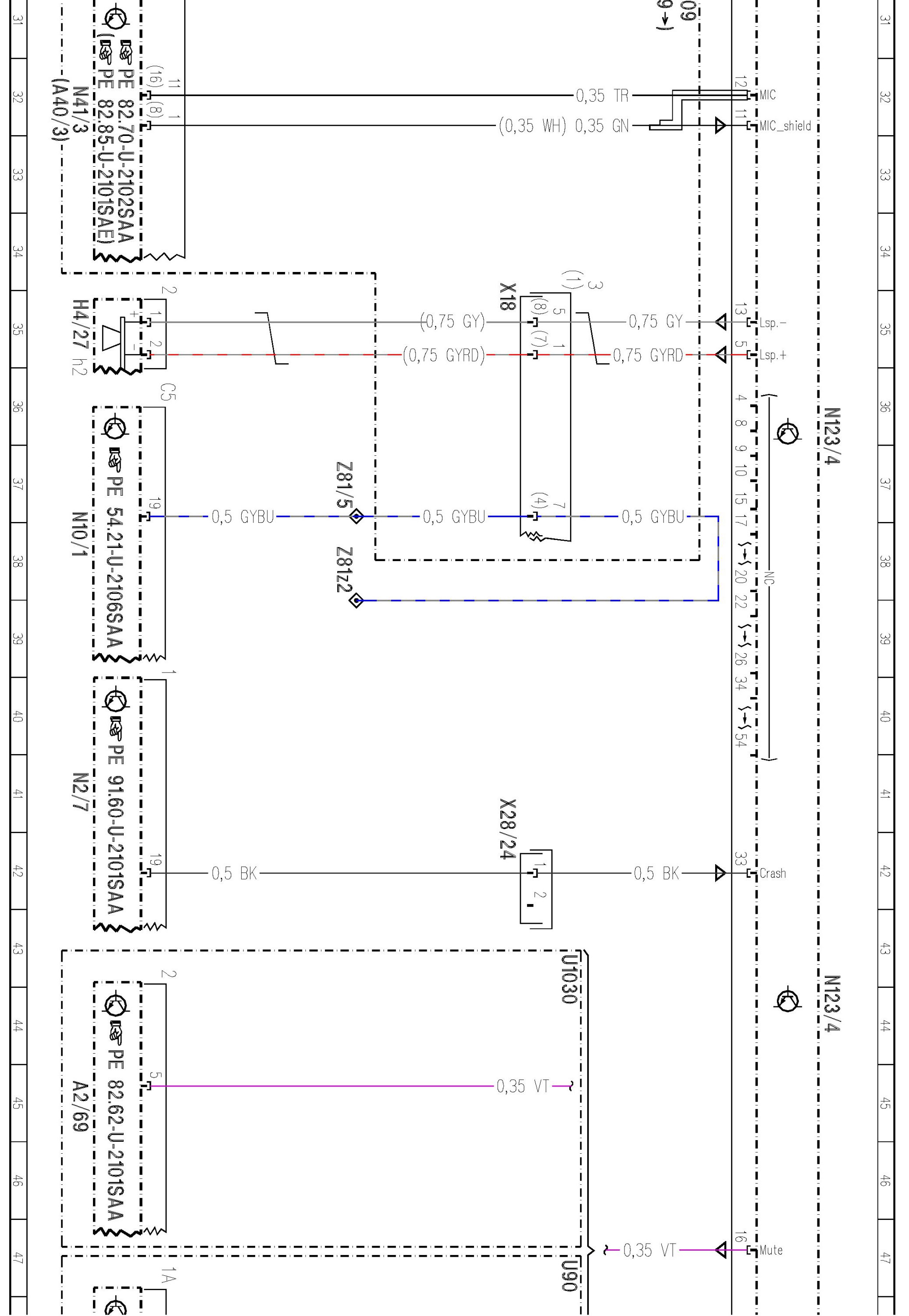

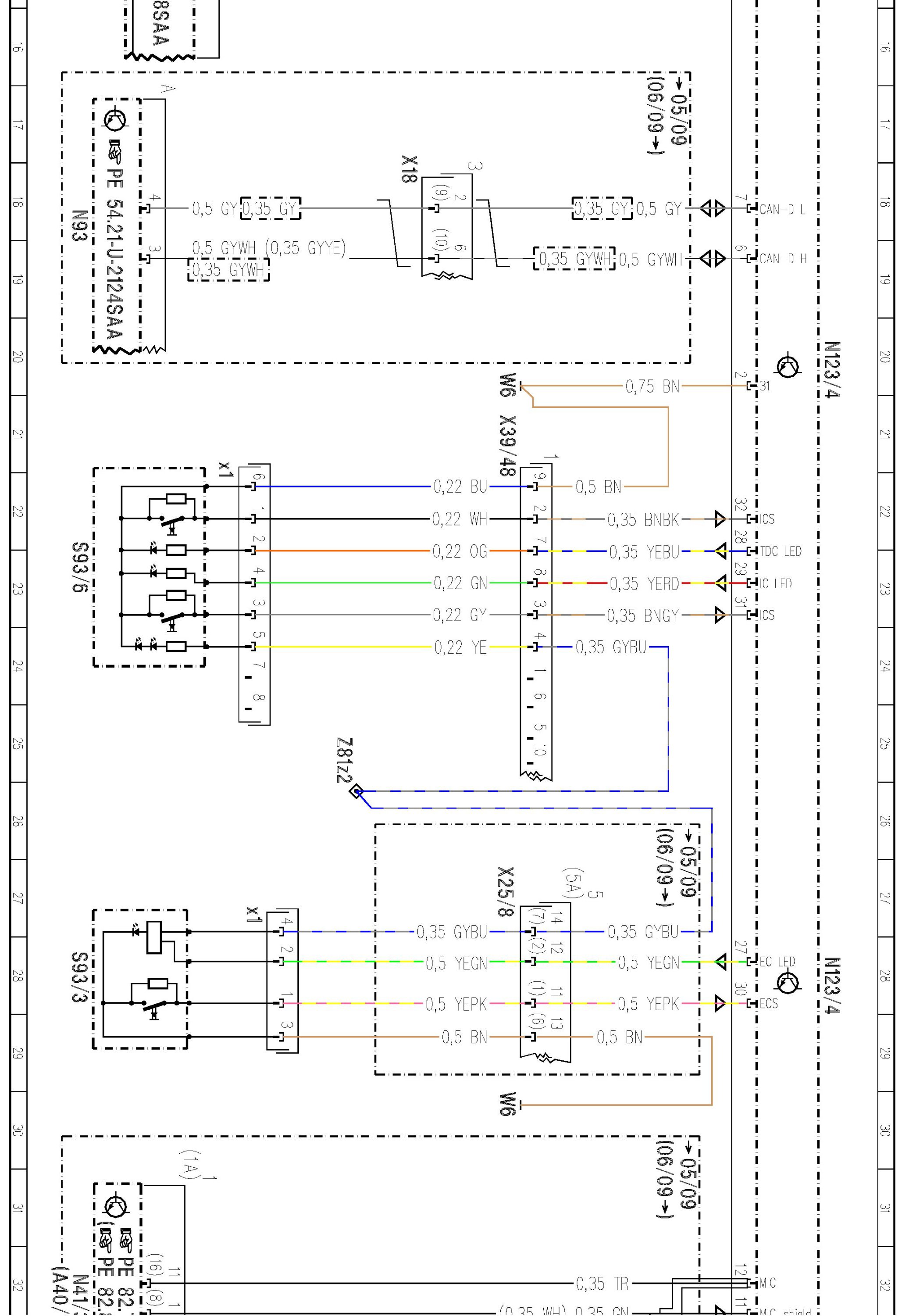

PE82.95-U-2101SAA Emergency Call System Control Module

MODEL 221
- Control unit N123/4



















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
