Audio System - Front Speakers Intermittent Or Inop.

Date: November 26, 2008

Order No.: P-B-82.60/667

Supersedes:

Group: 82

SUBJECT:
Model 221.171/176/177/179/186

Model Year 2007, Up To VIN A033392

Left or Right Front Speakers Intermittently or Permanently Inoperative

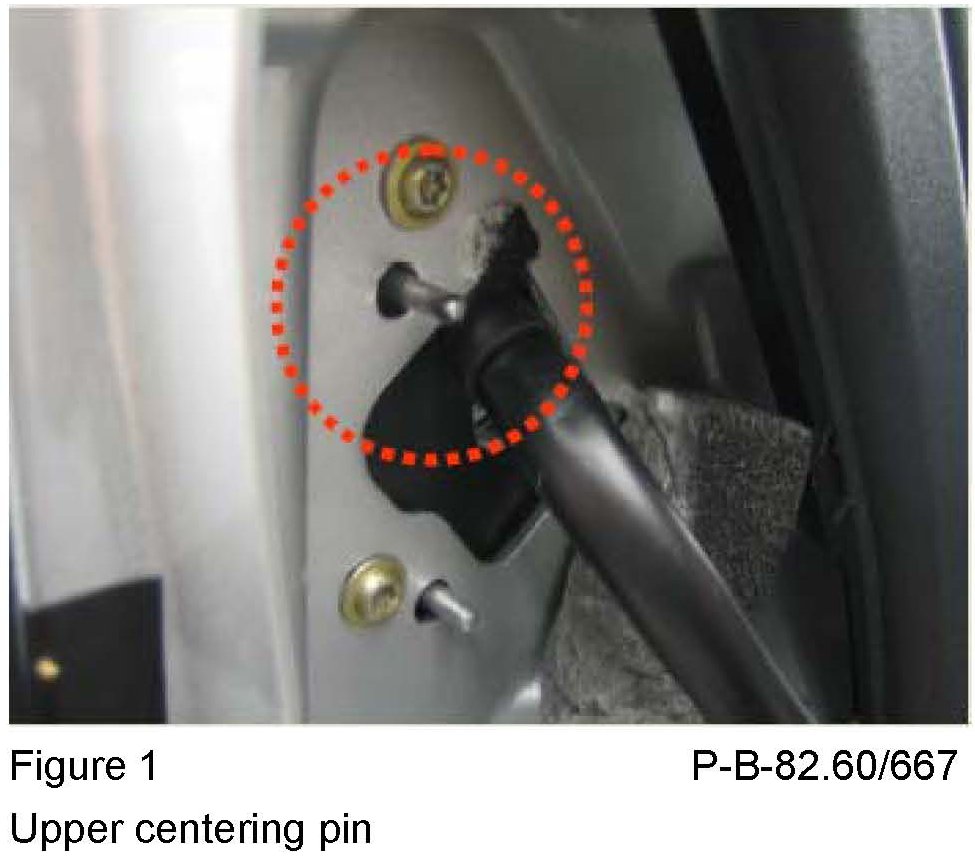

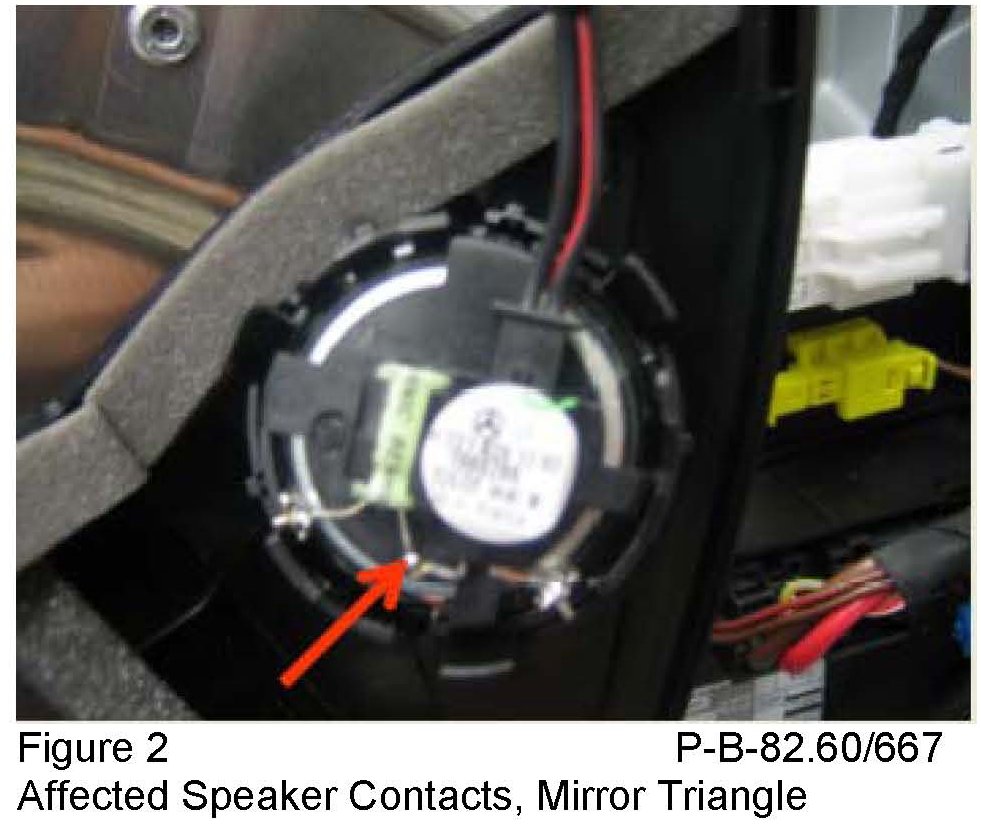

If you receive customer reports in the above model vehicles of the front left or right speakers intermittently or permanently being inoperative, this may be caused by the upper centering pin (Figure 1) of the mirror base in the left or right mirror being too long. As a result, this longer than specified pin causes contact with the tweeter connections in the mirror triangle creating a short circuit. To remedy, shorten the upper centering pin in the left and/or right mirror triangle by approximately 3 mm.

NOTE:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on November 26, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.

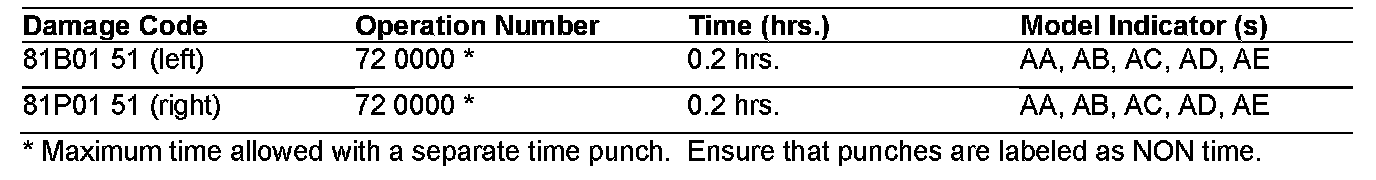

In Case of Warranty

Operation: Left or right outside mirror, modification (72-0000)
