Body - Outside Door Handle Sticks in Pulled Position

Date: September 28, 2007

Order No.: P-B-72.00/85

Supersedes:

Group: 72

SUBJECT:
Model 221.171/176/177/179/186

Outside Door Handle Sticks in Pulled Position

If you receive customer reports in the above model vehicles of the outside door handle sticking in the pulled out position on either the front or rear doors, the outside door handle may be contacting the door skin. Perform the procedure outlined below to resolve.

1. Remove the outside door handle. Refer to WIS document AR72.10-P-2400SXS (front) or AR72.12-P-24 10SX (rear).

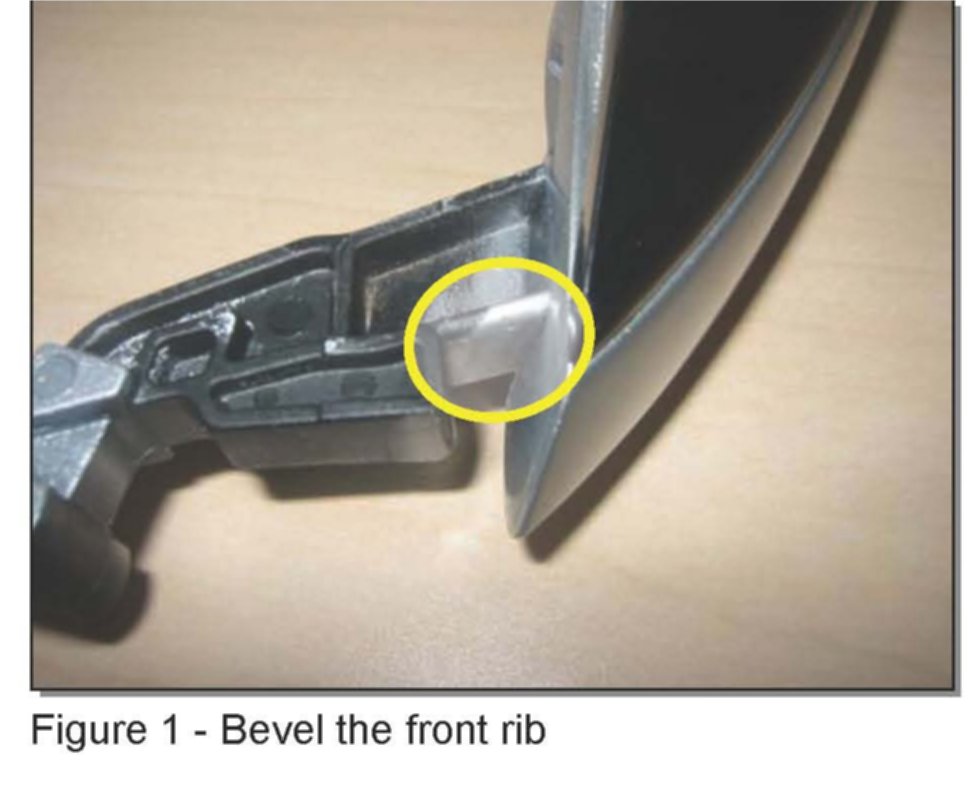

2. Bevel the front rib of the outside door handle assembly (Figure 1 and 2) by approximately 45°.

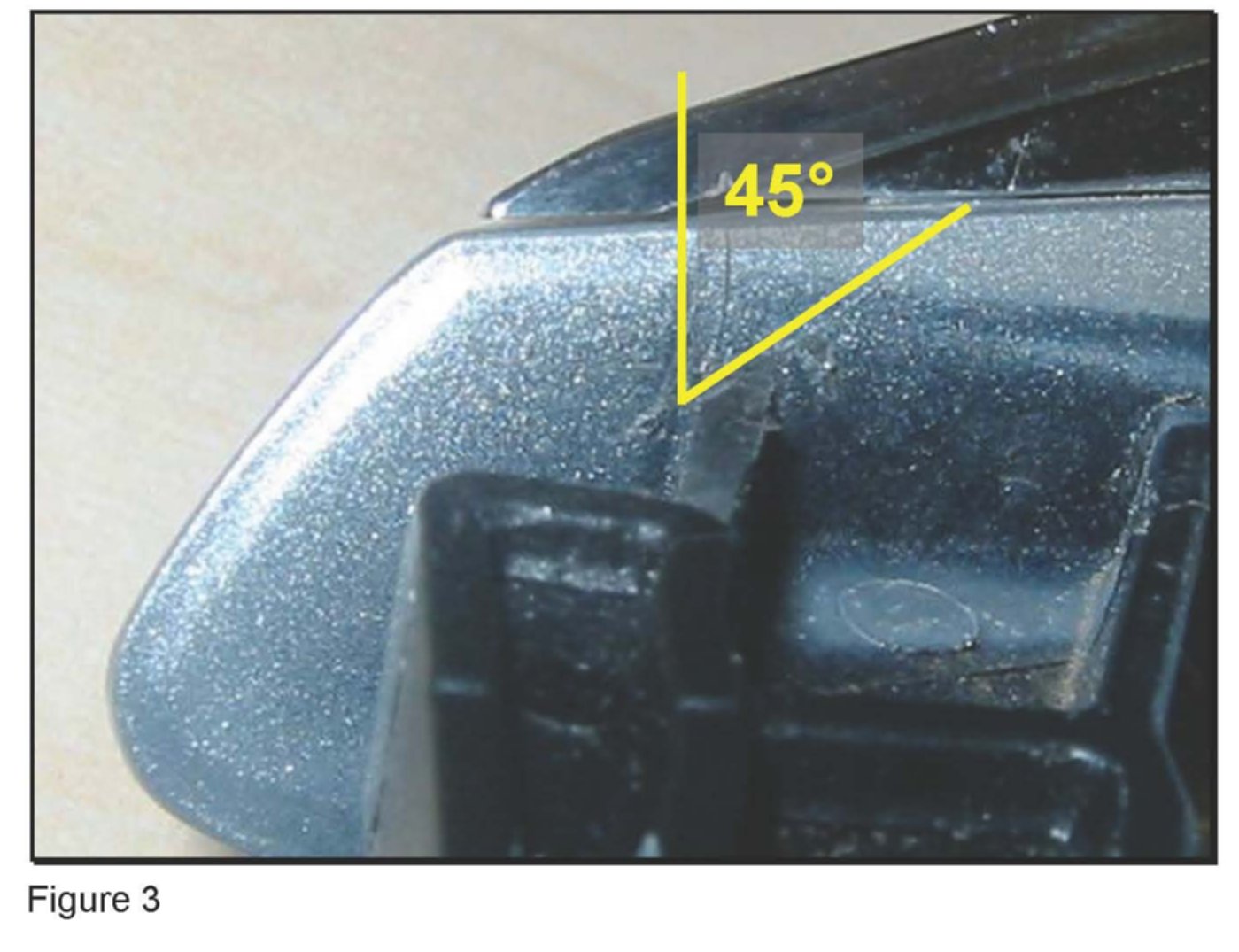

3. Install the beveled outside door handle (Figure 3).

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on September 28, 2007. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.

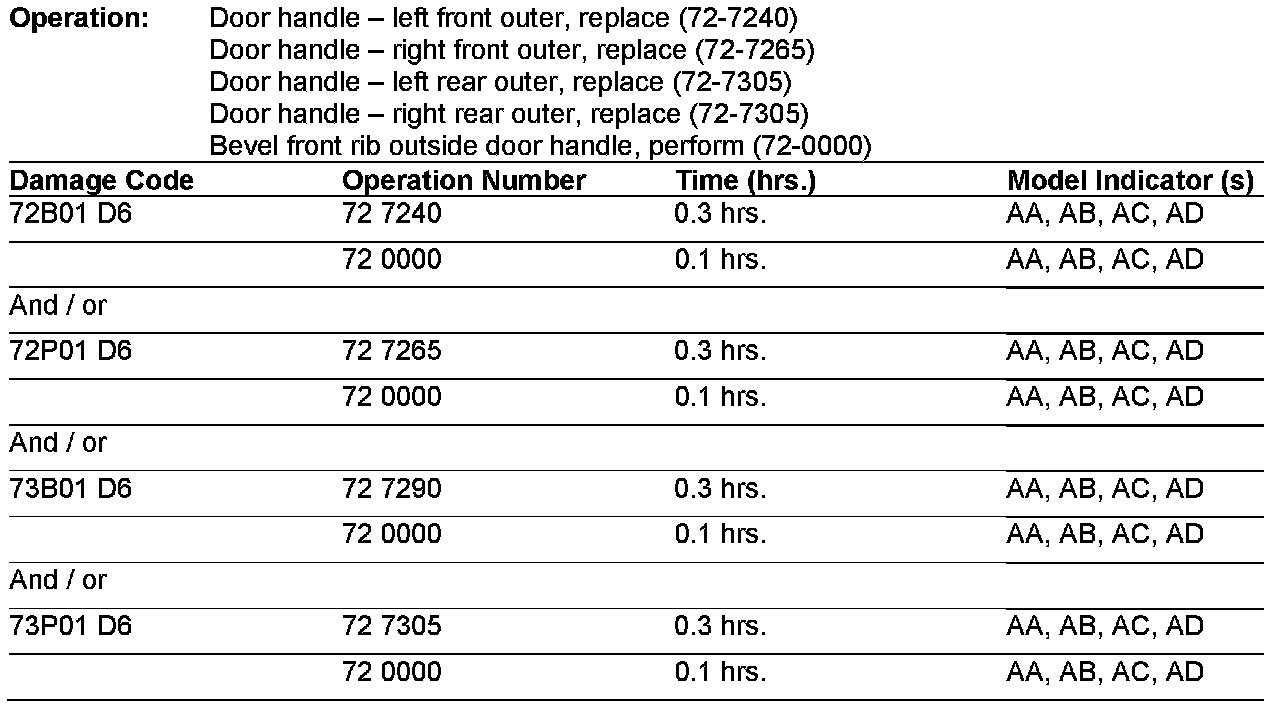

In case of Warranty, use the table.
