Body/Frame - Dedicated Collision Repair Equipment

Date: November 2005

Order No.: P-B-58.40/145

Supersedes:

Group: 58

SUBJECT:
Model 221 as of Model Year 2007

Dedicated Straightening Equipment for Collision Repair (Celette and Car Bench)

Note:
Bulletin is divided by product in two parts.

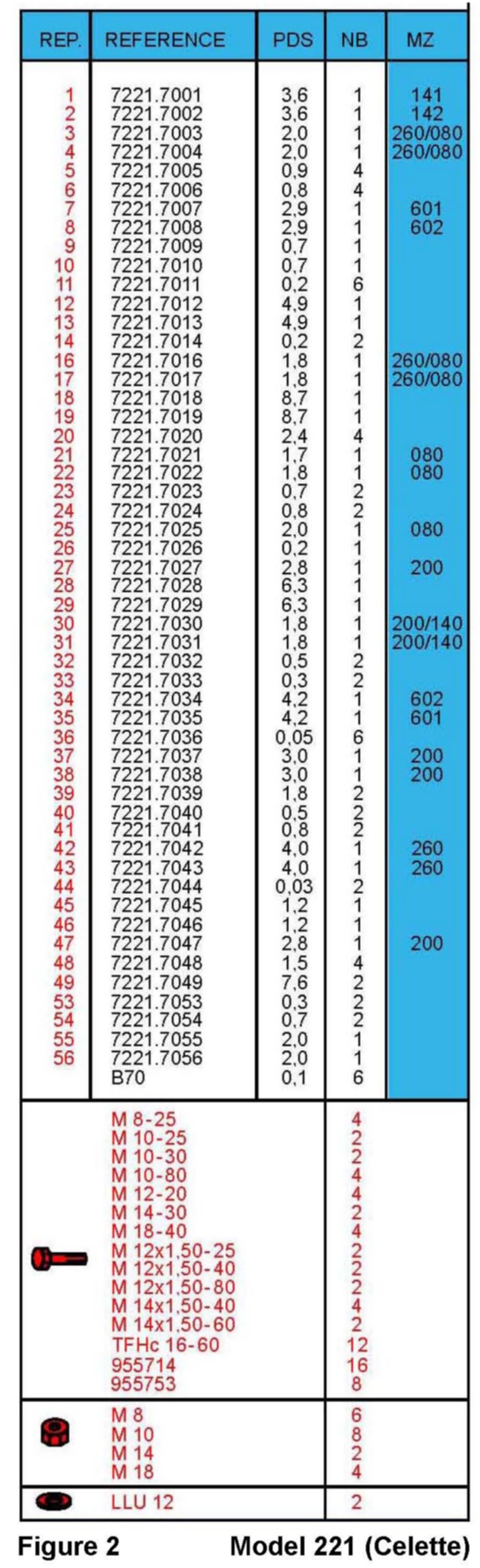

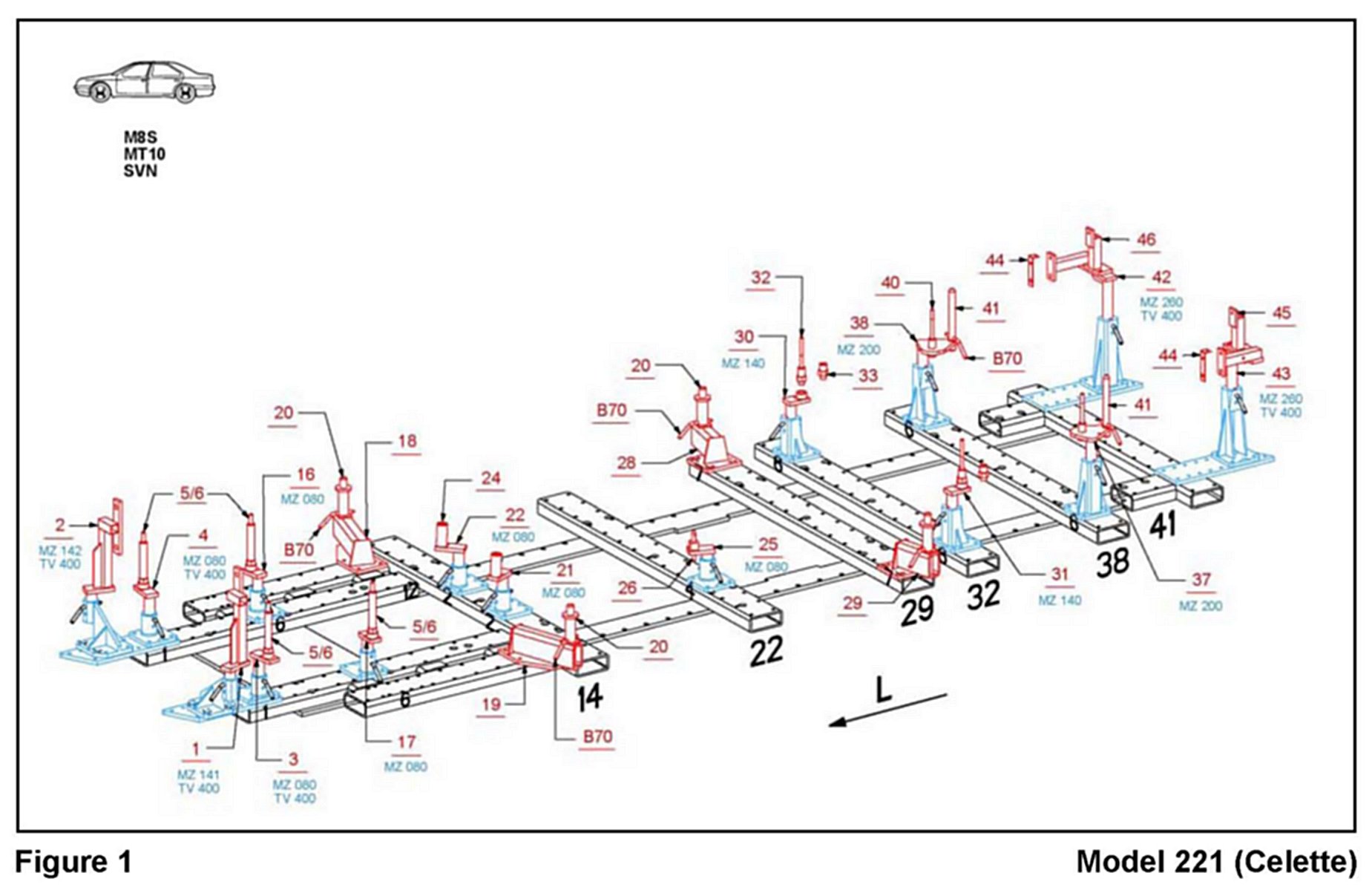

The dedicated fixture set used for collision repair are being made available for Model 221. The fixture and an index for Celette are represented by Figures 1 and 2.

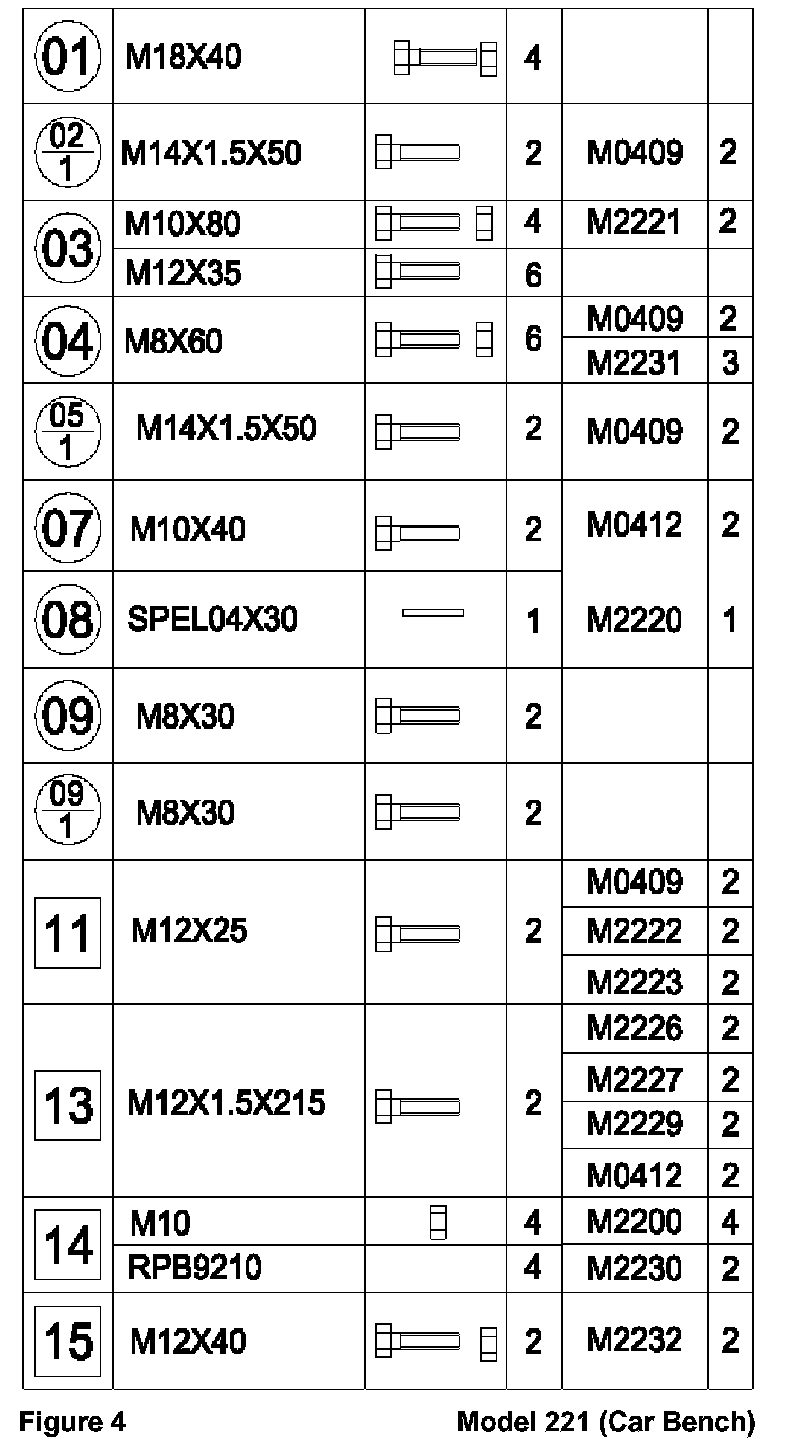

The fixture and an index for Car Bench are represented by Figures 3 and 4.

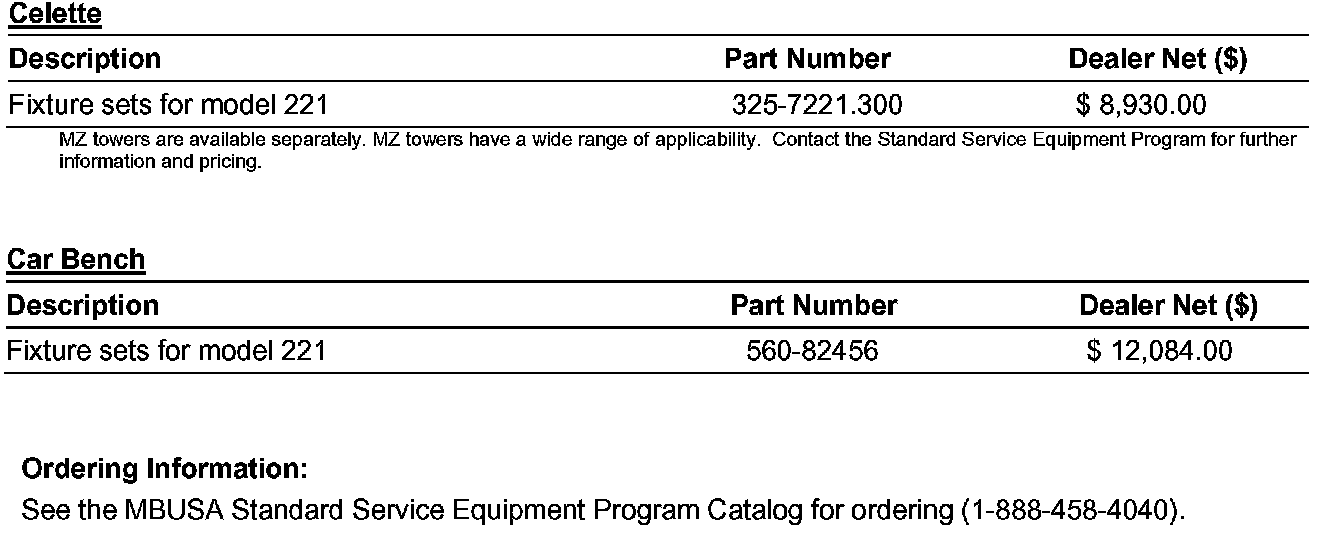

Parts Information
