Collision Avoidance - 'Distronic(R) Inoperative' Message
DISTRONIC INOPERATIONTopic Number LI54.70-P-047828
Version 1
Design Group 54.70 proximity warning system
Date 08-26-2009
Validity Model 221.### with SA code 233 and code 809
Reason for change
Reason for block
COMPLAINT:
Warning message in instrument cluster "Distronic Inoperative" displayed.
CAUSE;
Faulty charge level of backup battery stored in ABR (Adaptive Brake) control unit (N47/5) with relevant fault code.
This shuts down the Distronic function.
REMEDY:
Charge backup battery or replace if necessary.

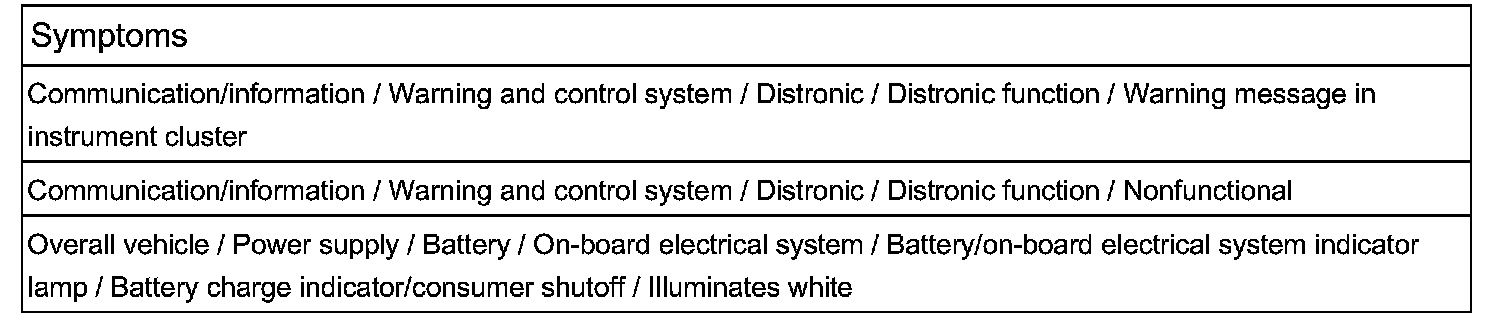

Symptoms
Control unit/fault code

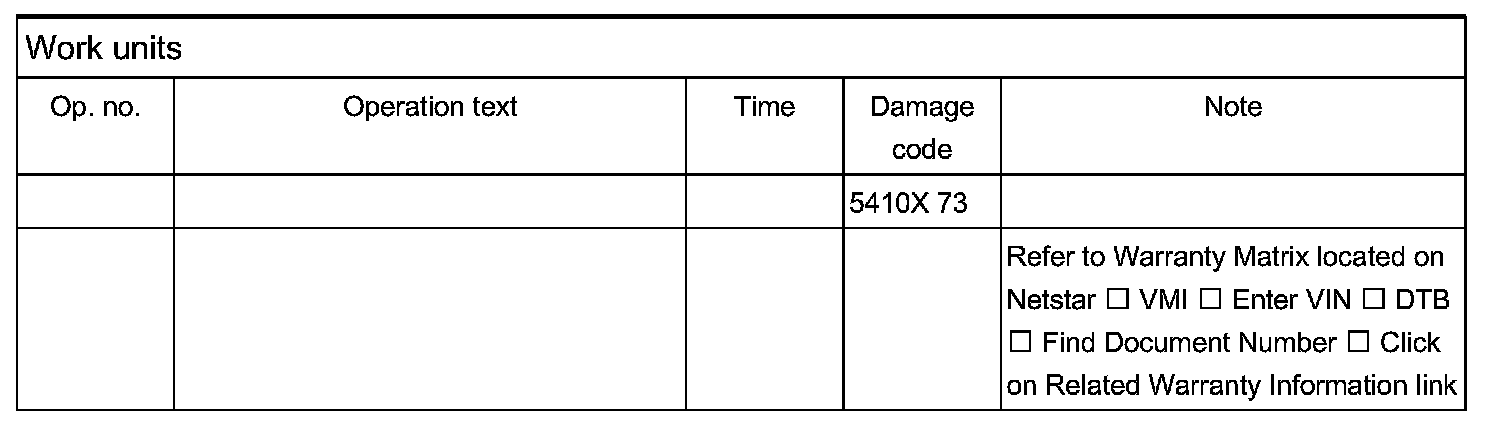

Work units
Validity
