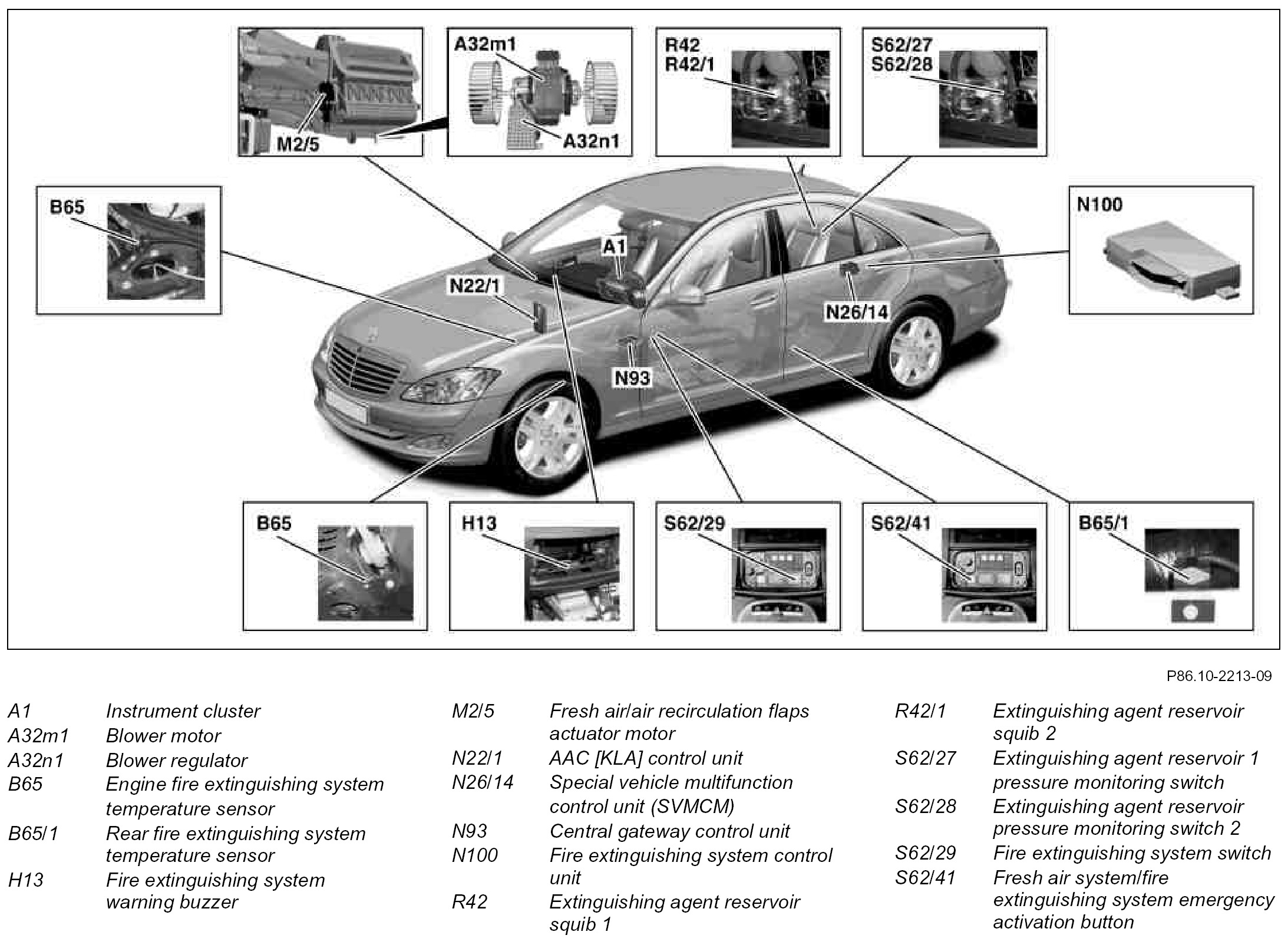

GF86.10-P-0001-02SXS Fire Extinguishing System, Location of Components



GF86.10-P-0001-02SXS Fire Extinguishing System, Location Of Components
- with CODE (Z07) Top protection
- up to model year 08


Component Identification:
