AR54.21-P-1266-01SX Replace Control Knob of Rear Control Panel Control Unit

AR54.21-P-1266-01SX Replace Control Knob Of Rear Control Panel Control Unit
- with CODE (864) Rear entertainment system

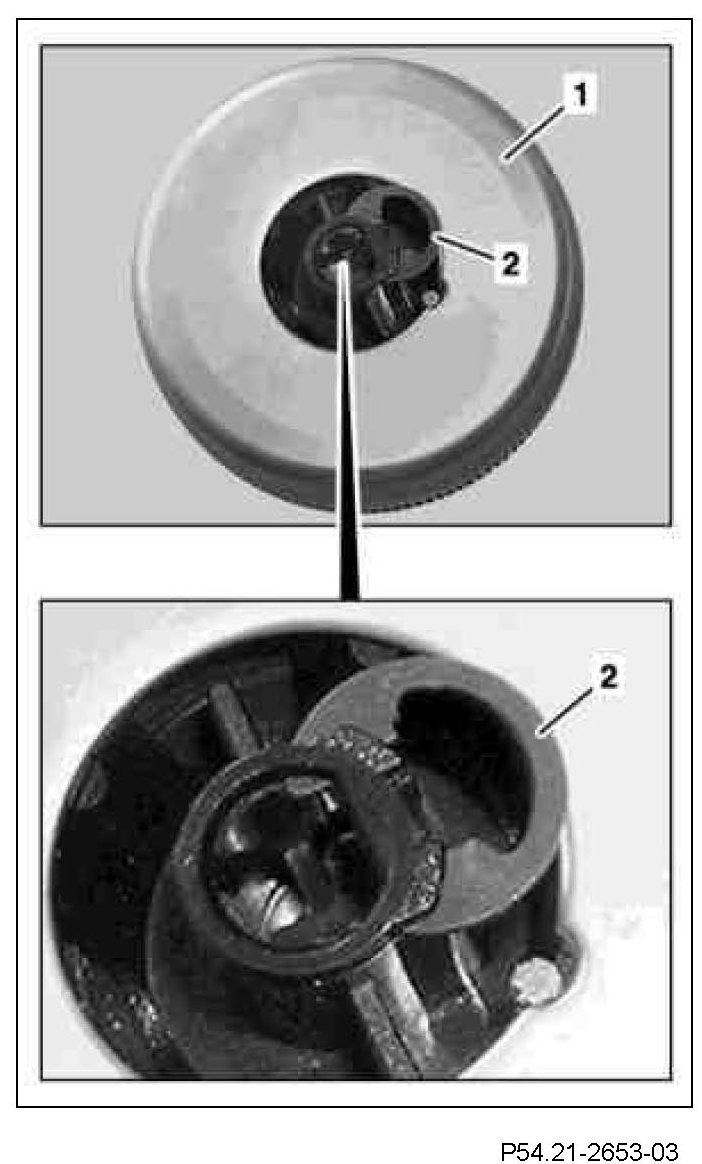

1. Fit circlip (2) into grooves on control knob (1) as shown.
2. Push control knob (1) onto shaft of RCP [HBF] control unit.
3. Engage circlip (2) on shaft of RCP [HBF] control unit using a suitable tool.

Install the circlip (2) carefully and cover the center armrest trim with a suitable protective cover in order to avoid damage.

4. Check that the control knob (1) is properly seated on the shaft of the RCP [HBF] control unit.

The control knob (1) must be seated on the shaft of the RCP [HBF] control unit without play.
