PE91.60-P-2101SAB Wiring Diagram For Airbag Control Unit With Integrated Emergency Call System

PE91.60-P-2101SAB Wiring Diagram For Airbag Control Unit With Integrated Emergency Call System
- with CODE (Z19) S600 Pullman Guard state sedan
- Control unit N2/7
- Sheet 1

Wiring Diagram (Part 1):

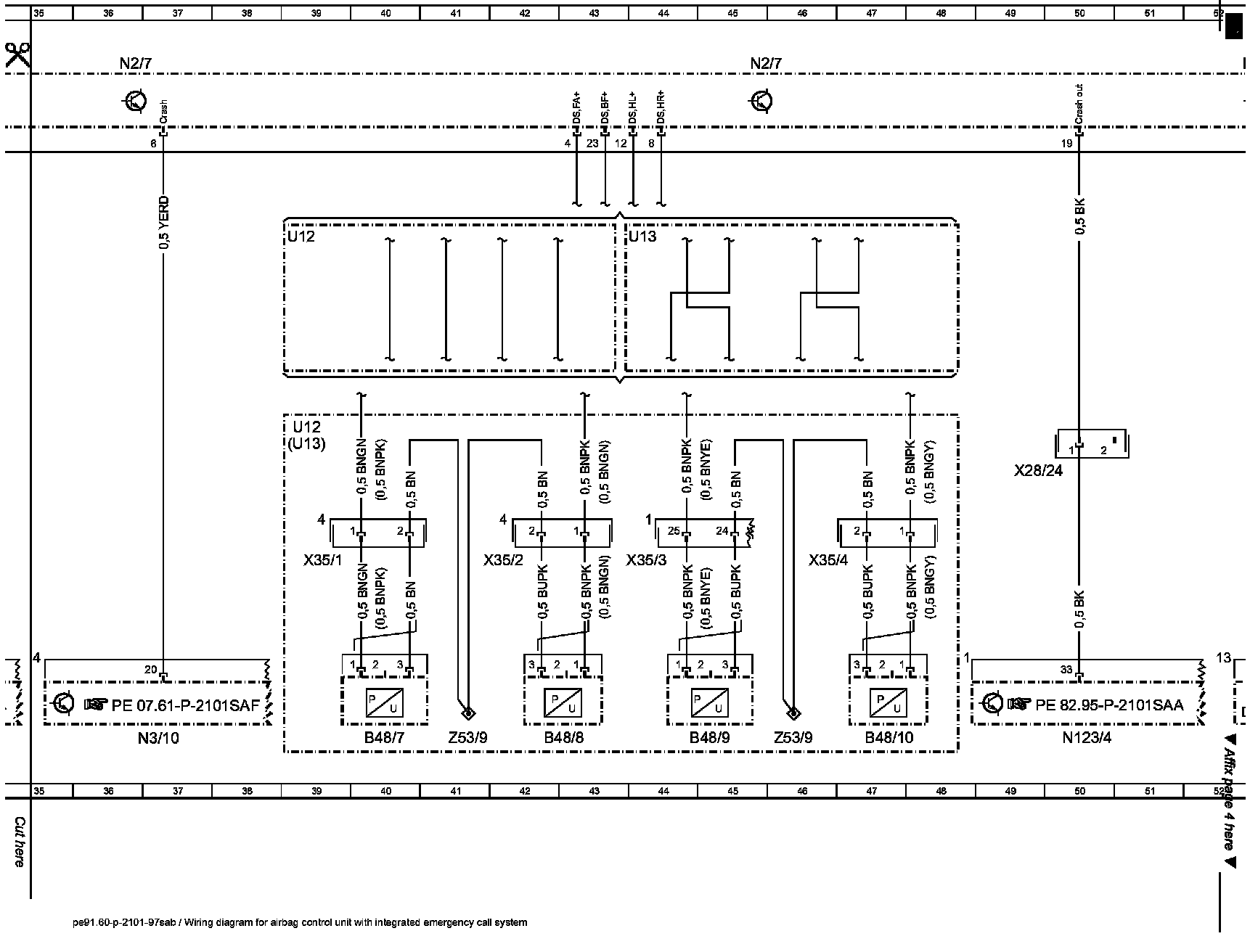

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

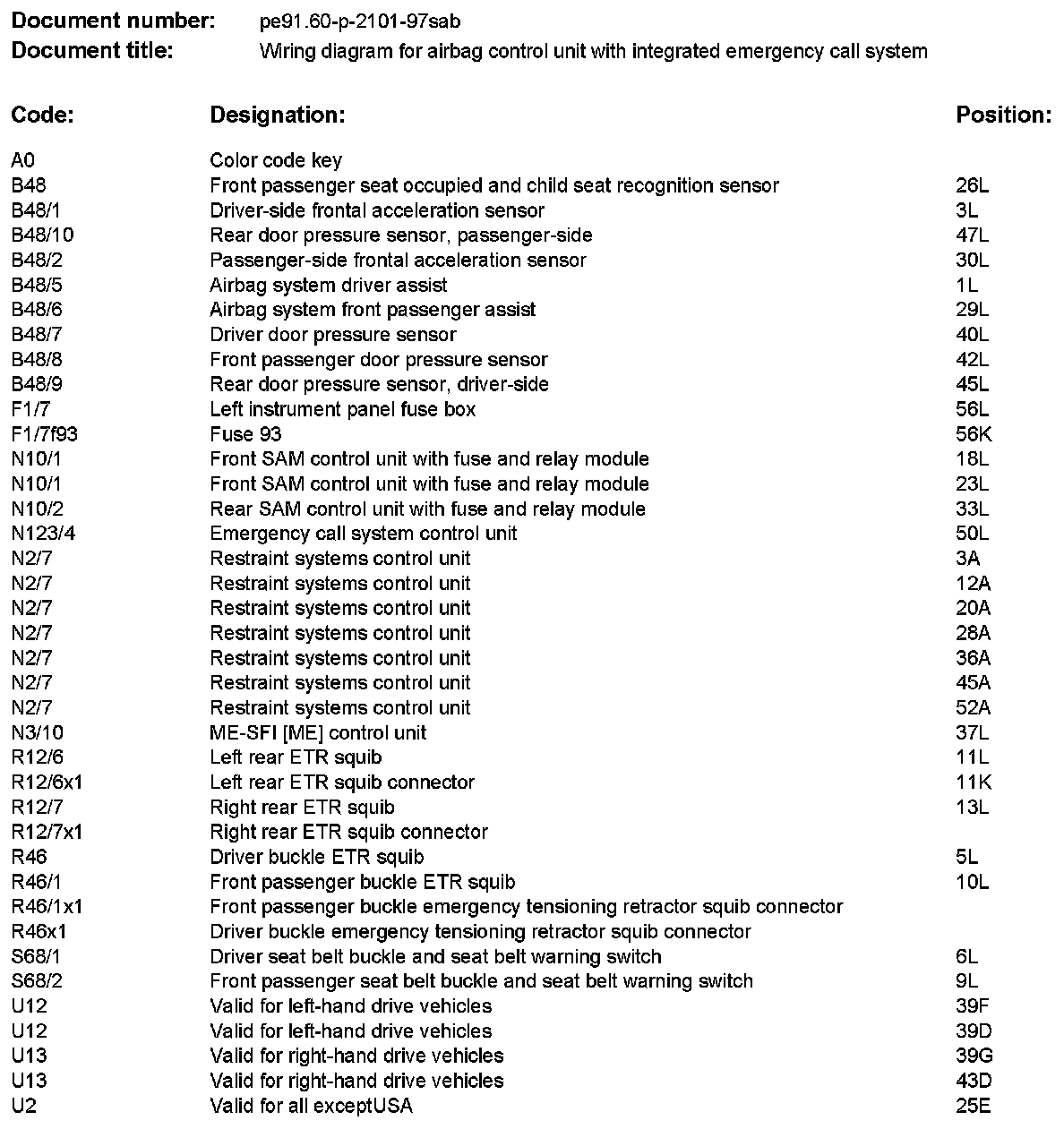

Component Description/Coordinates, A0 To U2:

Component Description/Coordinates, U32 To Z53/9:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
