A/C - Airscarf(R) Is Inoperative

Date: November 4, 2008

Order No.: P-B-91.29/180

Supersedes:

Group: 91

SUBJECT:
Model 230.470/471/477/479, Up to VIN F145965

Airscarf Not Working

If you receive customer reports in the above model vehicles that the Airscarf feature is inoperative, this may be caused by the Airscarf wiring harness being pinched between the height adjustment gears and the cushion frame. Follow the steps below to correct.

1. Remove seat cushion to access the Airscarf wiring harness. Refer to WIS document: AR91.10-P-3310R.

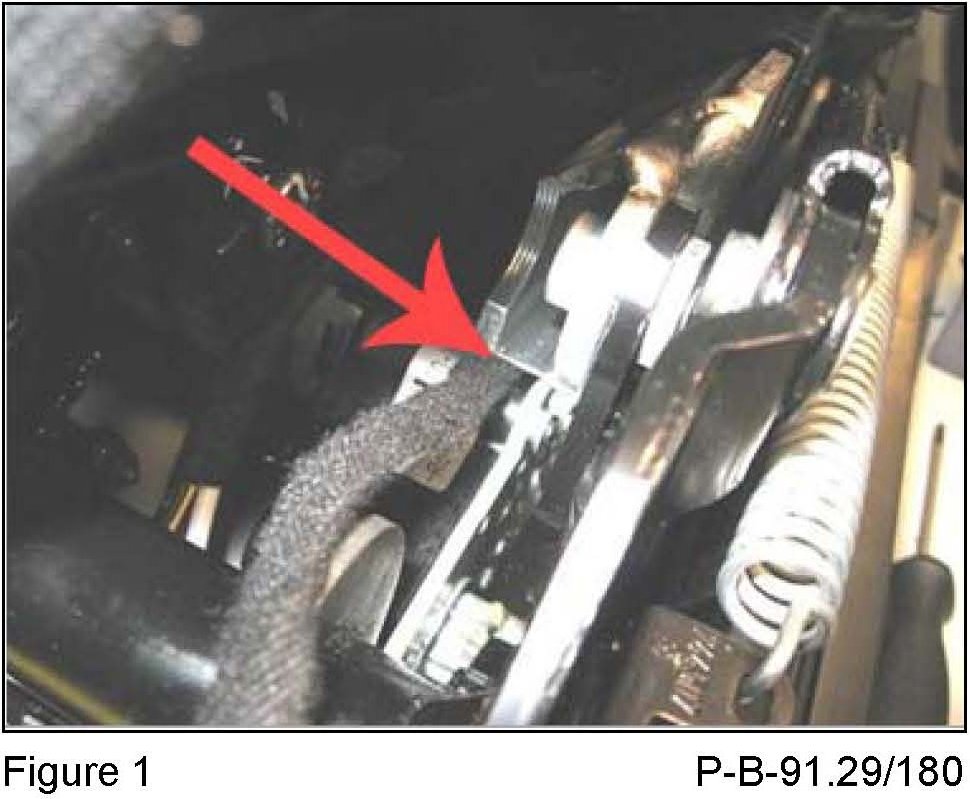

2. If the Airscarf wiring harness is pinched (Figure 1) or is damaged, repair the wiring harness as per WIS document AR00.19-P-0001A. After repairing, fasten the wiring harness with cable ties (Figure 2).





3. Check 25 Ampere fuse #55 (right seat) and 25 ampere fuse #56 (left seat) in the rear fuse box. Replace fuse(s) if necessary.

NOTE:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on November 4, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.

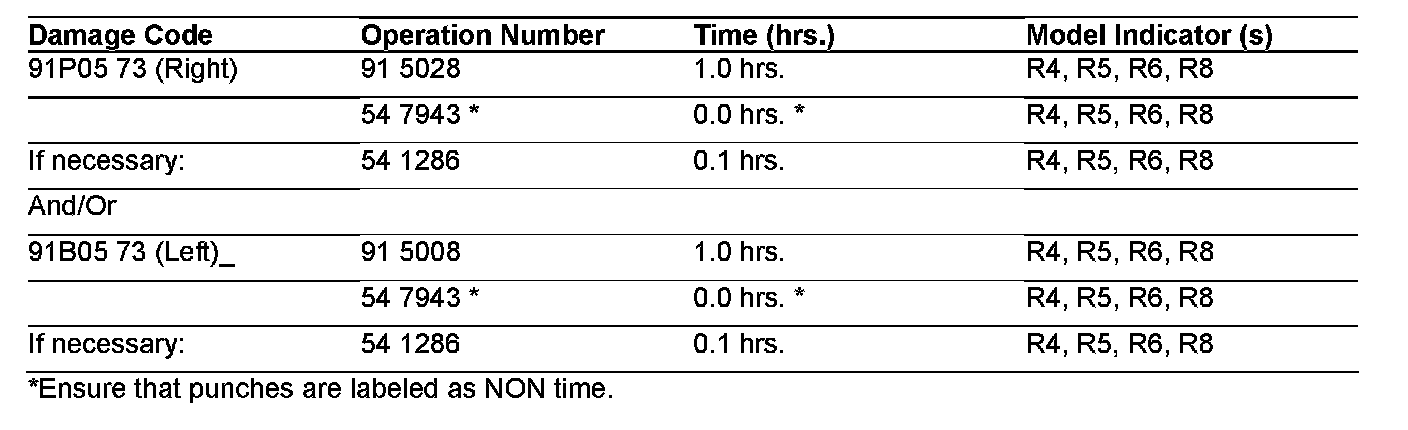

In Case of Warranty

Operation: Front passenger seat cushion, R&R (91-5028)
Driver seat cushion, R&R (91-5008)
Electrical wiring harness for..... (specify), repair (54-7943)
Fuse - specify location, replace (54-1286)
