Fire Suppression System: Service and Repair

AN86.10-P-0001R Retrofit Fire Extinguisher
MODEL 230.4## 1# up to 28.1.08
- except CODE (494) USA version
- except CODE (498) Japan version
- as of code (805) Modification year 2004,
- up to code (808) Modification year 2007,
except AMG vehicles

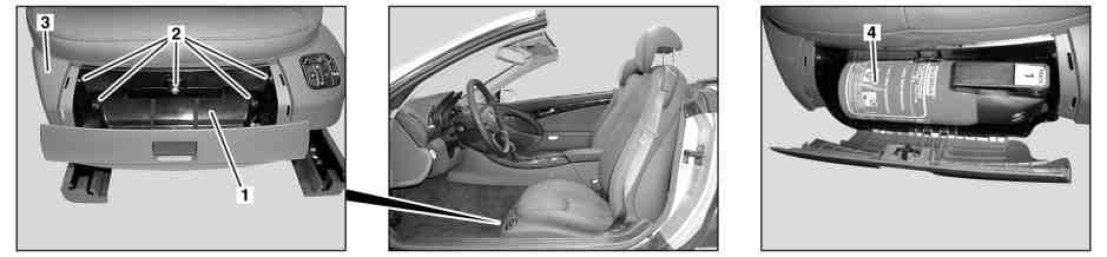

1 Stowage compartment
2 Screw
3 Inner front seat frame paneling
4 Fire extinguisher
