Home >> Mercedes Benz >> 2007 >> SL 65 AMG (230.479) V12-6.0L Turbo (275.981) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Service and Repair >> AR33.10-P-0200RBS Remove/Install Front Axle Half

AR33.10-P-0200RBS Remove/Install Front Axle Half



AR33.10-P-0200RBS Remove/install front axle half
- with CODE (P99) Special model "AMG Black Series"

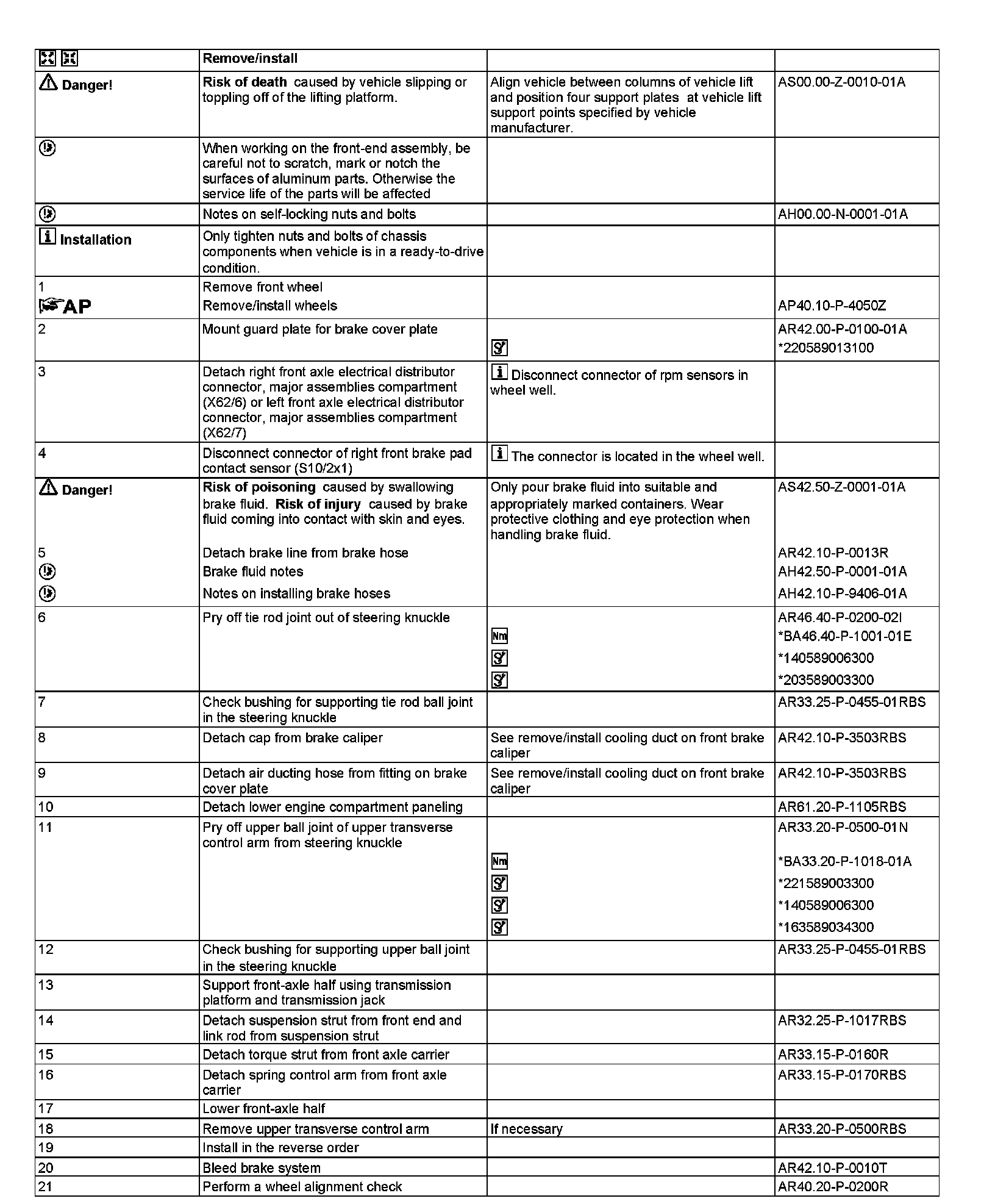

Steps 1-21:

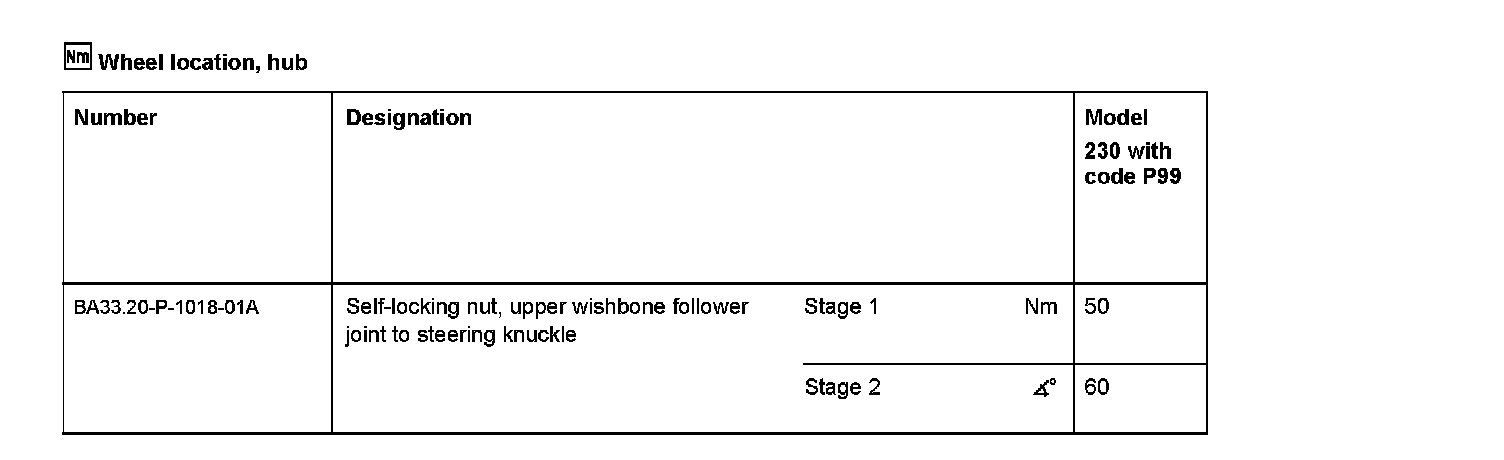

Wheel location, hub:

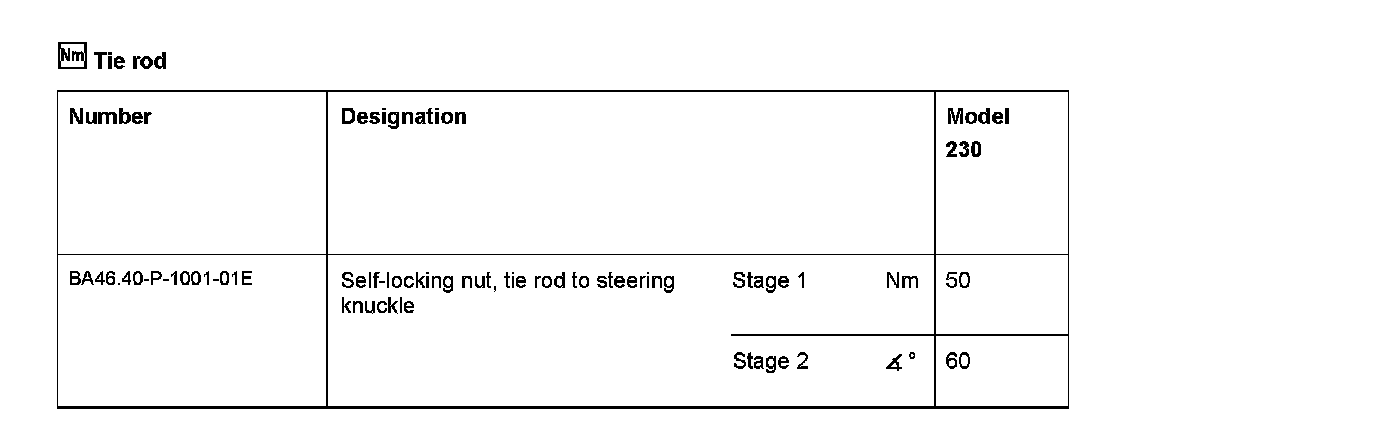

Tie rod:




Special Tools:
