AR49.10-P-7000VT Remove/Install Complete Exhaust System

Component Identification:

Component Identification:

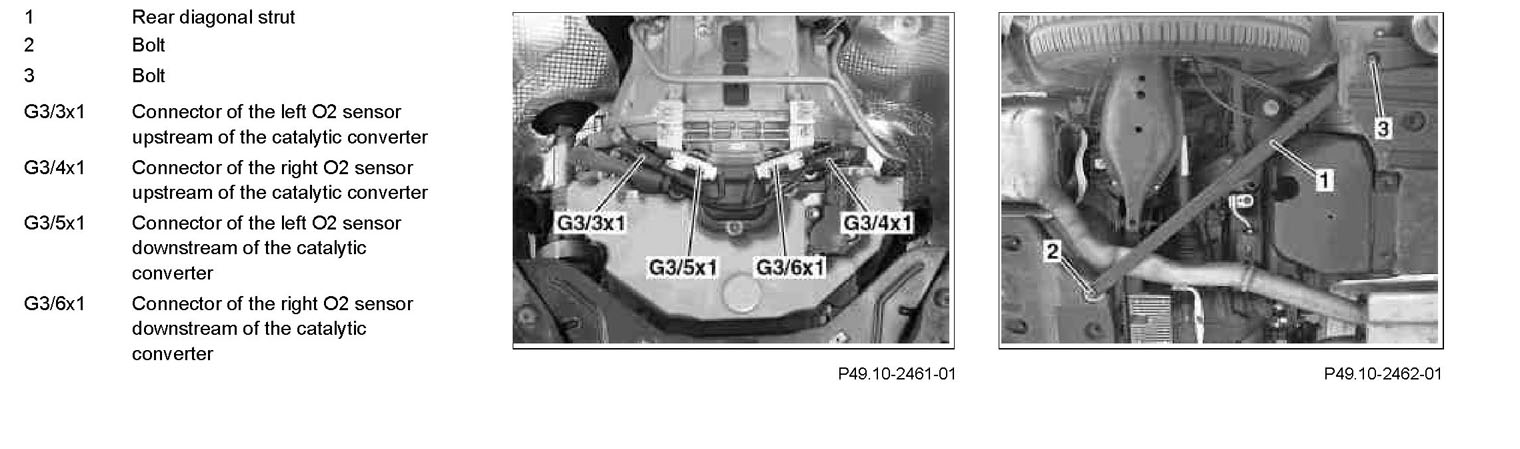

Steps 1-2:

Steps 3-11:

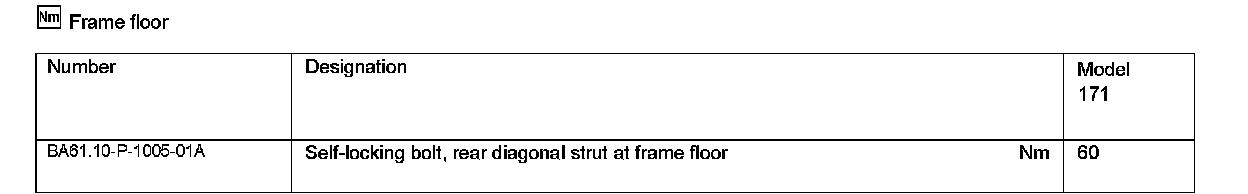

Frame Floor:

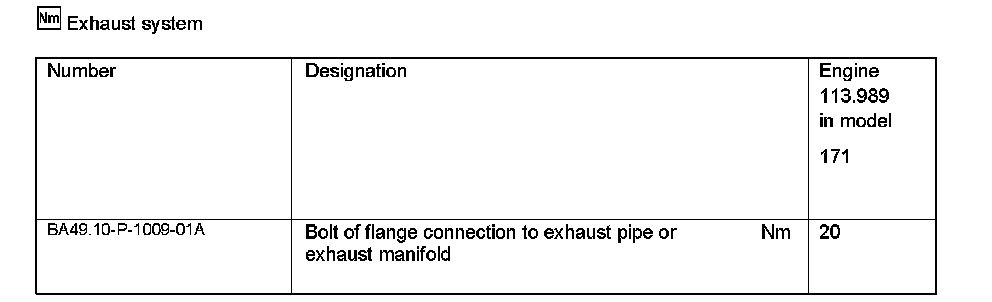

Exhaust System:

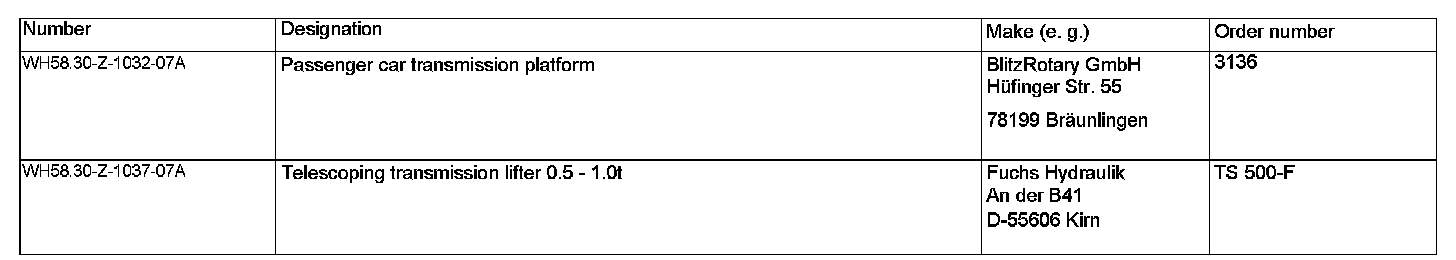

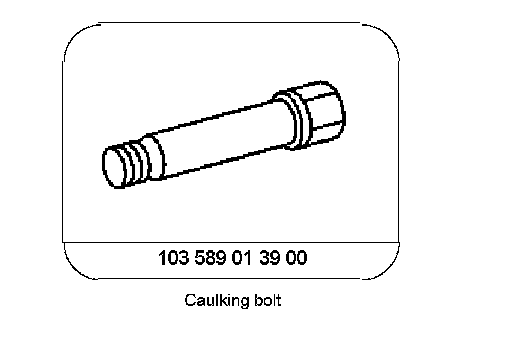

Special Tools:

Auxiliary Materials:

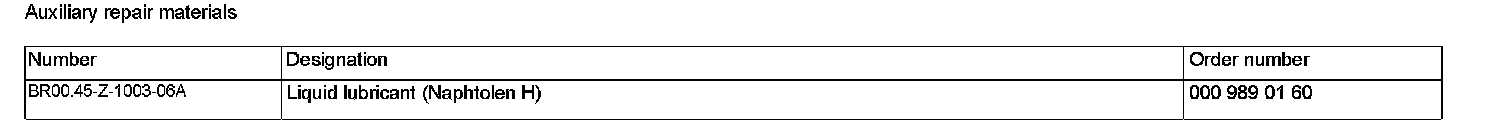

Auxiliary Repair Materials:
