AR03.30-P-5000B Remove/Install Retaining Lock For Crankshaft/Ring Gear



AR03.30-P-5000B Remove/install retaining lock for crankshaft/ring gear

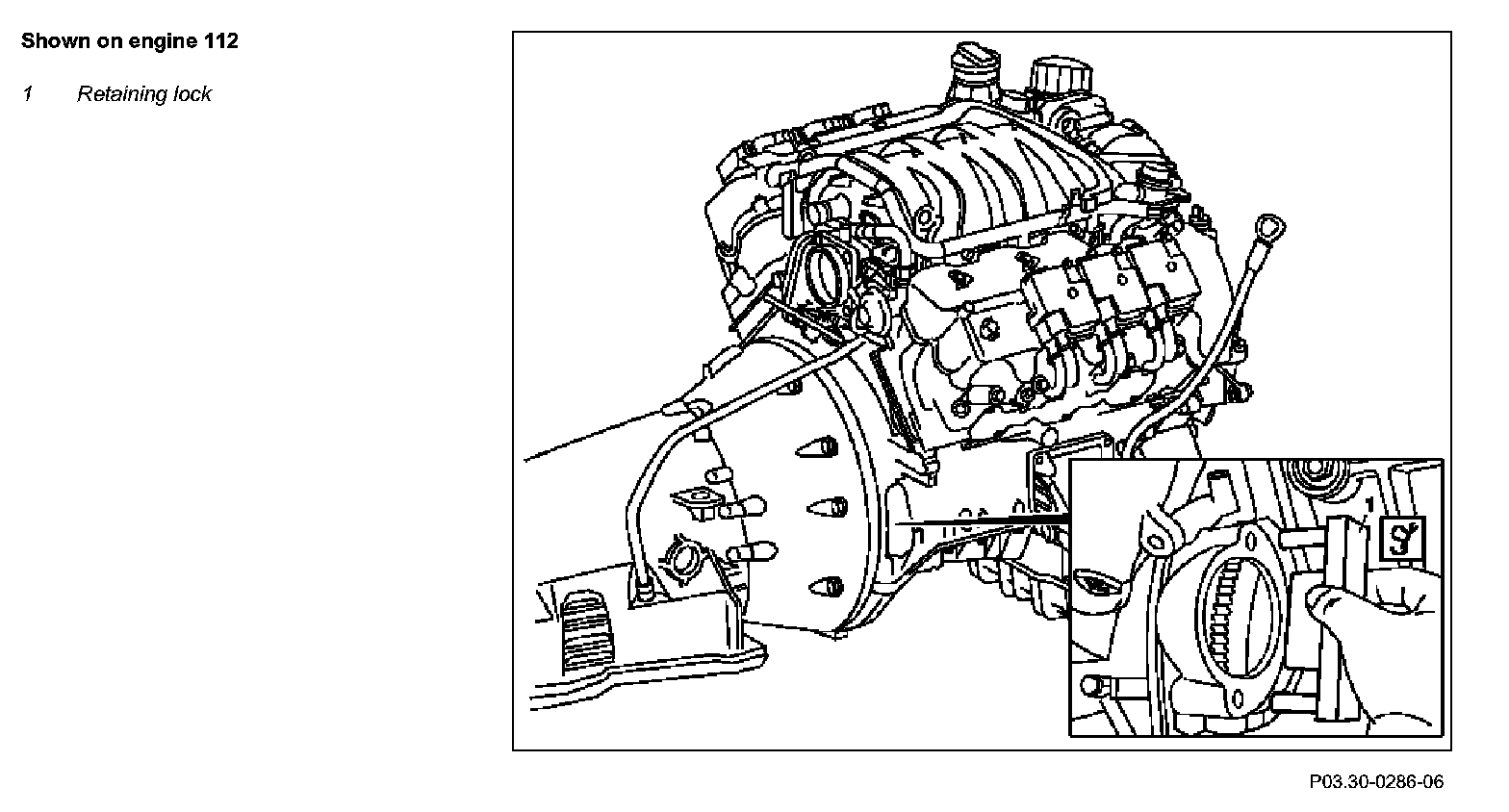

Component Identification:

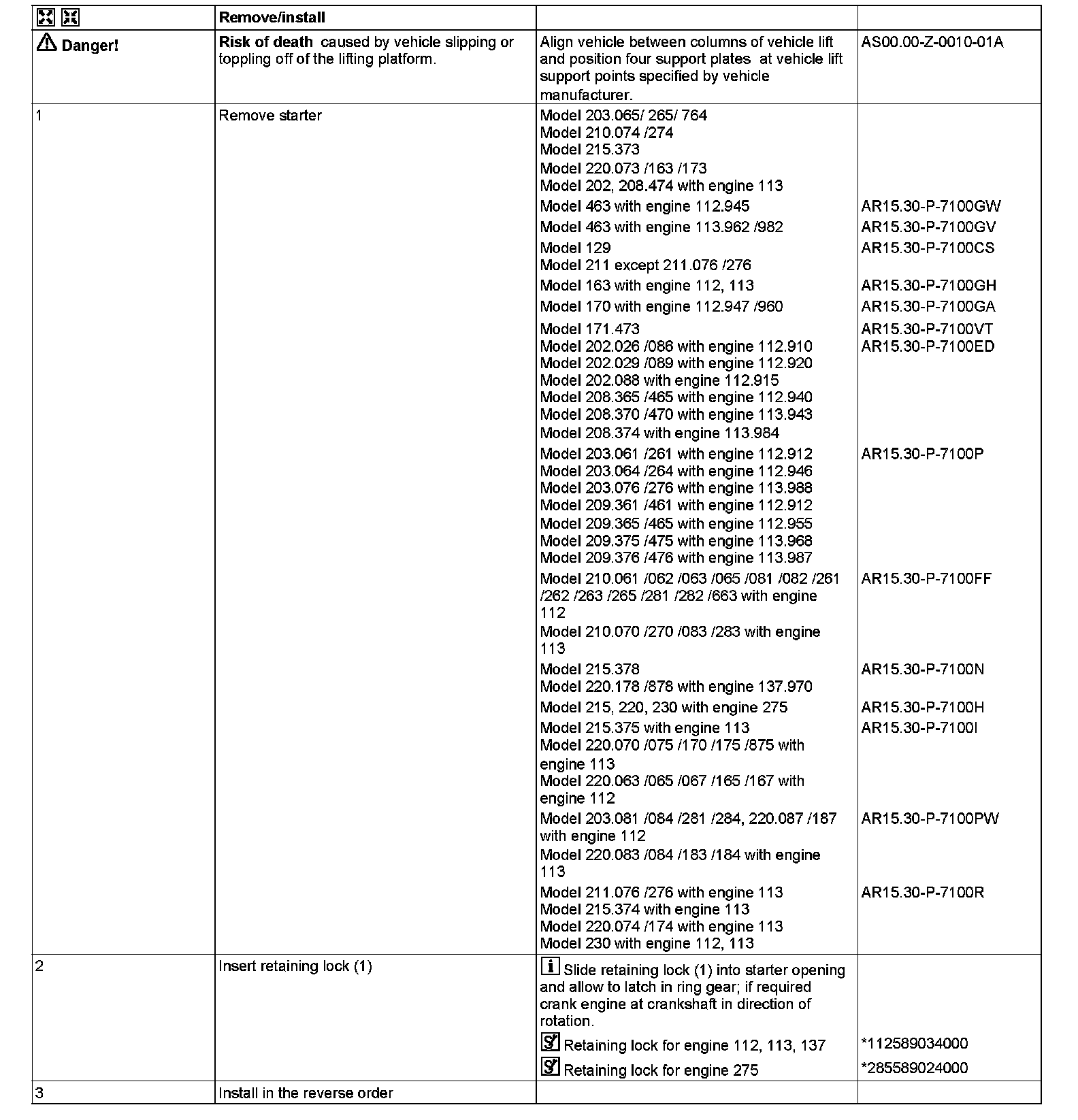

Steps 1-3:

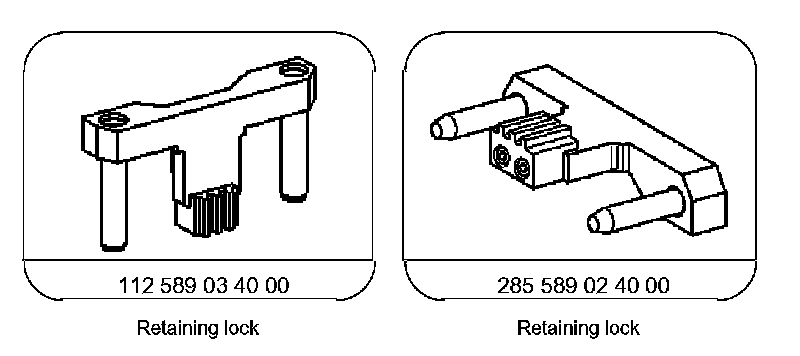

Special Tools:
