GF27.10-P-0001-01SXA Automatic Transmission (AT), Gear Ratios
GF27.10-P-0001-01SXA Automatic Transmission (AT), Gear Ratios

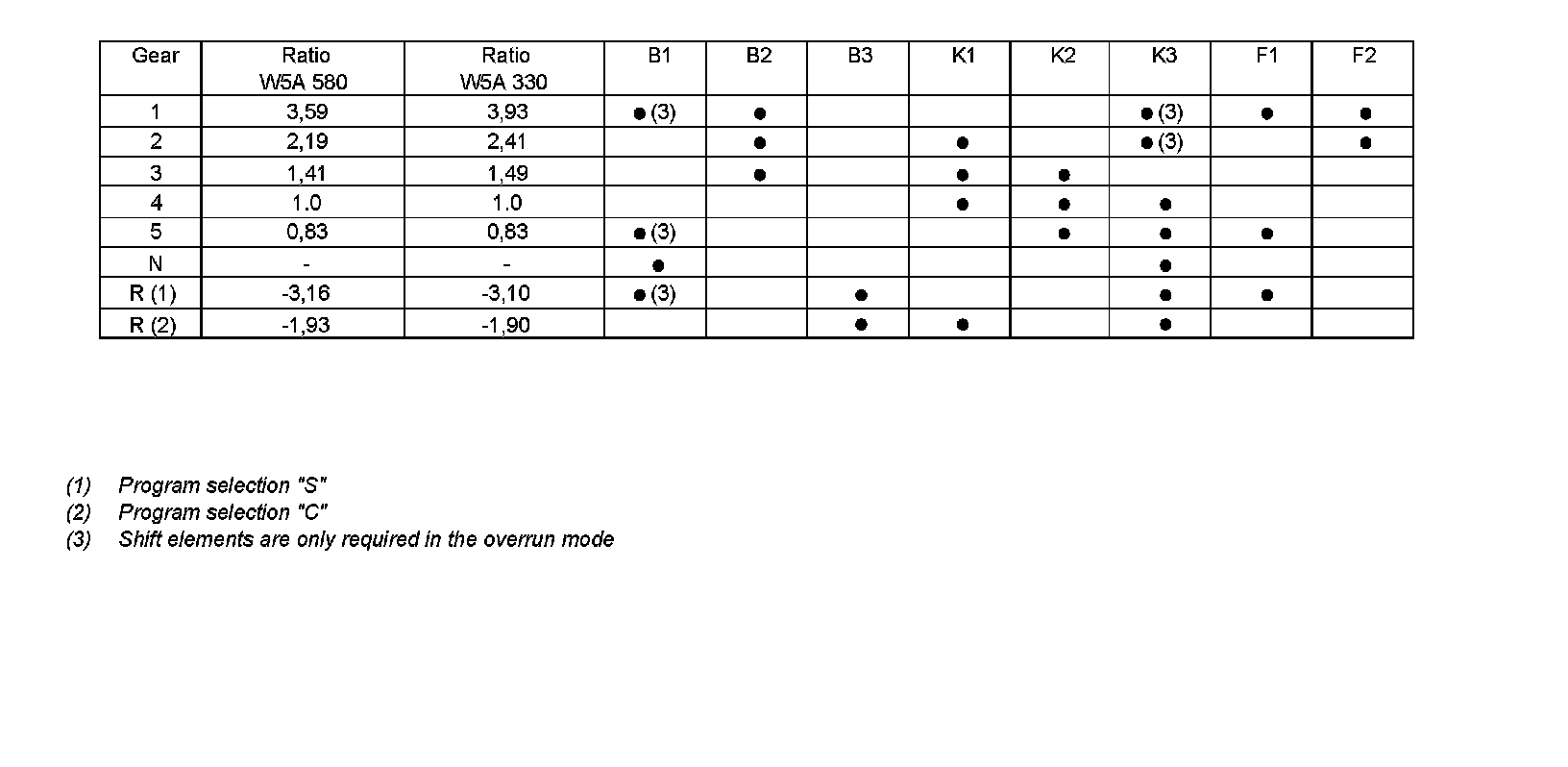

GF27.10-P-0001-01SXA Automatic transmission (AT), gear ratios
- Transmission 722.6
