GF80.50-P-6060CW Alarm Siren, Component Description

GF80.50-P-6060CW Alarm Siren, Component Description
- with CODE (551) Anti-theft alarm system (ATA [EDW])

Component Identification:

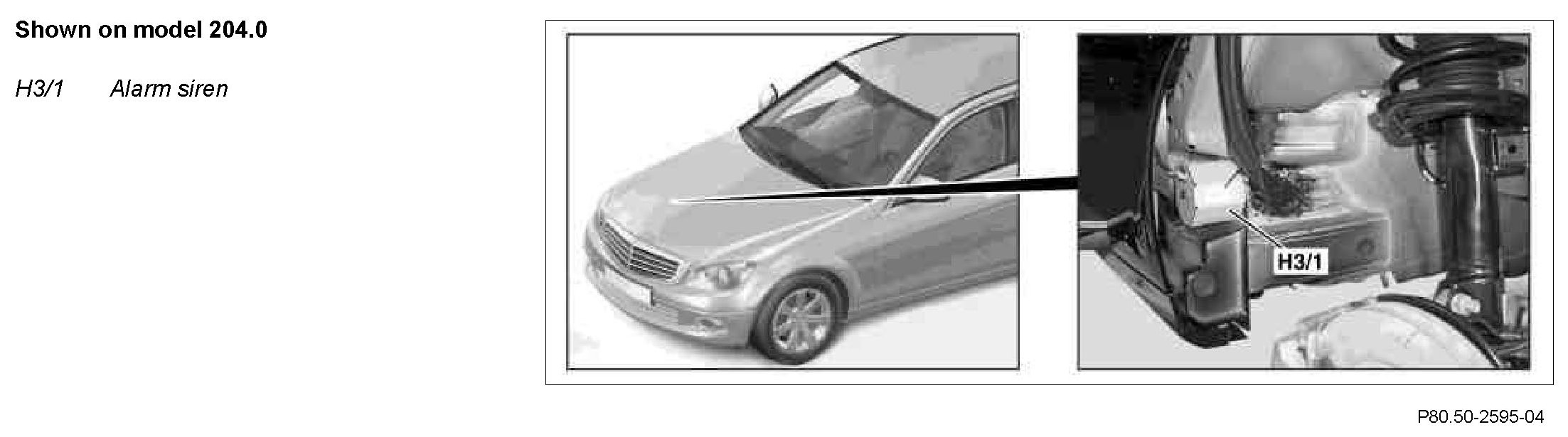

Location
The alarm siren is located in the front wheelhouse on the passenger side

Design
The alarm siren includes:
^ Rechargeable battery for ensuring power supply
^ Inclination sensor to analyze vehicle inclination (not United States of America , Canada and Japan)
^ Speaker for acoustic alarm output

Tasks
^ Acoustic alarm output for anti-theft alarm (ATA)
^ Automatic alarm output in the event of loss of supply voltage or communication
^ Monitoring vehicle inclination to realize tow-away protection (not United States of America , Canada and Japan)
