GF82.70-P-5003CWJ Communication Control Unit, Component Description

GF82.70-P-5003CWJ Communication Control Unit, Component Description
- with CODE (498) Japan version

Component Identification:

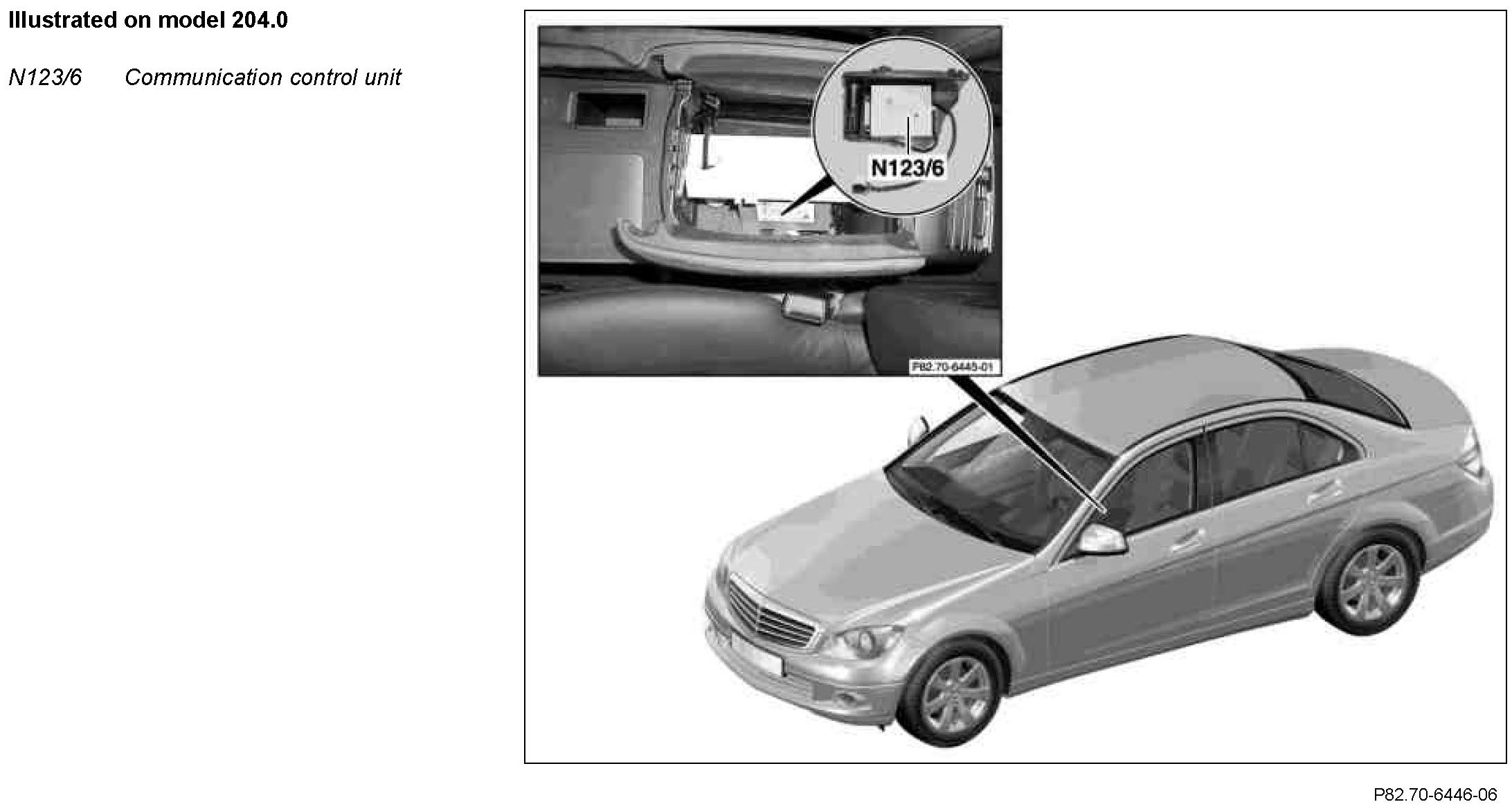

Location
The communication control unit is located under the armrest's telephone compartment in the center console.

Task
The communication control unit sets up a connection for the COMAND controller unit (A40/3) to the mobile phone connected to the mobile phone electrical connector (X39/37) and vice versa, in other words all mobile phone signals or data from and to the mobile phone are sent via the communication control unit.
