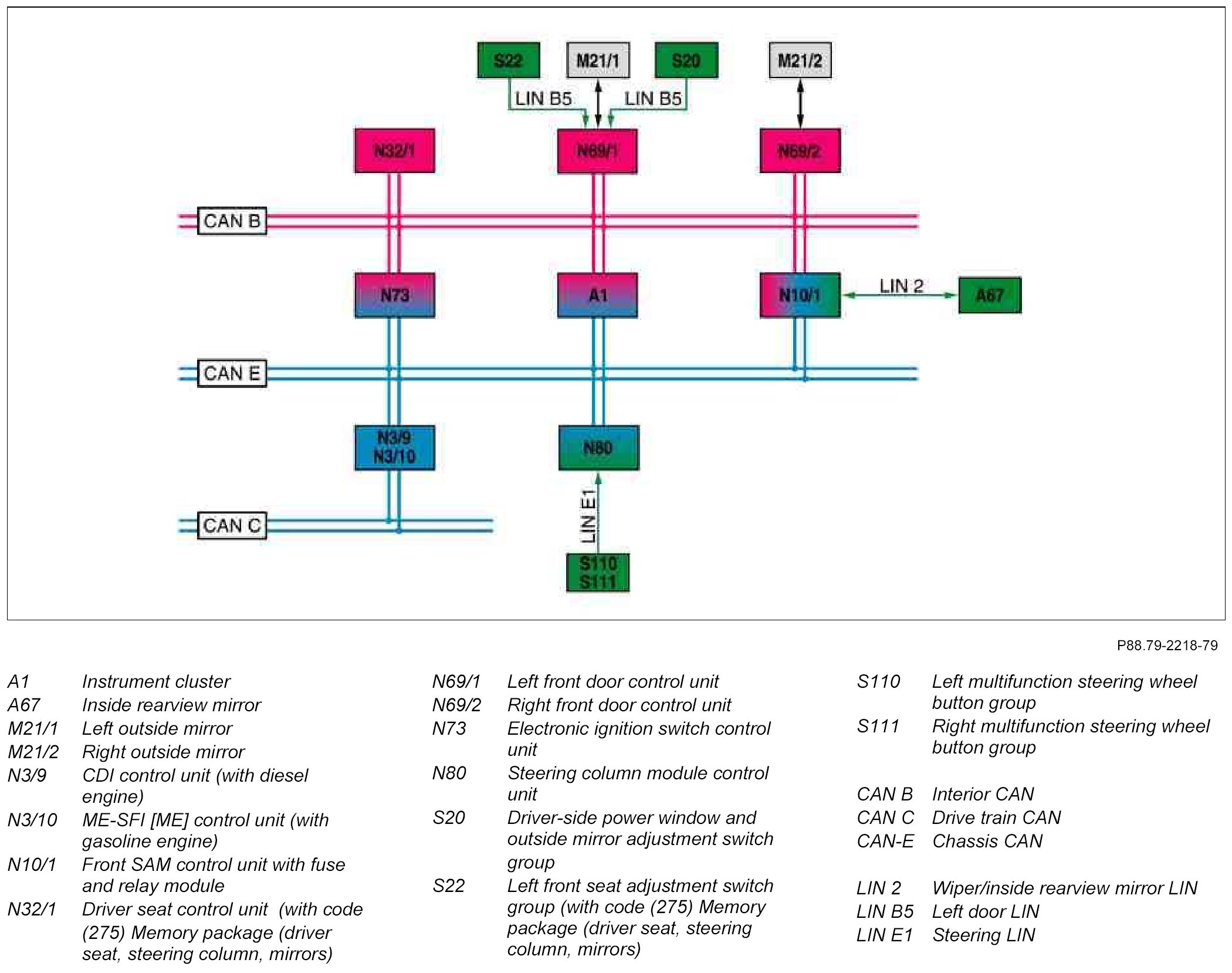

GF88.79-P-0003-02CW Electric Outside Mirror, Block Diagram
GF88.79-P-0003-02CW Electric Outside Mirror, Block Diagram
GF88.79-P-0003-02CW Electric Outside Mirror, Block Diagram
- up to model year 08
Component Identification:
