GF91.29-P-5213CW Seat Adjustment Motor Component Description

GF91.29-P-5213CW Seat Adjustment Motor Component Description

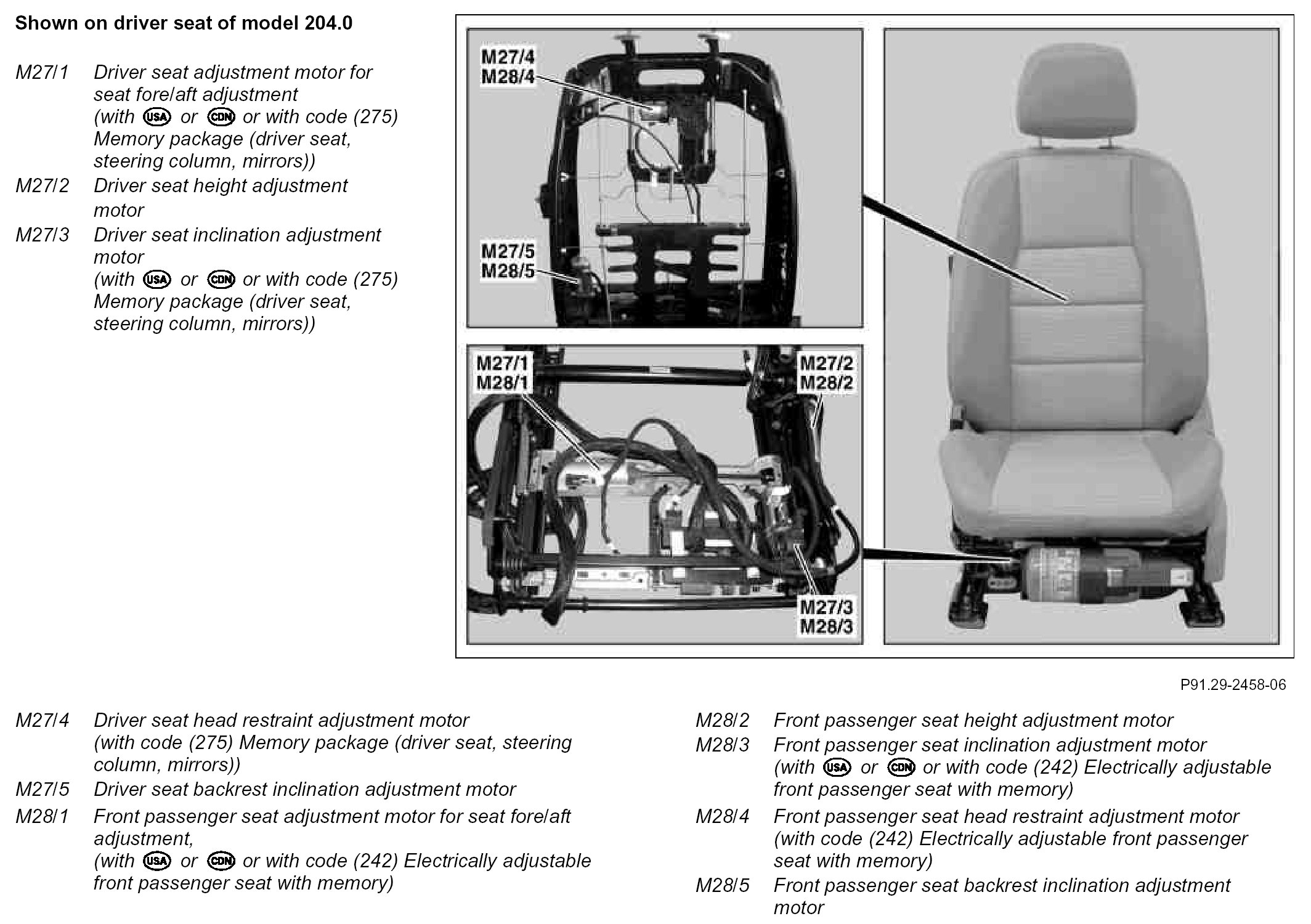

Component Identification:

Location
The motors are mounted in each seat at the bottom of the seat frame and in the backrest.

Task
Realization of the following adjustments:
^ Backrest adjustment
^ Seat height adjustment
^ Seat fore/aft adjustment
- Driver seat (with (United States Of America) or (Canada) or with code (275) Memory package (driver seat, steering column, mirrors))
- Front passenger seat (with (United States Of America) or (Canada) or with code (242) Electrically adjustable front passenger seat with memory)

^ Seat cushion inclination adjustment
- Driver seat (with (United States Of America) or (Canada) or with code (275) Memory package (driver seat, steering column, mirrors))
- Front passenger seat (with (United States Of America) or (Canada) or with code (242) Electrically adjustable front passenger seat with memory)

^ Head restraint adjustment
- Driver seat (with code (275) Memory package (driver seat, steering column, mirrors))
- Front passenger seat (with code (242) Electrically adjustable front passenger seat with memory)

Function without code (275) Memory package (driver seat, steering column, mirrors)
The seat adjustment motors are directly actuated via the switches:
^ Left front seat adjustment switch group (S22) (with (United States Of America) and without (Canada))
^ Driver seat partially electric seat adjustment switch (S22/1) (without (United States Of America) and without (Canada))
^ Right front seat adjustment switch group (S23) (with (United States Of America) or (Canada))
^ Front passenger seat partially electric seat adjustment switch (S23/1) (without (United States Of America) and without (Canada))

Function with code (275) Memory package (driver seat, steering column, mirrors) or with code (242) Electrically adjustable front passenger seat with memory
The seat adjustment motors are actuated by the driver seat control unit (N32/1) or the front passenger seat control unit (N32/2). A Hall sensor is located on each seat adjustment motor for position recognition.
