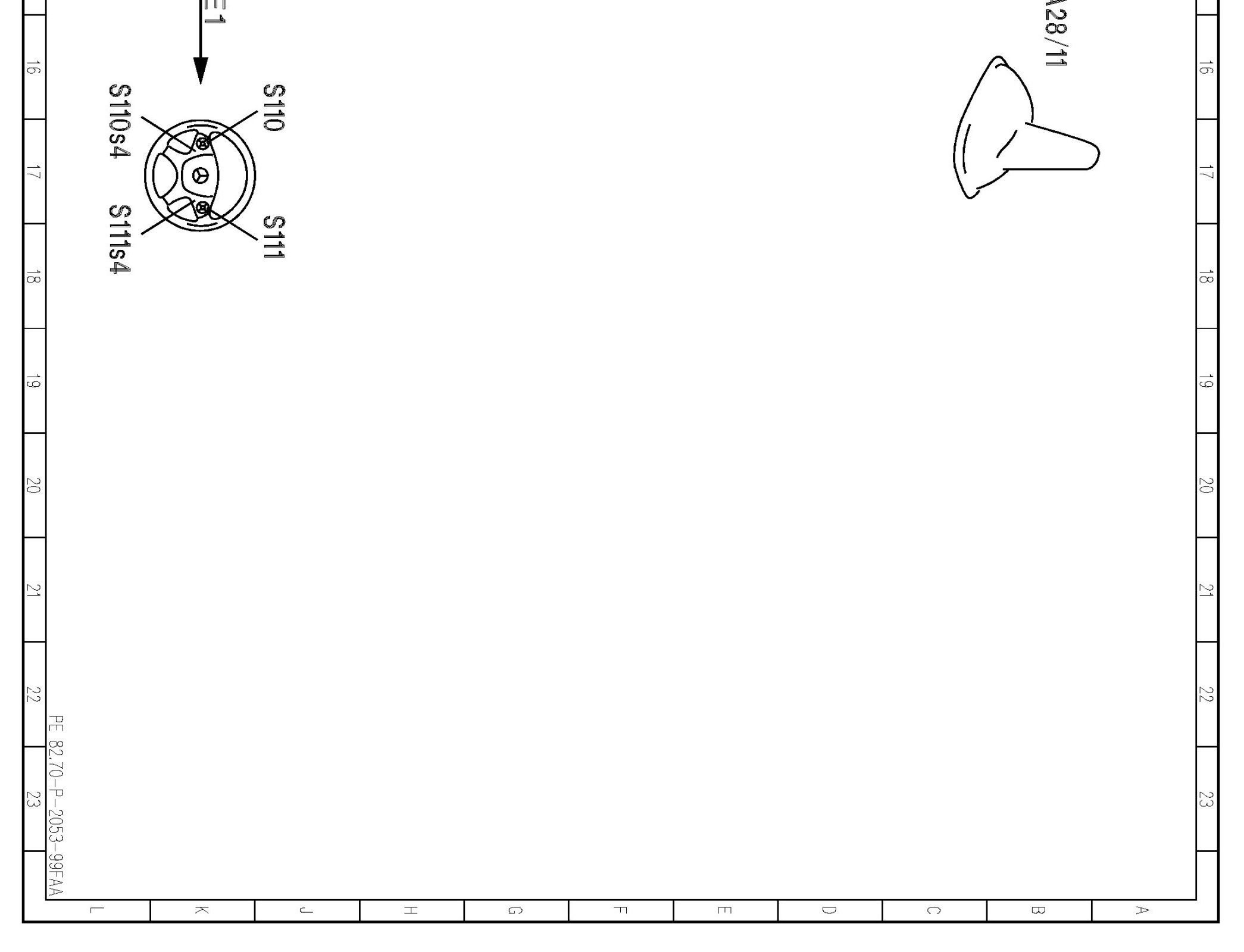

PE82.70-P-2053FAA Electrical Function Schematic For Mobile Phone, Establishing A Call, Ending, Accepting

PE82.70-P-2053FAA Electrical Function Schematic For Mobile Phone, Establishing A Call, Ending, Accepting

MODEL 204
- with CODE (512) COMAND APS with DVD changer
- with CODE (810) Sound system
- with CODE (386) Mobile phone
- up to model year 08 /YoM 07 Comfort telephony











































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
