PE88.79-P-2053FAA Function Schematic For Electric Mirror Folding

PE88.79-P-2053FAA Function Schematic For Electric Mirror Folding

MODEL 204
- with CODE (249) Automatically dimming inside rearview mirror and outside mirror (driver)
- up to model year 08 /YoM 07

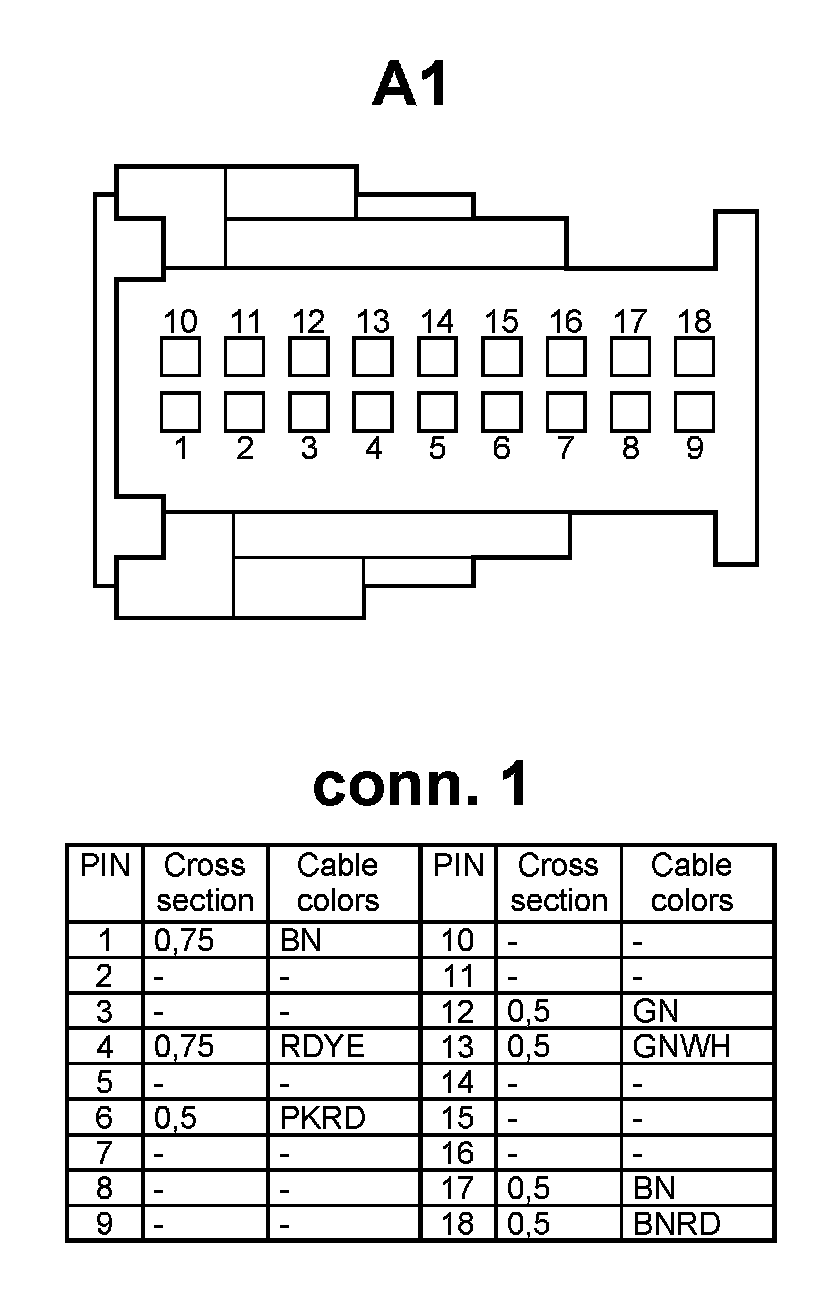

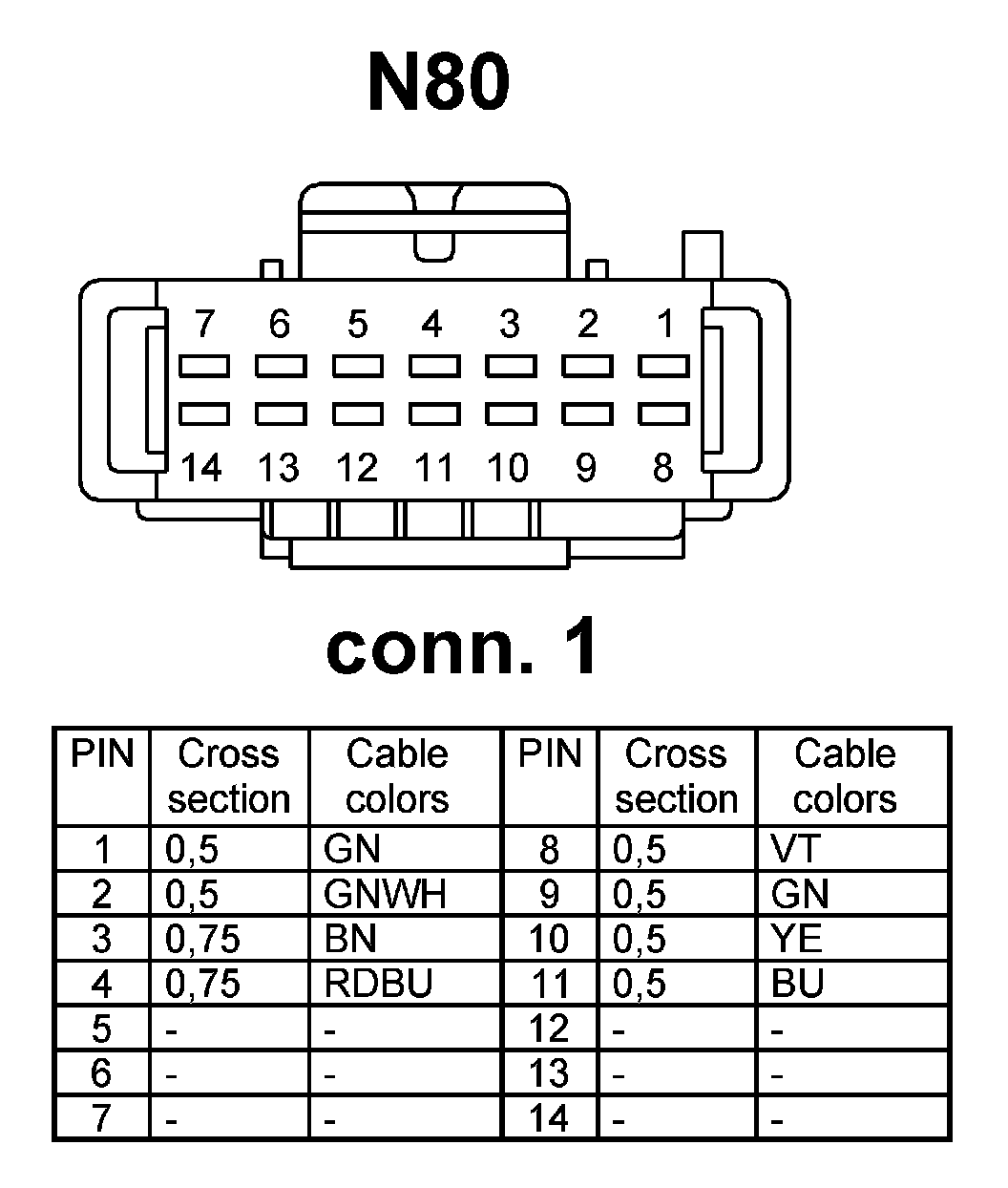

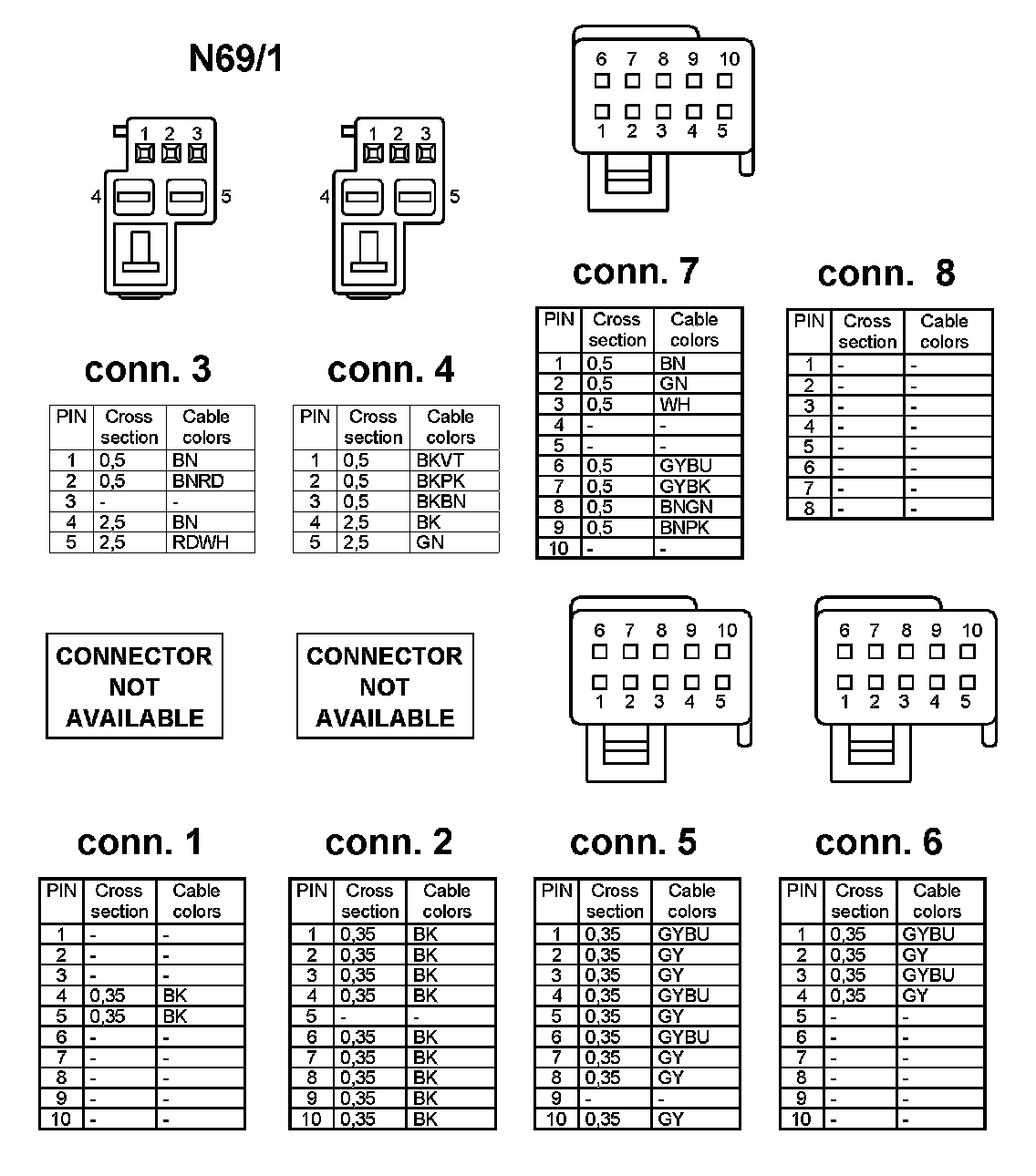

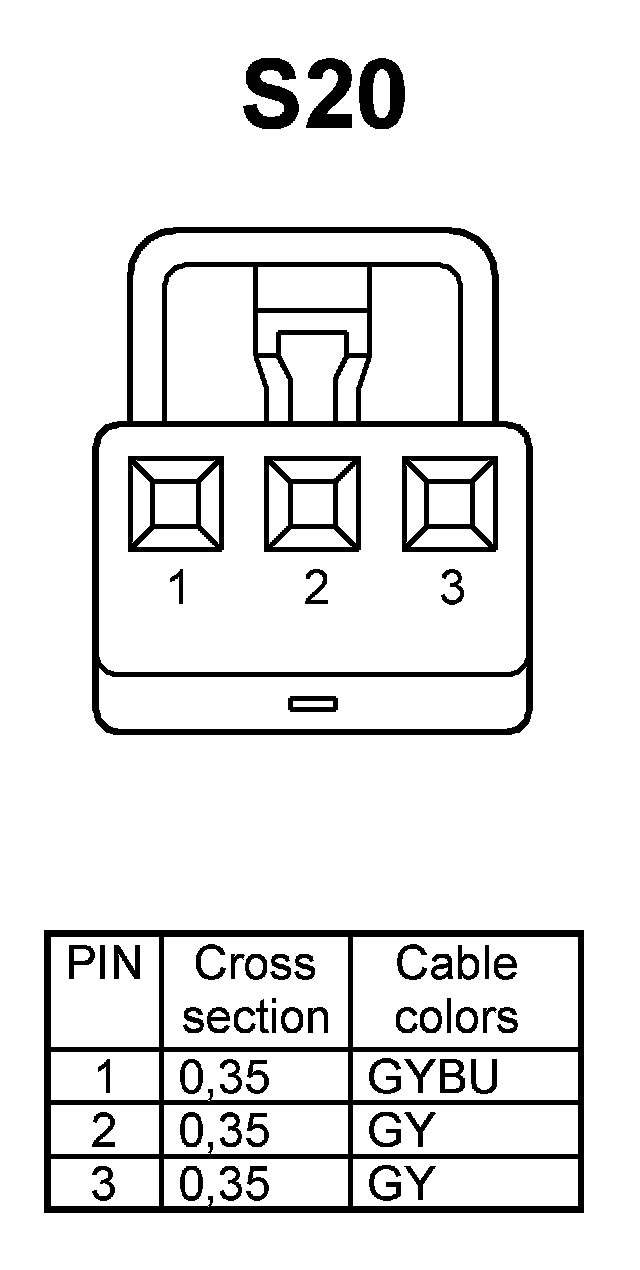

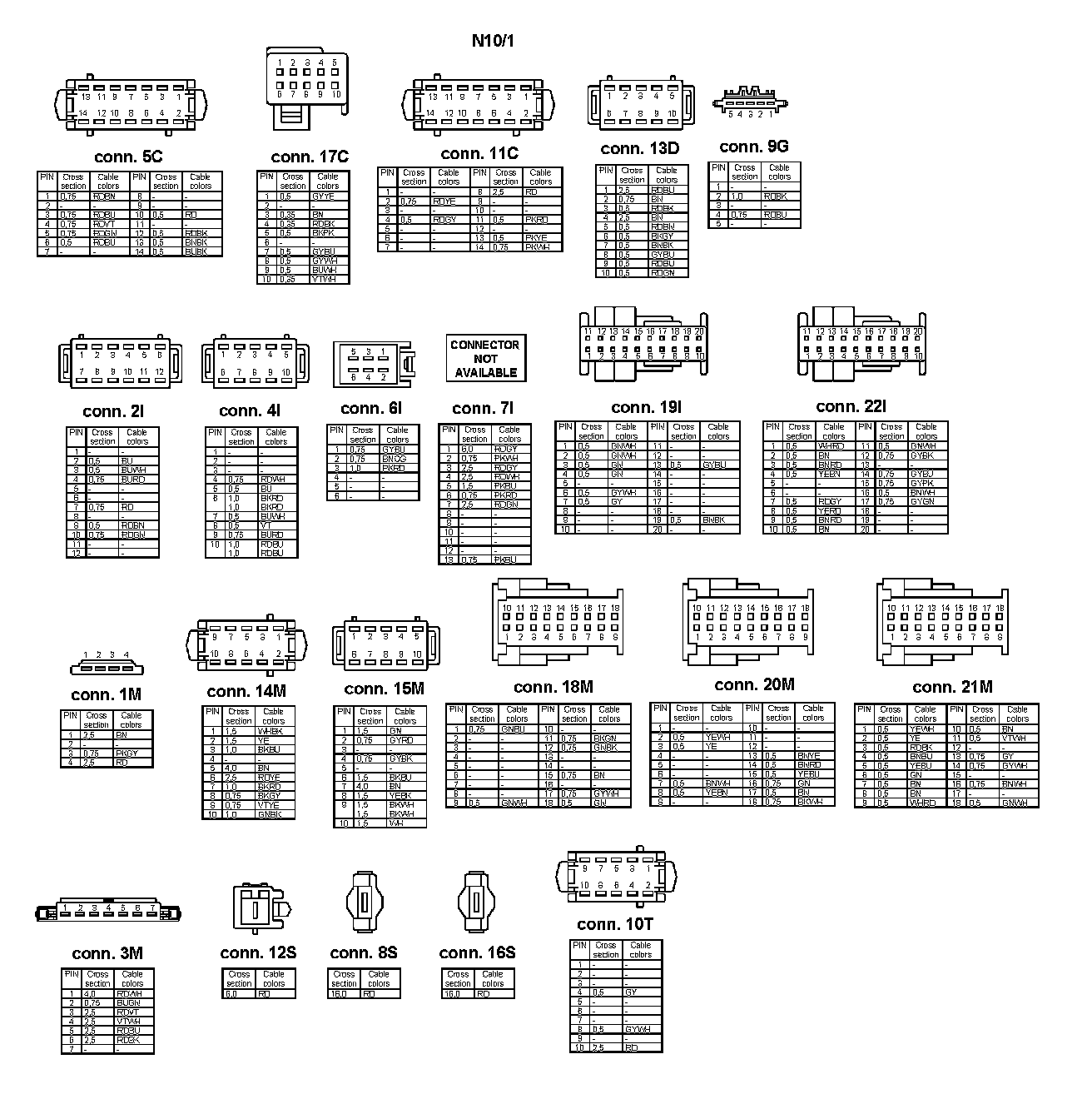

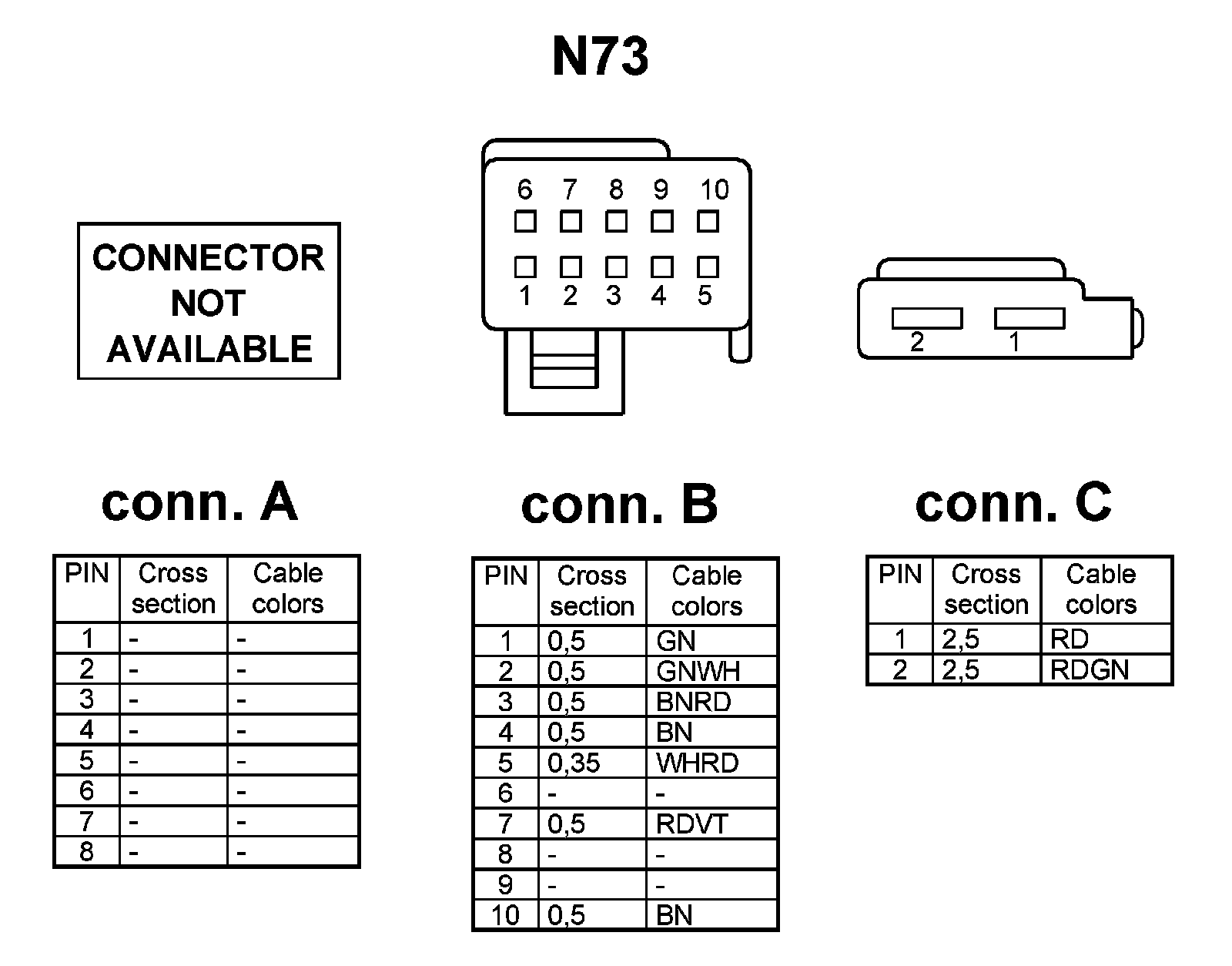

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
