GF83.10-P-2050CW Blower, Component Description

GF83.10-P-2050CW Blower, Component Description

Component Identification:

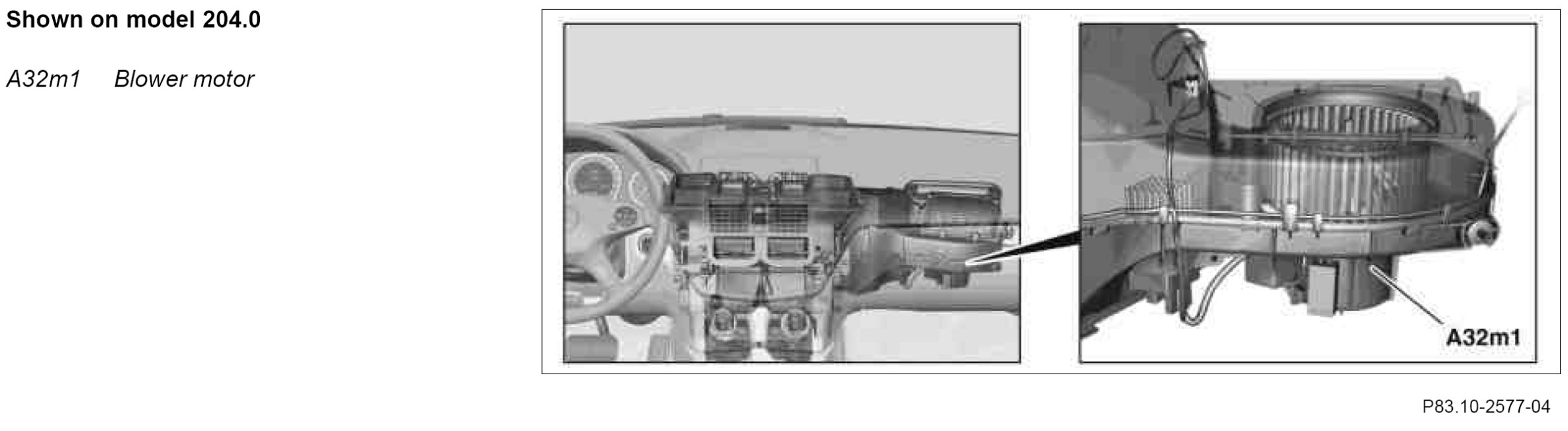

Location
The blower motor is located on the right below the glove compartment in the air conditioner housing.

Task
The blower motor delivers fresh air or air from the interior compartment depending on the position of the fresh air/air recirculation flap through the air conditioner housing into the vehicle interior.

Function
Depending on the blower stage, the automatic air conditioning control and operating unit (N22/7) transmits a signal to the blower regulator (A32n1). The blower regulator then regulates the operating voltage for the blower motor.
