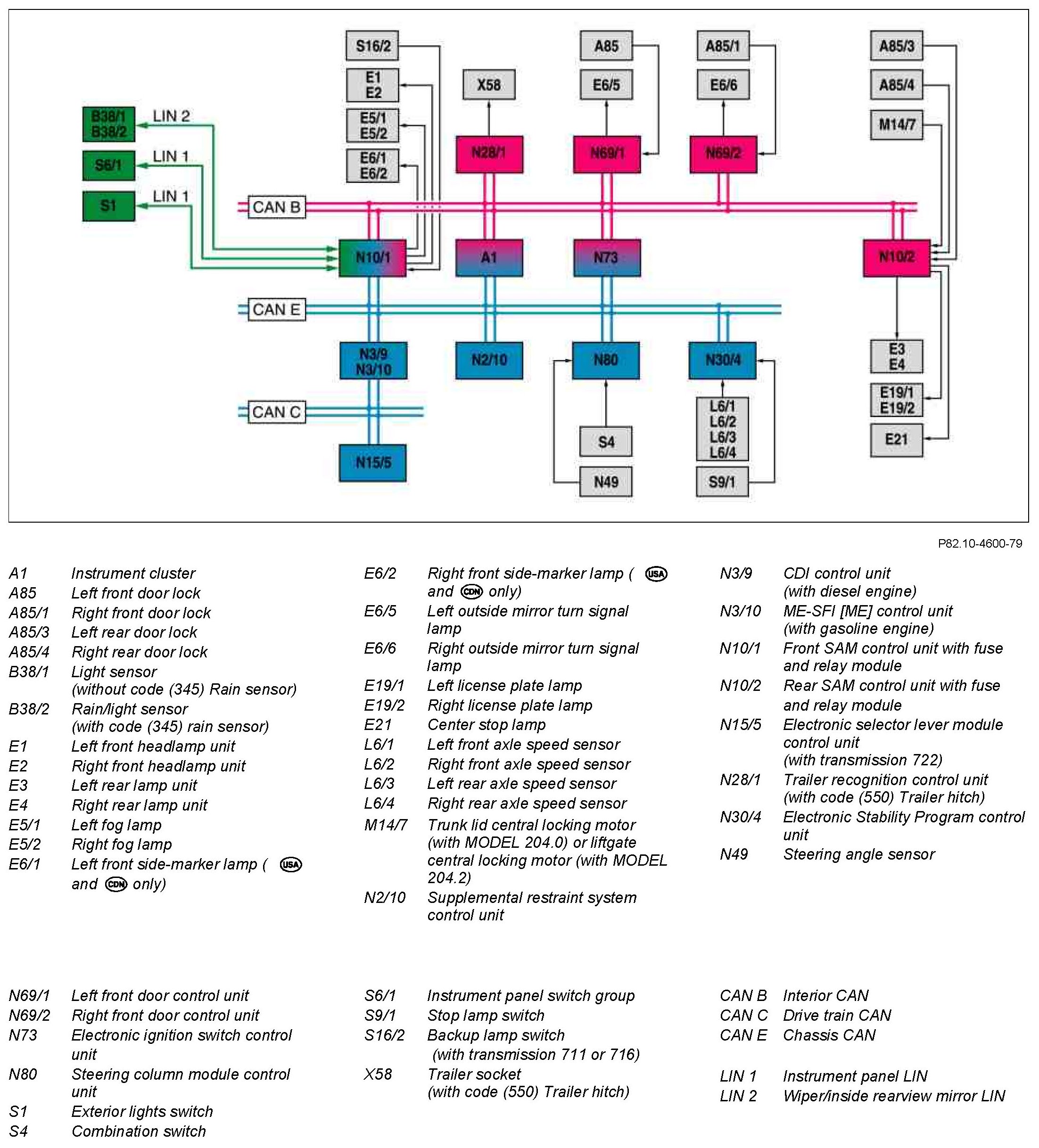

GF82.10-P-0003-03CW Block Diagram of Exterior Lights
GF82.10-P-0003-03CW Block Diagram Of Exterior Lights
- except CODE (614) Bi-xenon headlamp unit
- except CODE (622) Intelligent Light System (right-hand traffic)
Component Identification:
GF82.10-P-0003-03CW Block Diagram Of Exterior Lights
- except CODE (614) Bi-xenon headlamp unit
- except CODE (622) Intelligent Light System (right-hand traffic)
