AP91.40-P-9150CW Check Seat Belts and Seat Belt Buckles For External Damage and Operation



AP91.40-P-9150CW Check Seat Belts And Seat Belt Buckles For External Damage And Operation

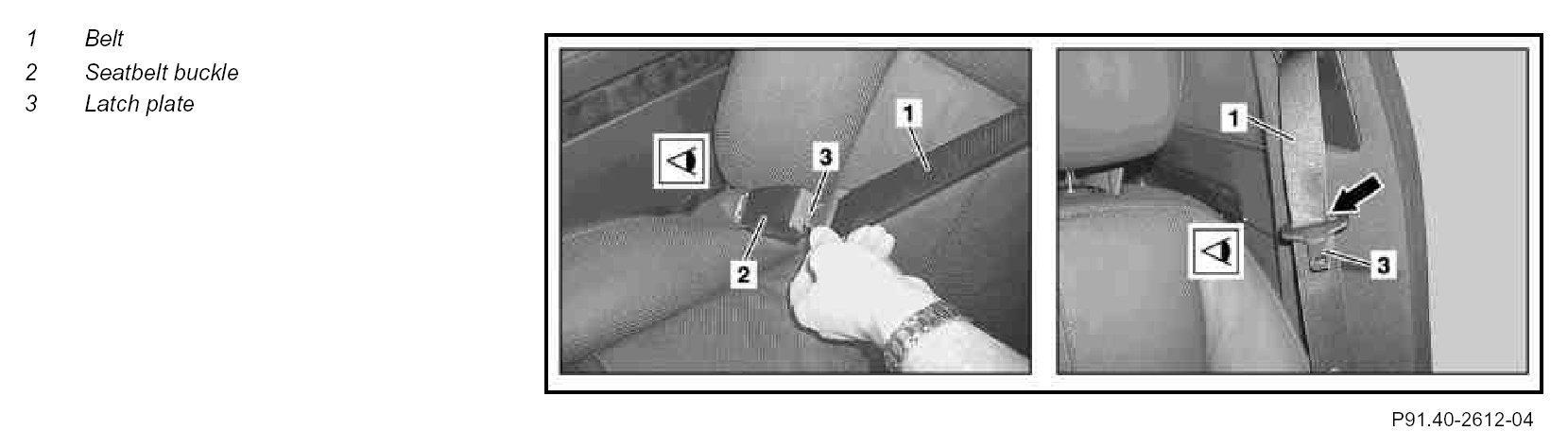

Component Identification:

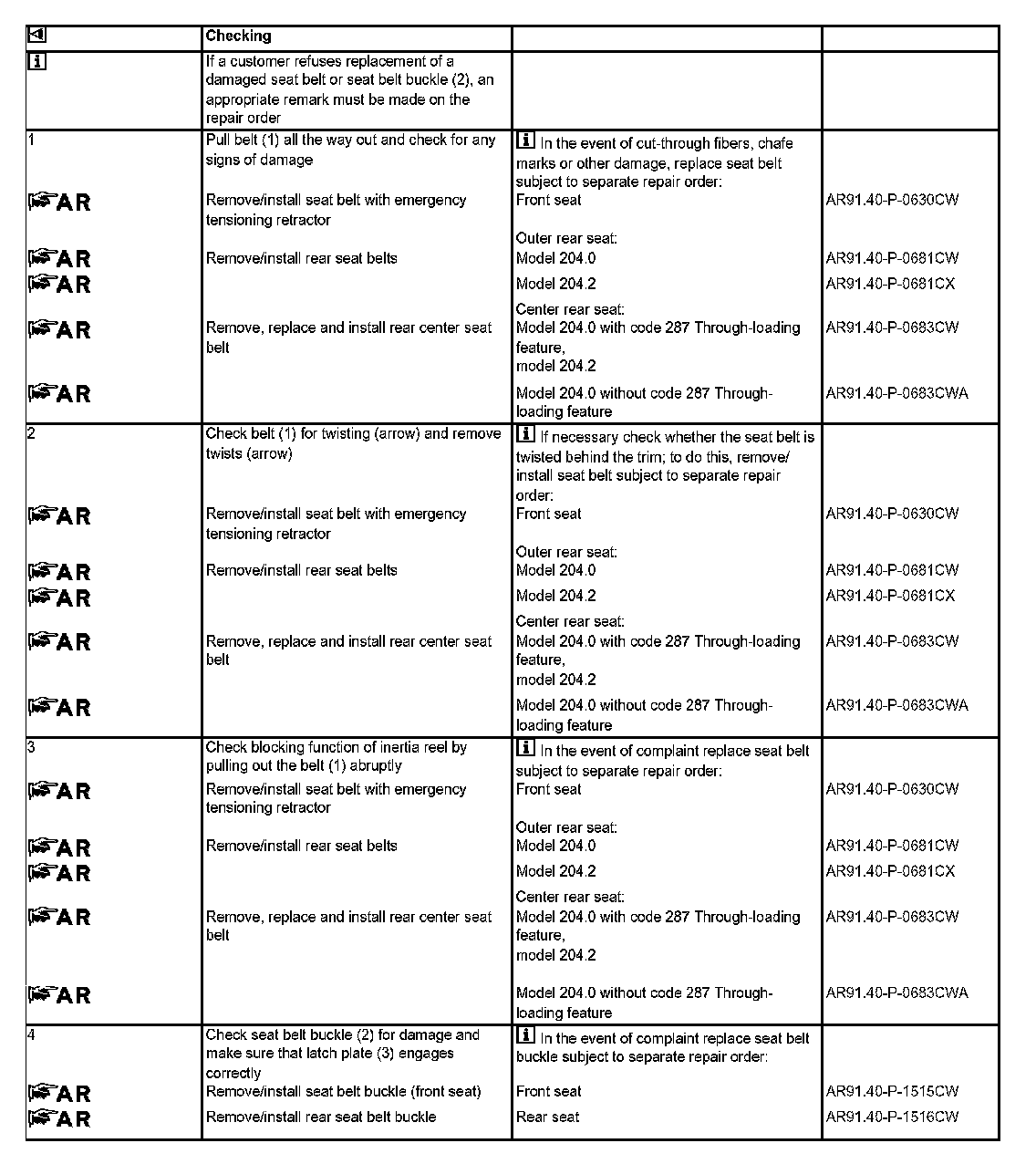

Steps 1 - 4:
