GF27.10-P-0001-02CW Automatic Transmission (AT), Driver Information

GF27.10-P-0001-02CW Automatic transmission (AT), driver information
- Transmission 722.6 in MODEL 204.0 except CODE (494) USA version up to Model Year 8

Component Identification:

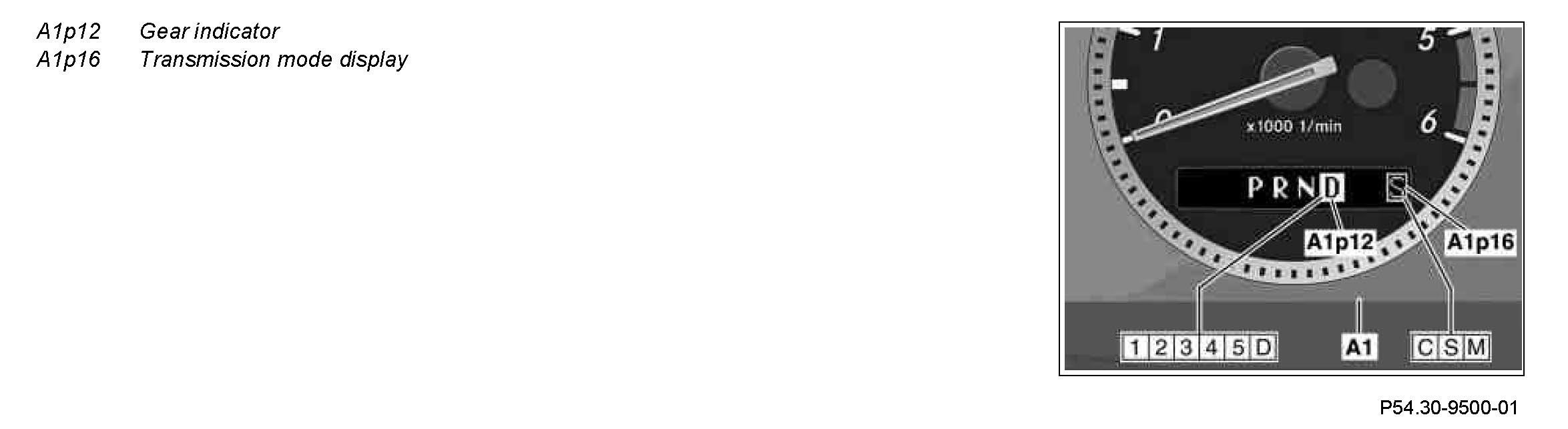

Gear indicator in instrument cluster (A1) in sport mode "S" and in comfort mode "C"
It shows the driver the currently selected shift range "1", "2", "3", "4" or the gear selector switch position "D", "R", "N" (neutral) or "P" (park)

Gear indicator in the instrument cluster in manual program "M"
It shows the driver the engaged gear "1", "2", "3", "4", "5".

Transmission mode display in instrument cluster
It shows the driver the program selection "S" (Sport program), "C" (Comfort program) or "M" (Manual program) performed at the automatic transmission mode button (S16/12).
