GF27.10-P-0001-04CWQ Automatic Transmission (AT), Location of Components, Floor Shift



GF27.10-P-0001-04CWQ Automatic transmission (AT), location of components, floor shift
- Transmission 722.6 in MODEL 204.0 up to Model Year 8

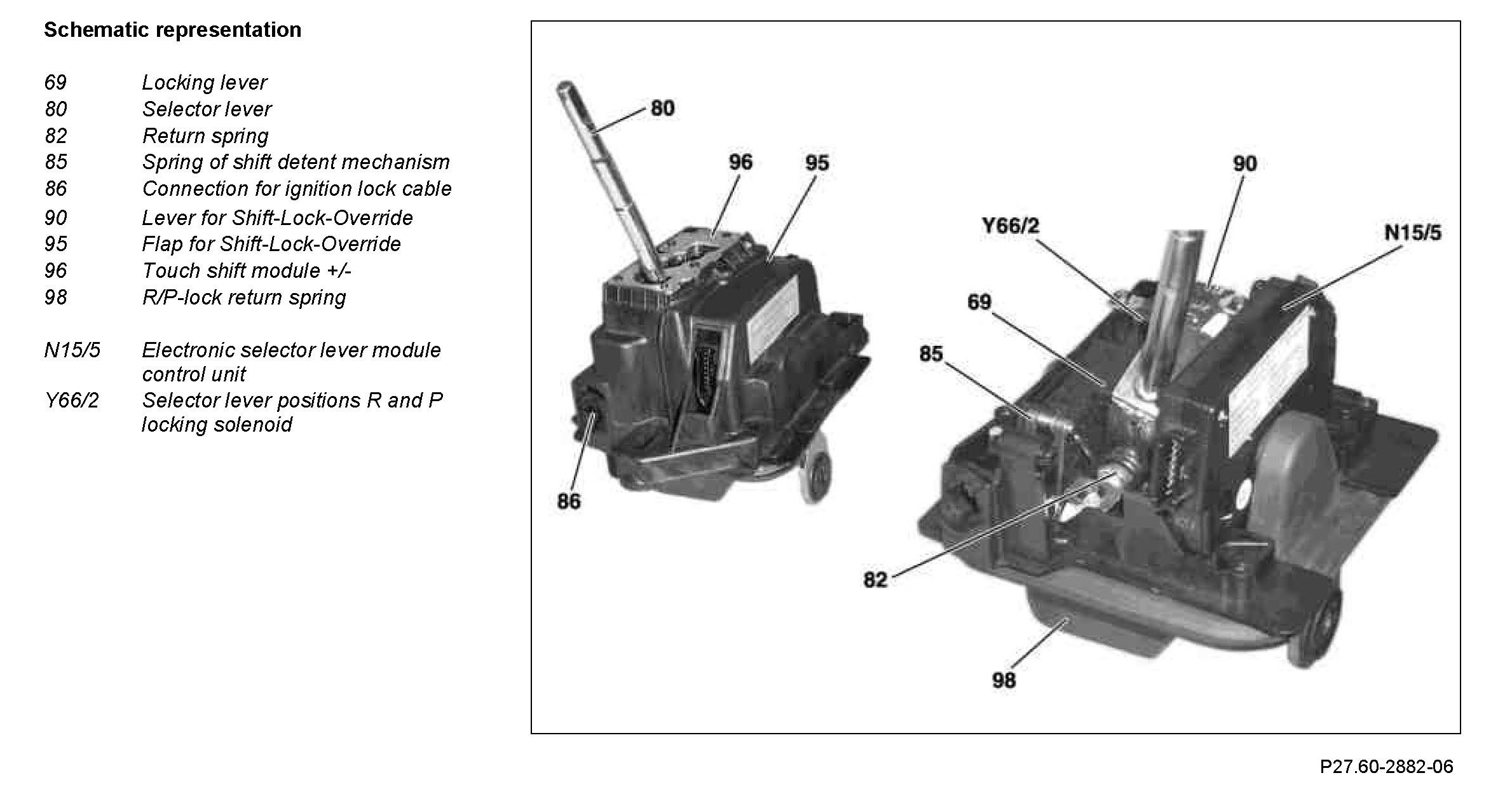

Component Identification:
