GF27.19-P-4017CWQ Transmission Oil Temperature Sensor, Component Description

GF27.19-P-4017CWQ Transmission oil temperature sensor, component description
- Transmission 722.9

Component Identification:

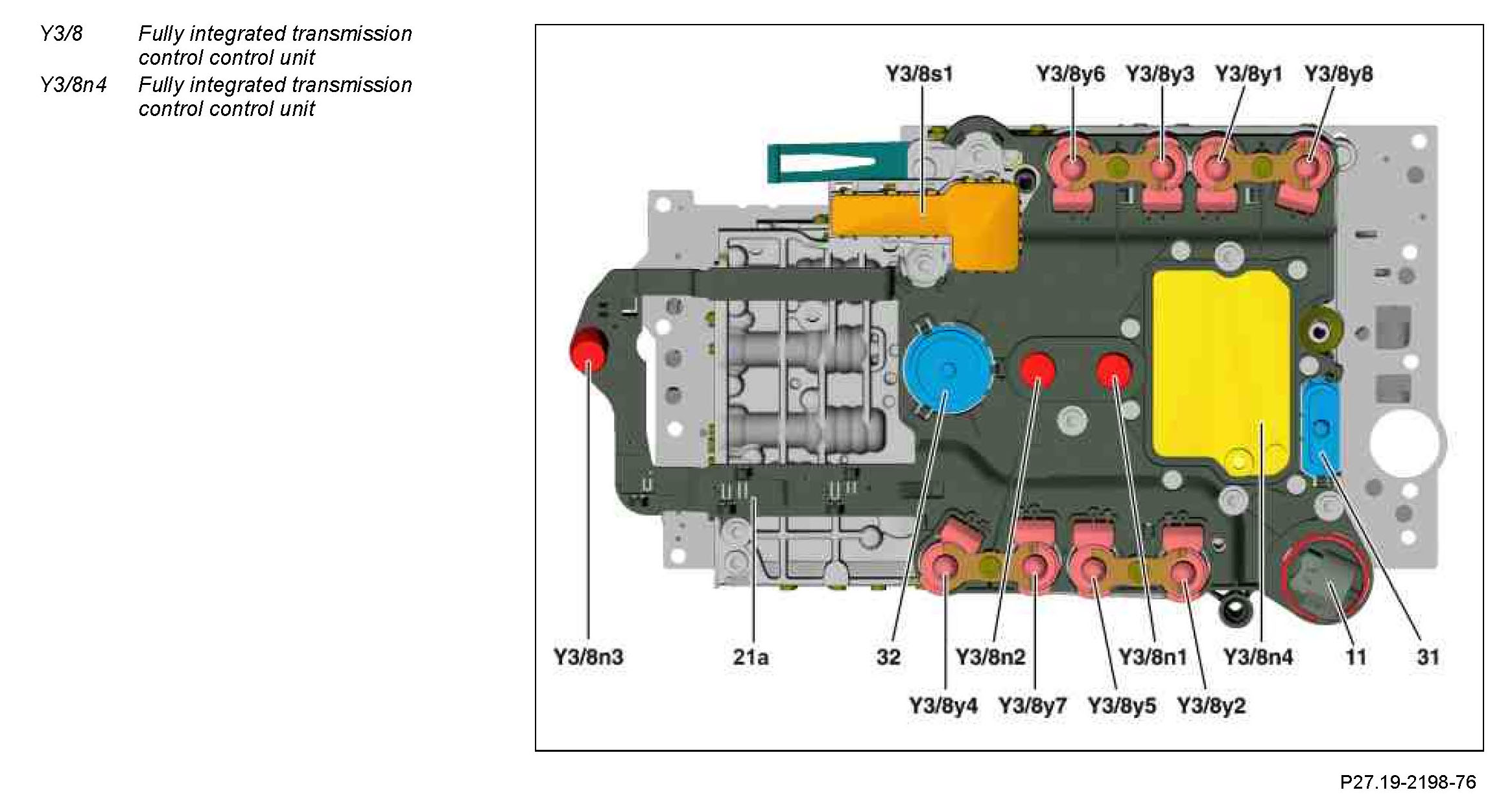

Location
The transmission oil temperature sensor (Y3/8s2) is integrated in the fully integrated transmission control control unit.

Task
The transmission oil temperature sensor detects the transmission oil temperature. This is processed as an input variable by the fully integrated transmission control control unit.

Design
The transmission oil temperature sensor has a measuring resistor with a negative temperature coefficient (NTC).
