GF27.19-P-5149CW Starter Lockout Contact, Component Description

GF27.19-P-5149CW Starter lockout contact, component description
- 722.6

Component Identification:

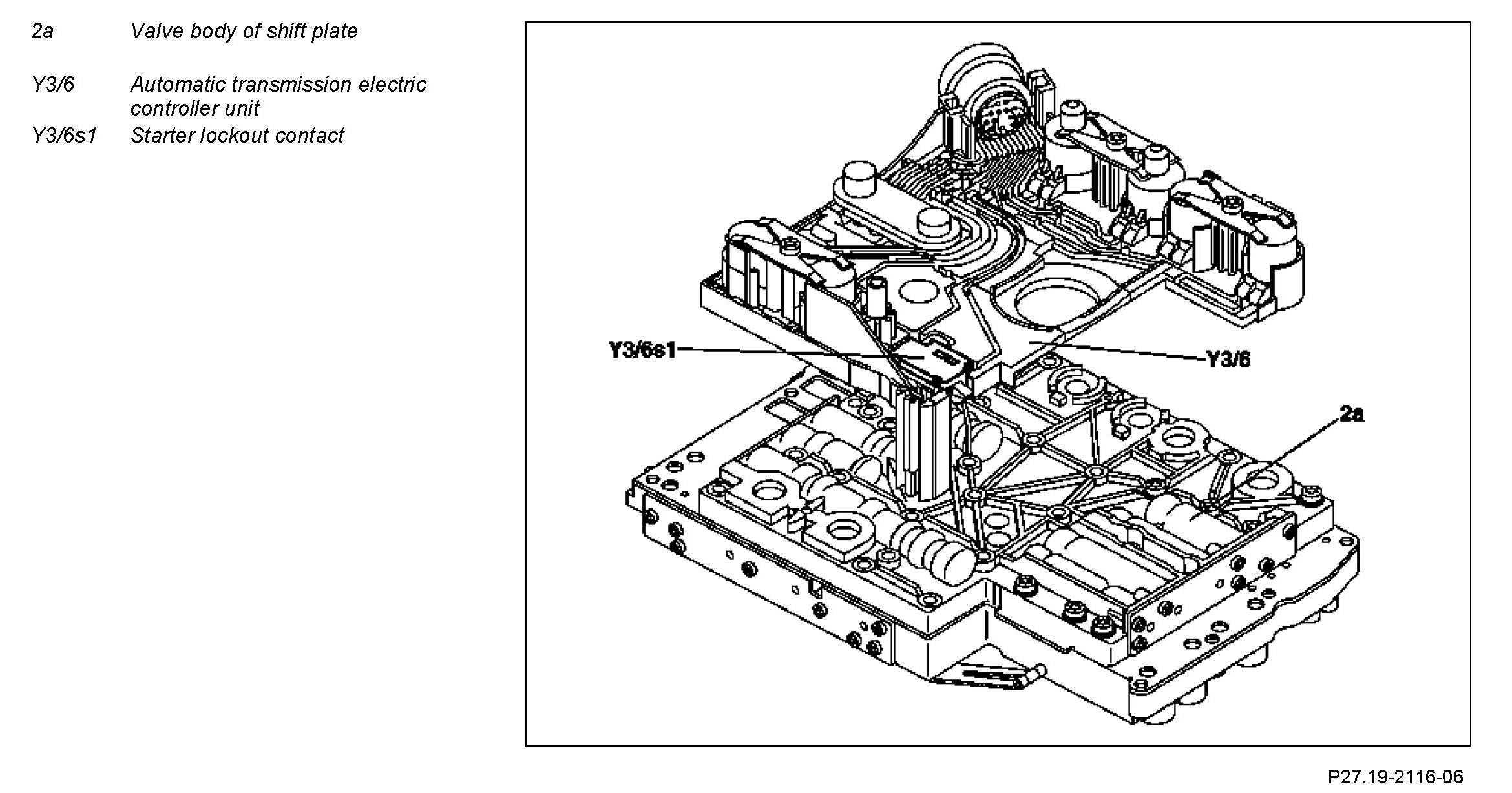

Location
The starter lockout contact is located in the automatic transmission electric controller unit and is permanently connected to the conductor tracks.

Task
The starter lockout contact detects the selector valve and gear selection switch positions "P" and N.

Component Identification:

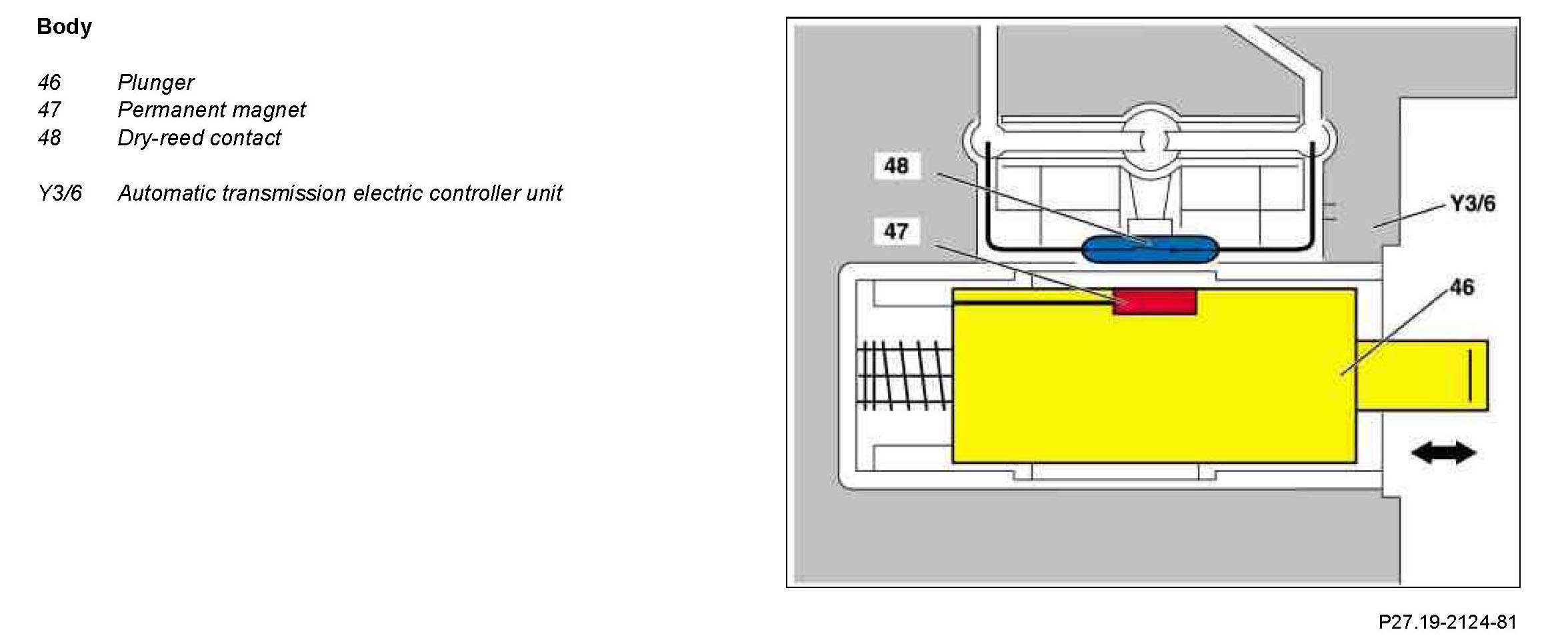

Function
The starter lockout contact is operated in gear selector switch positions "P" and N. As a result the permanent magnet is moved away by the dry-reed contact. The dry-reed contact is opened. The electronic transmission control control unit (N15/3) receives an electrical signal. The circuit to the starter is closed in gear selector switch positions "P" and N.
