GF27.60-P-5140CW Regulating Valve, Component Description

GF27.60-P-5140CW Regulating valve, component description
- TRANSMISSION 722.6
- Regelschieber Schaltventildruck

Component Identification:

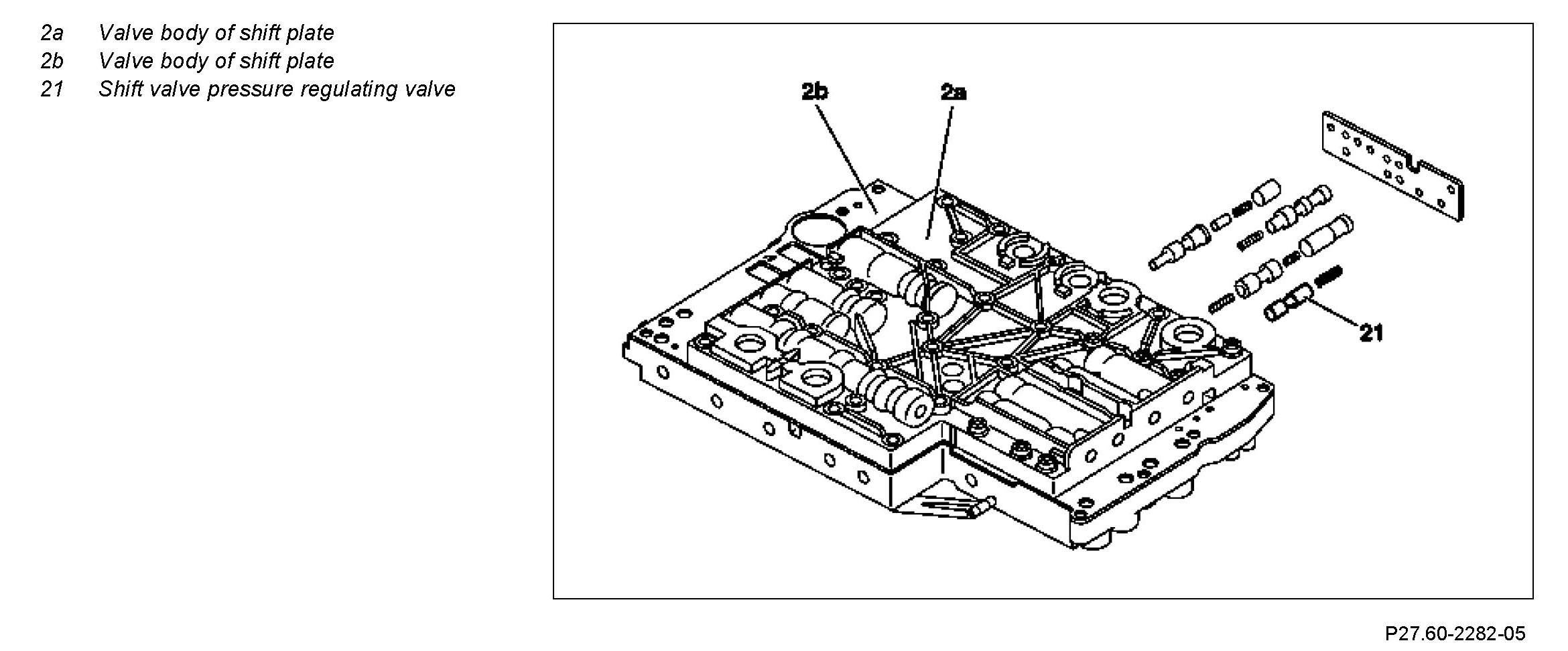

Location
The shift valve pressure regulating valve is located in the shift plate valve housing.

Task
It regulates the shift valve pressure.

Component Identification:

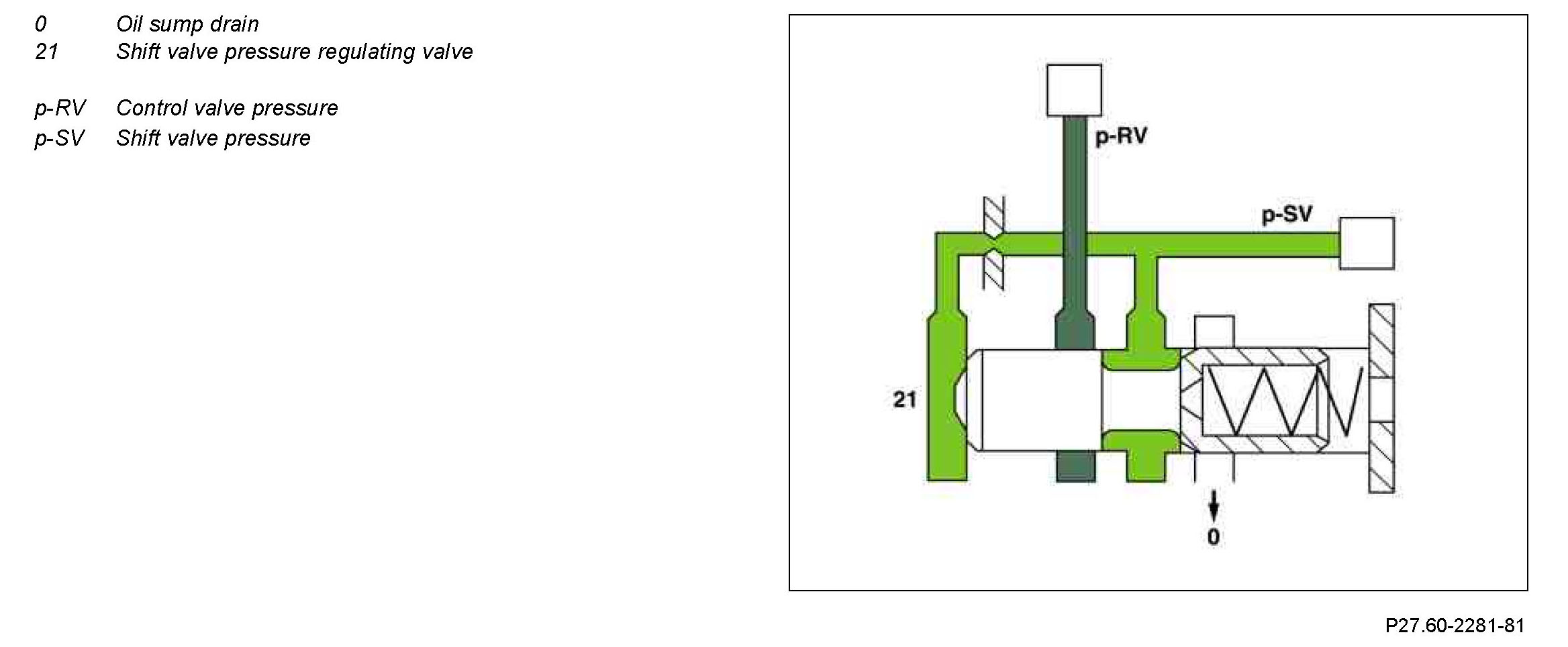

Function
The control valve pressure which is not constant is regulated to a constant shift valve pressure at the shift valve pressure regulating valve and used to supply the following solenoid valves:
^ 1-2 and 4-5 gearshift solenoid valve (Y3/6y3)
^ 3-4 gearshift solenoid valve (Y3/6y4)
^ 2-3 gearshift solenoid valve (Y3/6y5)
^ Torque converter lockup clutch control solenoid valve (Y3/6y6)
