GF27.60-P-5140CWA Regulating Valve, Component Description

GF27.60-P-5140CWA Regulating valve, component description
- TRANSMISSION 722.6
- Regelschieber Wandler�berbr�ckungskuppling

Component Identification:

Location

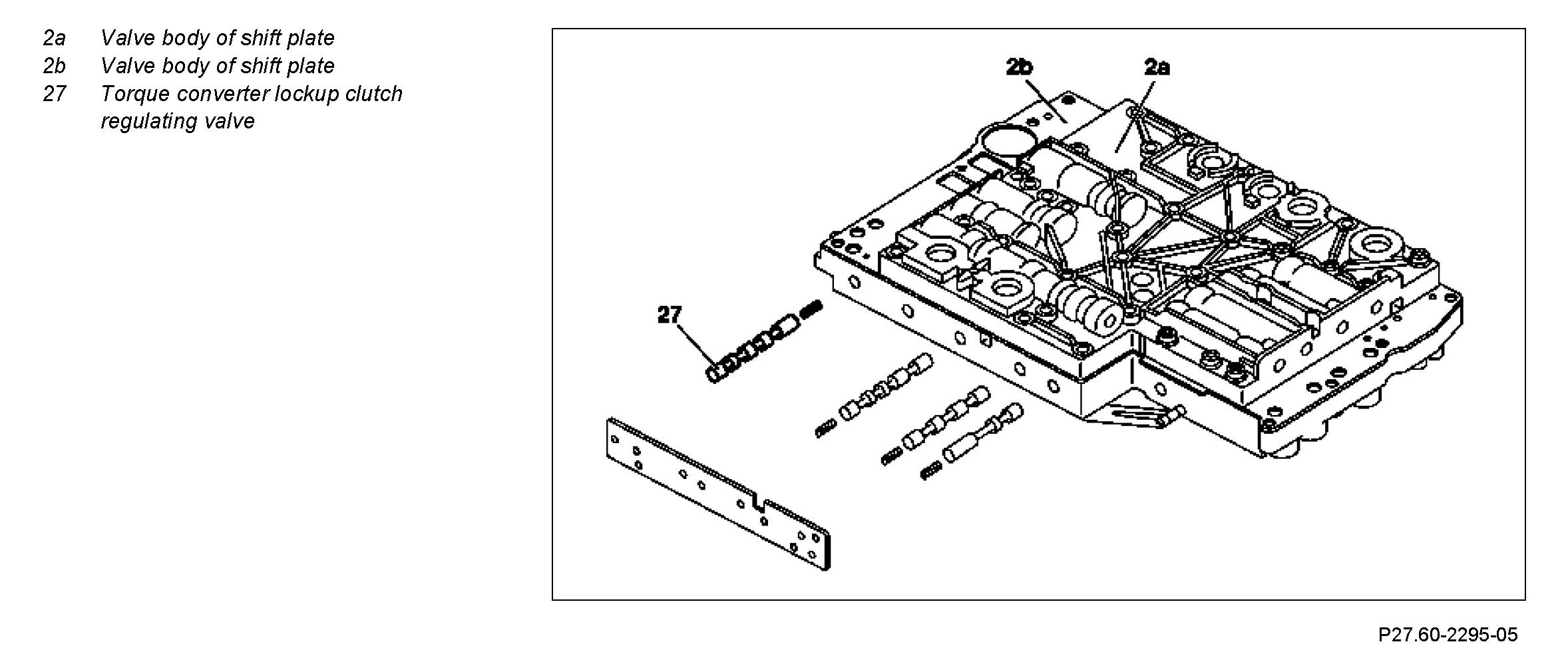

The torque converter lockup clutch regulating valve is located in the shift plate valve housing.

Task
It controls the hydraulic torque converter lockup clutch and distributes the lubricating oil.

Component Identification:

Function
The torque converter lockup clutch regulating valve regulates the converter lockup clutch working pressure depending on the torque converter lockup clutch control pressure.

Depending on the level of the torque converter lockup clutch working pressure the torque converter lockup clutch is engaged, disengaged or in slip mode.

In the lower position of the torque converter lockup clutch regulating valve lubricating oil flows through the torque converter and the oil cooler into the transmission 722.6 (torque converter lockup clutch unpressurized).

In its control position (slip mode, pressure applied to the torque converter lockup clutch) a reduced lubricating oil quantity flows through the annular gap while bypassing the converter directly through the oil cooler into the transmission 722.6. The other part of the lubricating oil is lead into the torque converter via the throttle to cool the torque converter lockup clutch.
