GF27.60-P-5160CW Center Shifter Console, Component Description

GF27.60-P-5160CW Center shifter console, component description
- TRANSMISSION 722.6

Component Identification:

Location
The floor shift is located in the center console of the vehicle.

Task
The floor shift is the central control for the driver to influence the shift program of the automatic transmission.

Component Identification:

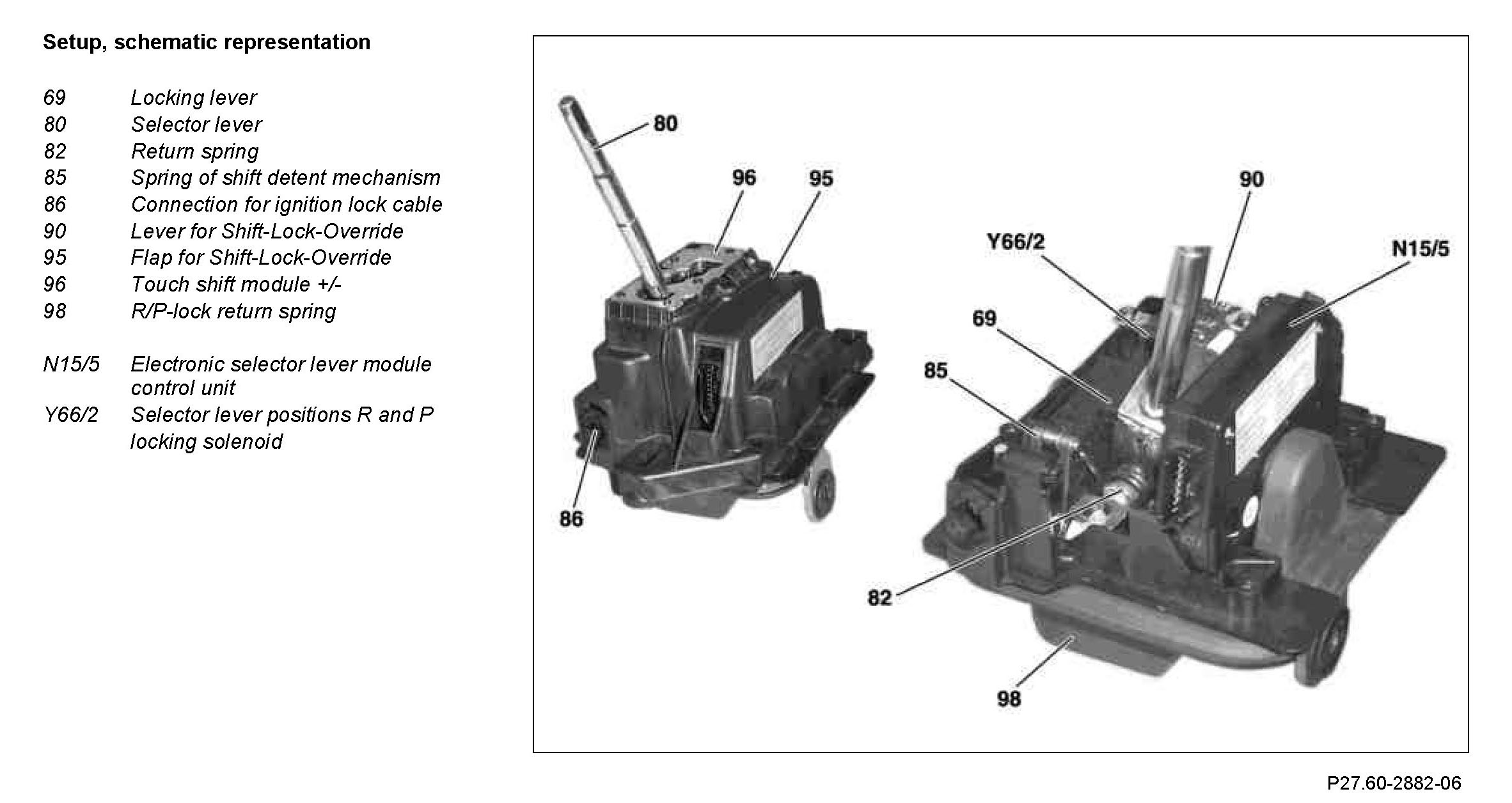

Function
The selector lever is moved and positioned in the shift gate, which is not visible to the driver. All the selector lever positions are detected by the electronic selector lever module control unit, coded and transmitted to the electronic transmission control control unit (N15/3) via the drive train CAN.

In parallel with transmitting via the drive train CAN the selector lever positions "P", "R", "N" and "D" are passed on mechanically to the selection range sensor (Y3/8s1) by means of a shift rod.

Shift ranges "1", "2", "3", "4" and "5", up to those which the electronic transmission control permits an upshift of the automatic transmission, it is possible to shift into selector lever position "D" via a lateral movement of the selector lever (touch shift).
