Solar Sensor: Service and Repair
AR83.40-P-6720SX Remove And Install Sun Sensor

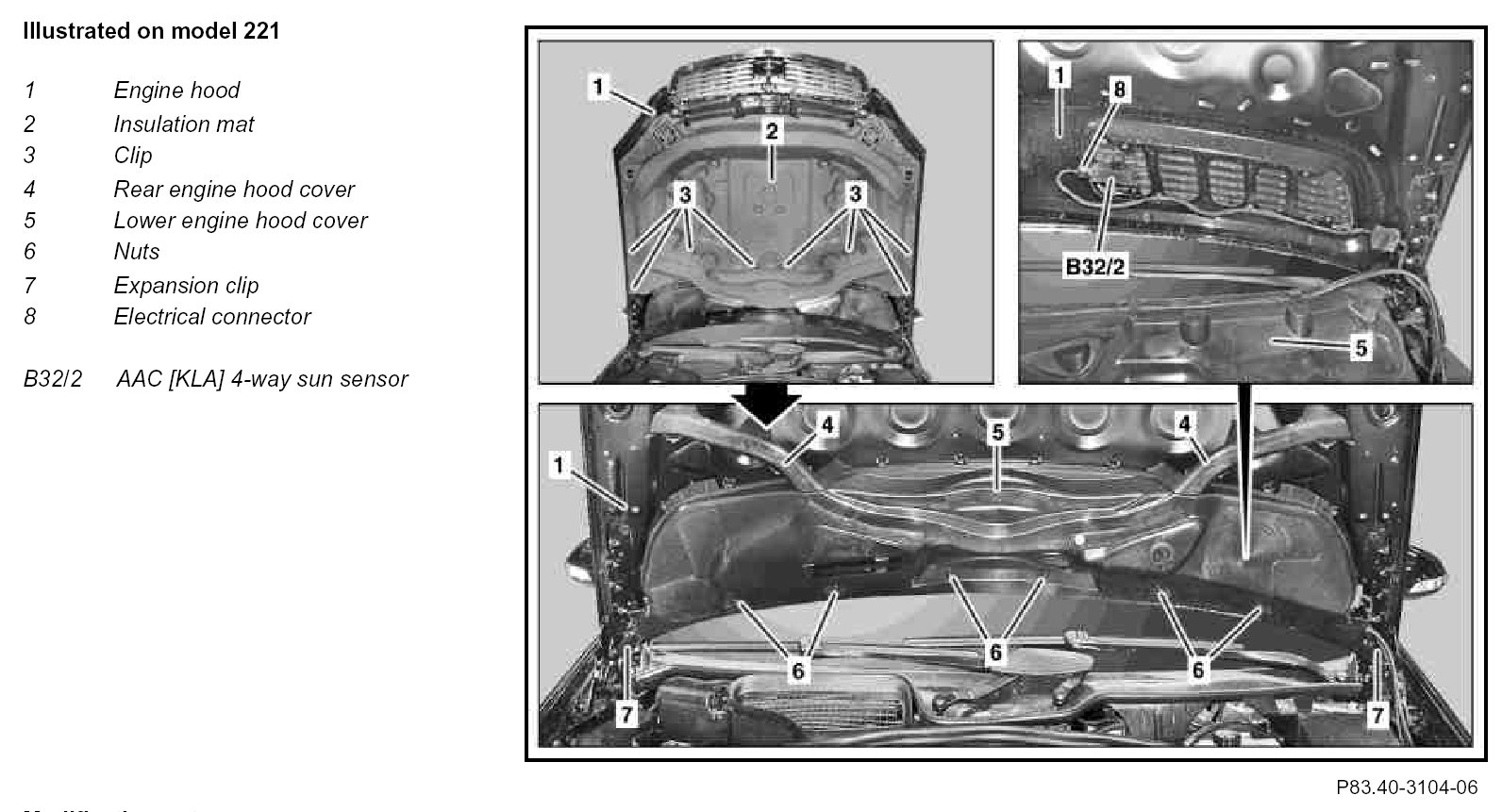

Component Identification:
Modification Notes:

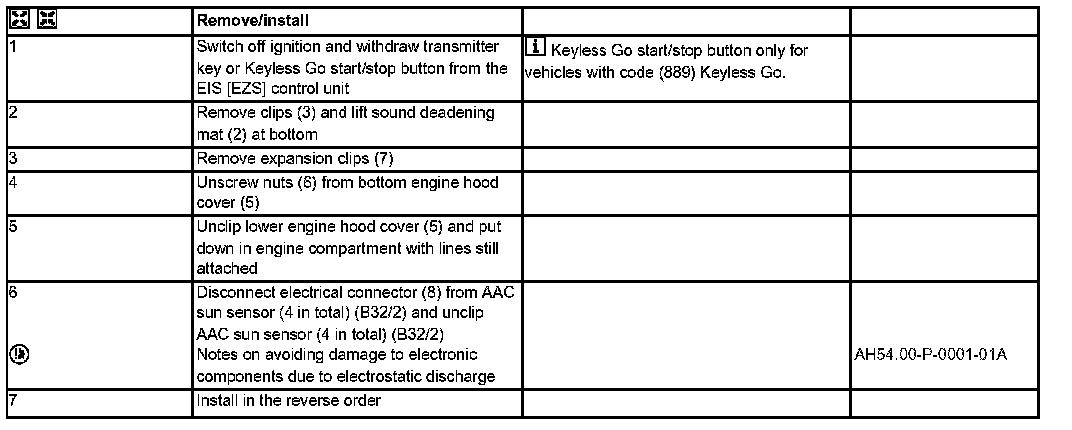

Steps 1 - 7:
