GF54.30-P-2240SX Systems Displayed In Cockpit Central Display, Function

GF54.30-P-2240SX Systems Displayed In Cockpit Central Display, Function

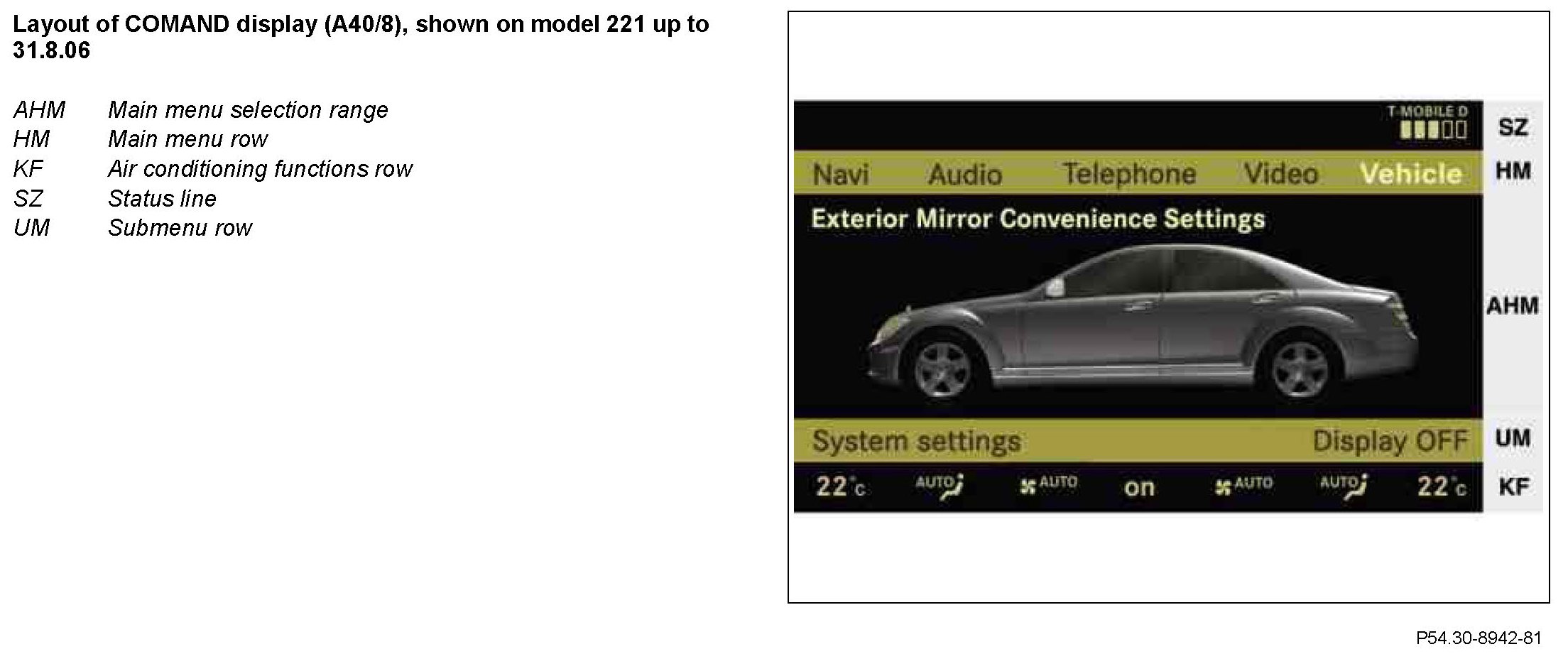

Component Identification:

Menu items in the main menu line
The following systems displayed in the main menu line can be selected in the COMAND display:
^ "Navi"
Menu item for navigation settings
^ "Audio"
Menu item for audio component settings (radio, audio CD/DVD, MP3)
^ "Tel"
Menu item for communication component settings (telephone, SMS, address book)
^ "Video"
Menu item for video component settings (TV, video DVD)
^ "Vehicle"
Menu item for configuring vehicle components which can be operated in COMAND display

Menu items which are not available to the user are displayed with a gray background and cannot be selected.

Climate control
The climate functions line is faded in and switched active depending on the circuit status and system status.
