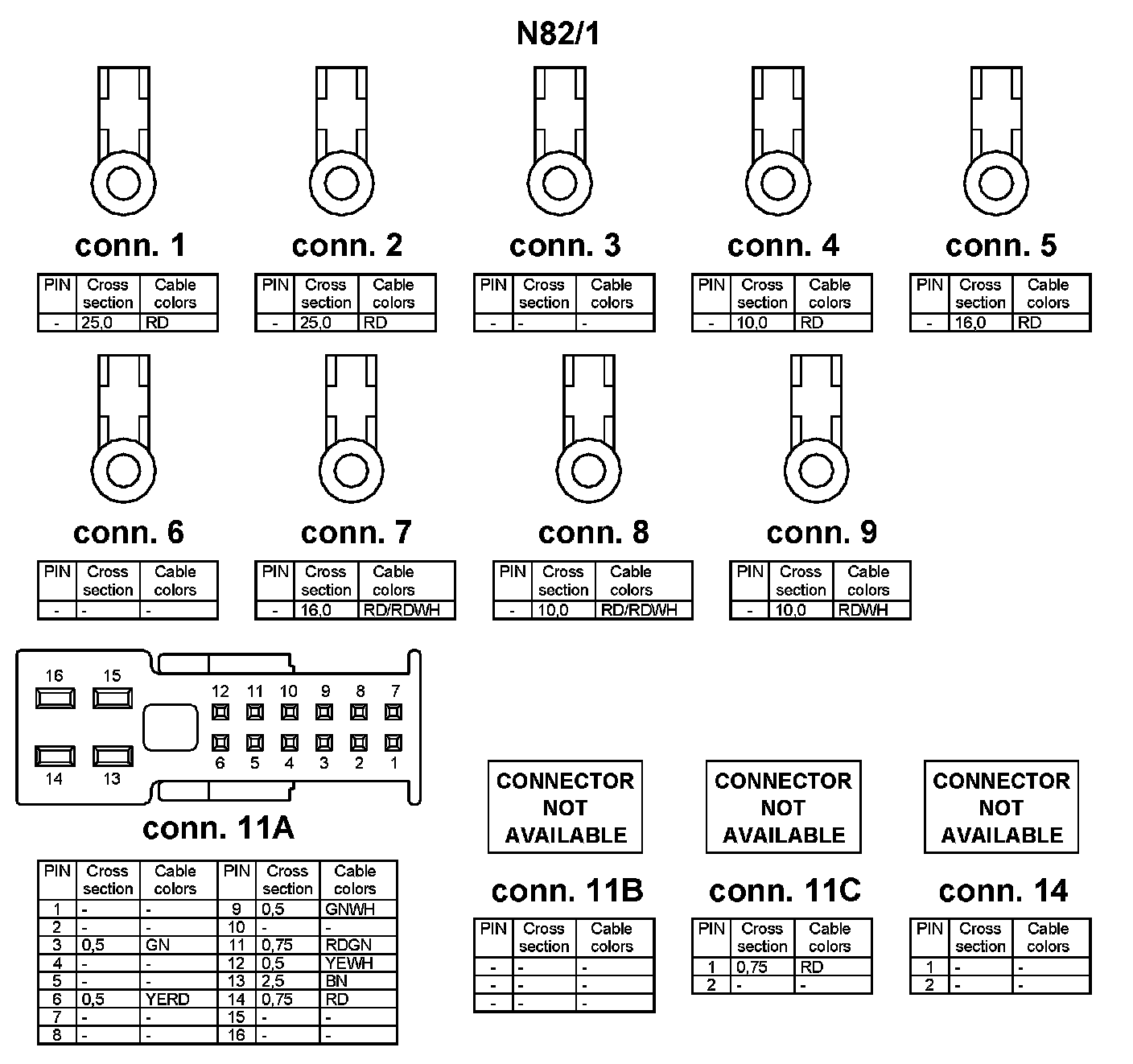

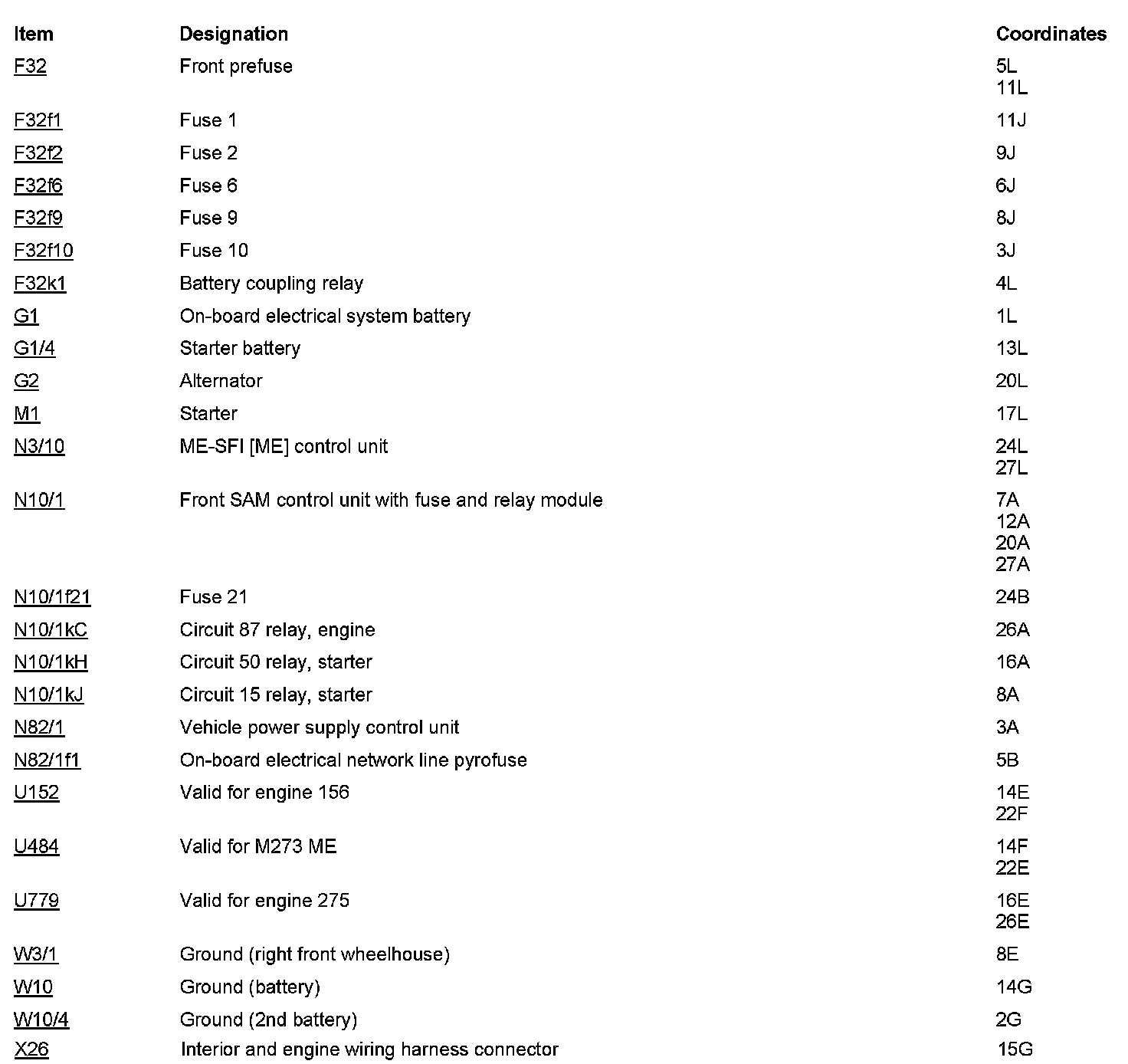

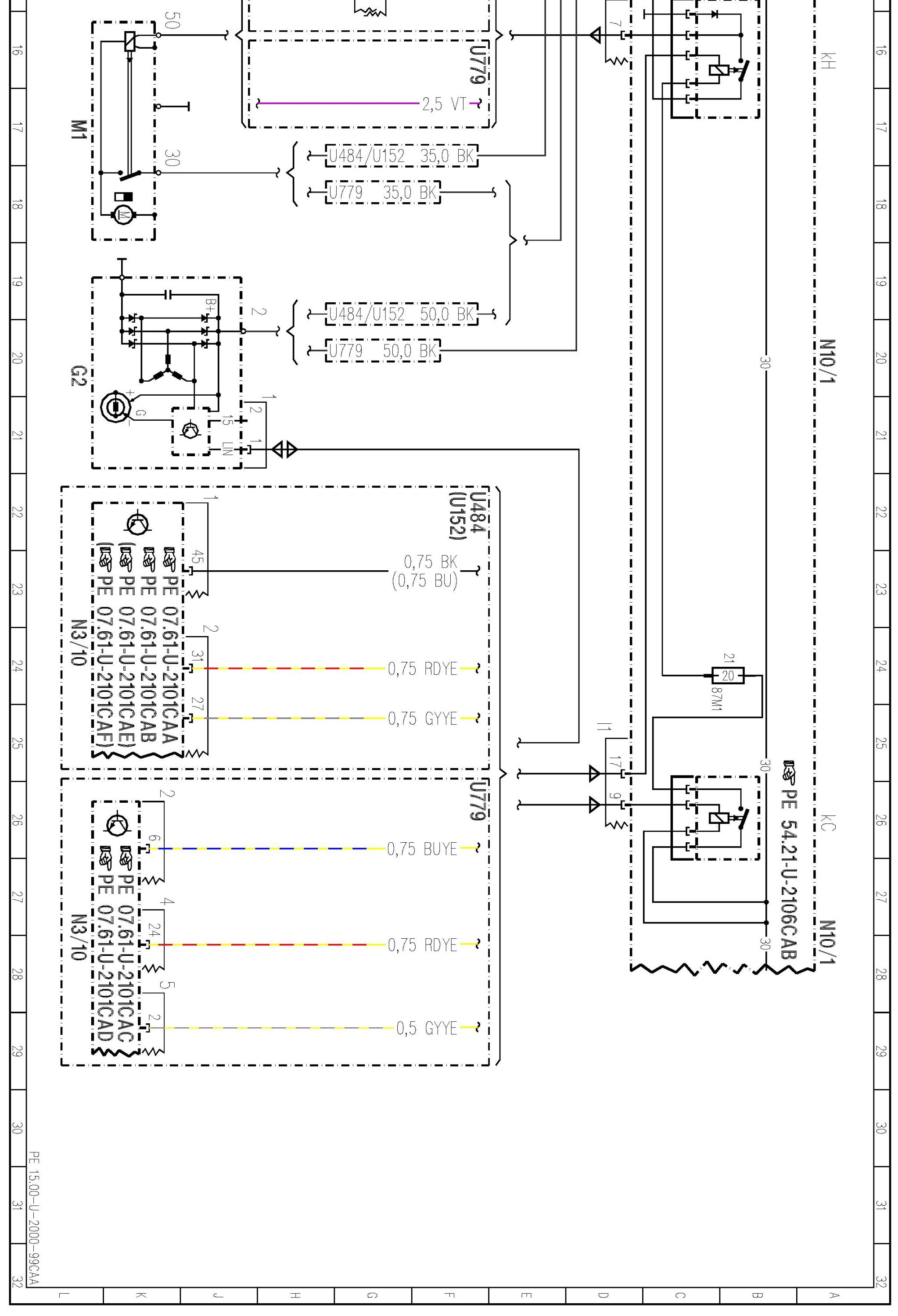

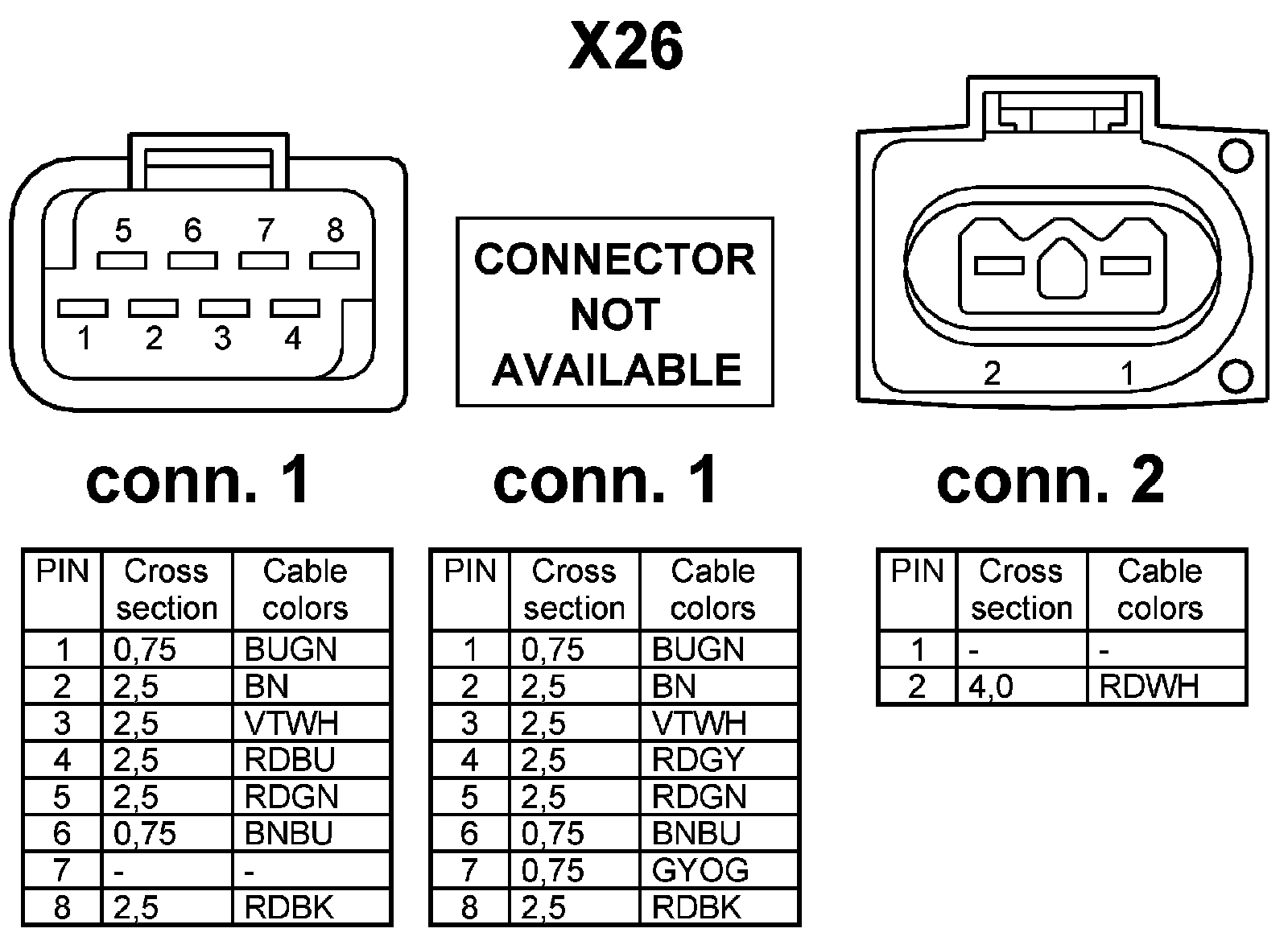

Electrical Diagrams

PE15.00-U-2000CAA Starter, Generator

ENGINE 156.984
- as of 06/01/07 in MODEL 216.377
- up to Model Year 2008
ENGINE 273.961 in MODEL 216.371
- up to Model Year 2008
ENGINE 275.953 in MODEL 216.376
- up to Model Year 2008
ENGINE 275.982 in MODEL 216.379
- as of 06/01/07
- up to Model Year 2008



































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
