Body - Front/Rear Door Stop Is Loose

DTB

Date: September 26, 2008
Order No.: P-B-72.00/57b

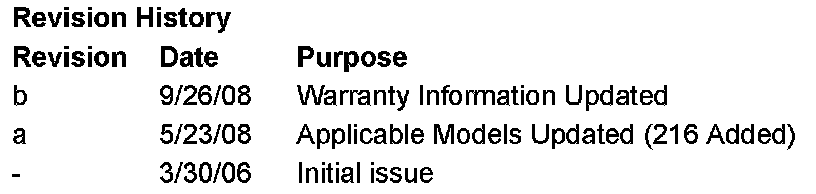

Supersedes: P-B-72.00/57a dated May 23, 2008
Group: 72







SUBJECT: Model 216.371/376/377/379
Model 221.171, VIN Range A009500 to A027500
Door Stop Is Loose

If you receive customer reports in the above model vehicles that either the front or rear door stop is loose because the plastic retainer (Figure 1) at the rod end has broken, the plastic retainer is now available as a spare part. Carefully align the new retainer with the socket when installing. It is no longer necessary to replace the complete front or rear door stop.

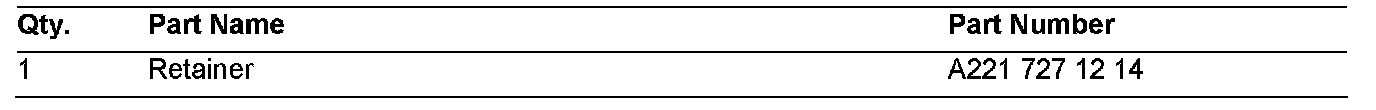

Parts Information

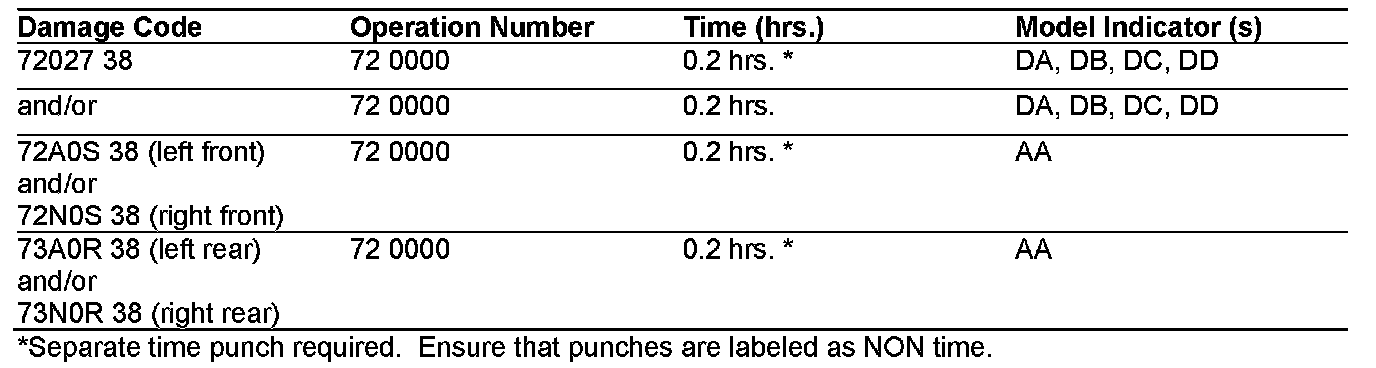

NOTE: The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on September 26, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.

In Case of Warranty

Operation: Retainer - door stop (specify location), replace (72-0000)
