Body - Rubbing/Rattling Noises When Operating Sunroof

Date: September 4, 2008

Order No.: P-B-77.20/52a

Supersedes: P-B-77.20/52 dated Feb. 21, 2007

Group: 77

Revision History

Revision Date Purpose

a 9/4/08 Applicable Models (216.377/379/386) and Warranty Information Updated

- 01/07/06 Initial issue

SUBJECT:
Model 216.371/376/377/379/386

Rubbing/Rattling Noise When Opening and Closing Tilting/Sliding Roof

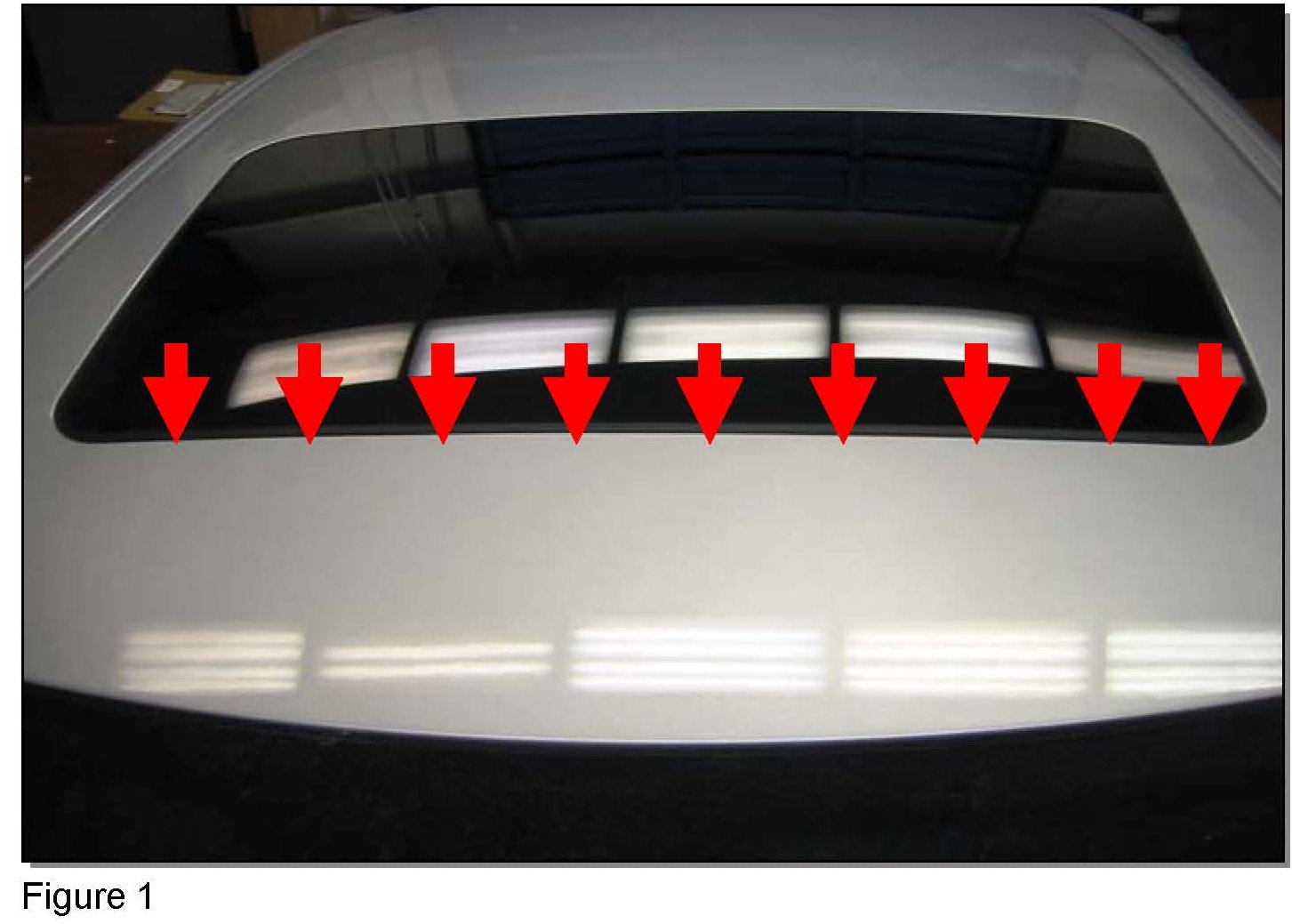

If you receive customer reports in the above model vehicles of a rattling/rubbing noise coming from the tilting/sliding roof area, this may be caused by friction between the rubber seal and edge of sunroof opening during operation. To resolve, apply special sliding compound lubrication oil (A000 989 36 60) to the front edge of the glass panel rubber seal (Figure 1). The special sliding compound lubrication oil is included in the Noise Damping Service Kit (A000 582 03 50).

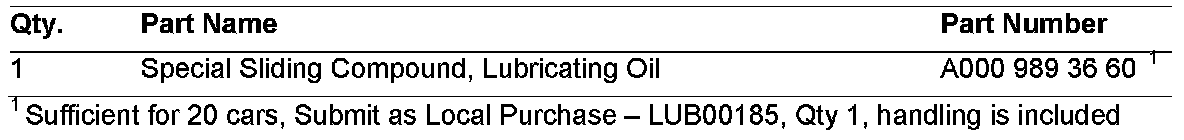

Parts Information

Note:

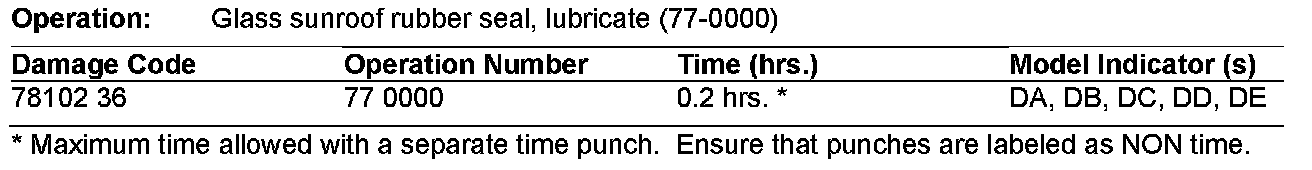

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on September 4, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table.
